7.8V 0.3Ω
Test item Standard Test condition
Main SW
・
OFF
NONE of operational buttons are pushed.
200 μ A or less ref. above.
AF-S DX ED 18-55/3.5-5.6G
、
EV12
Main SW
・
ON (Half-release timer OFF) 200 μ A or less
Main SW
・
ON (Half-release timer ON) 200 m A or less
Main SW
・
ON (TFT ON) 300 m A or less
《
Inspection standards
》
Caution
＊
When the consumption current value is measured, backup battery must be fully charged.
It takes approx 3 days to fully charge the battery.
Ａ
※
Cut out the power connection section of EP-5 and use it.
※
EP-5
＜
Measurement of Consumption current value
＞

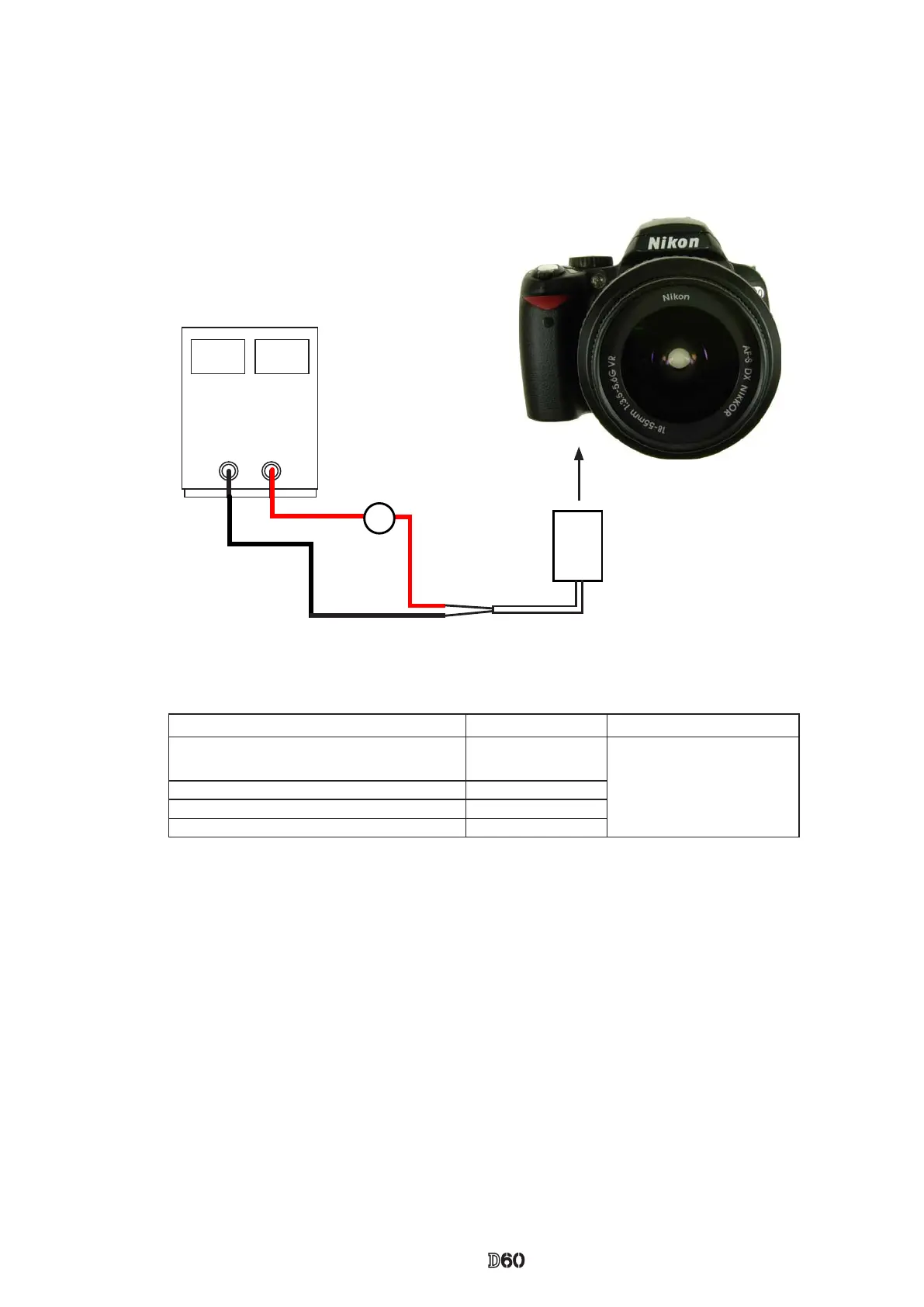

When this camera is used for measuring the consumption current value, connect the power connector (EP-5) and
install wiring as follows for the measurement.
