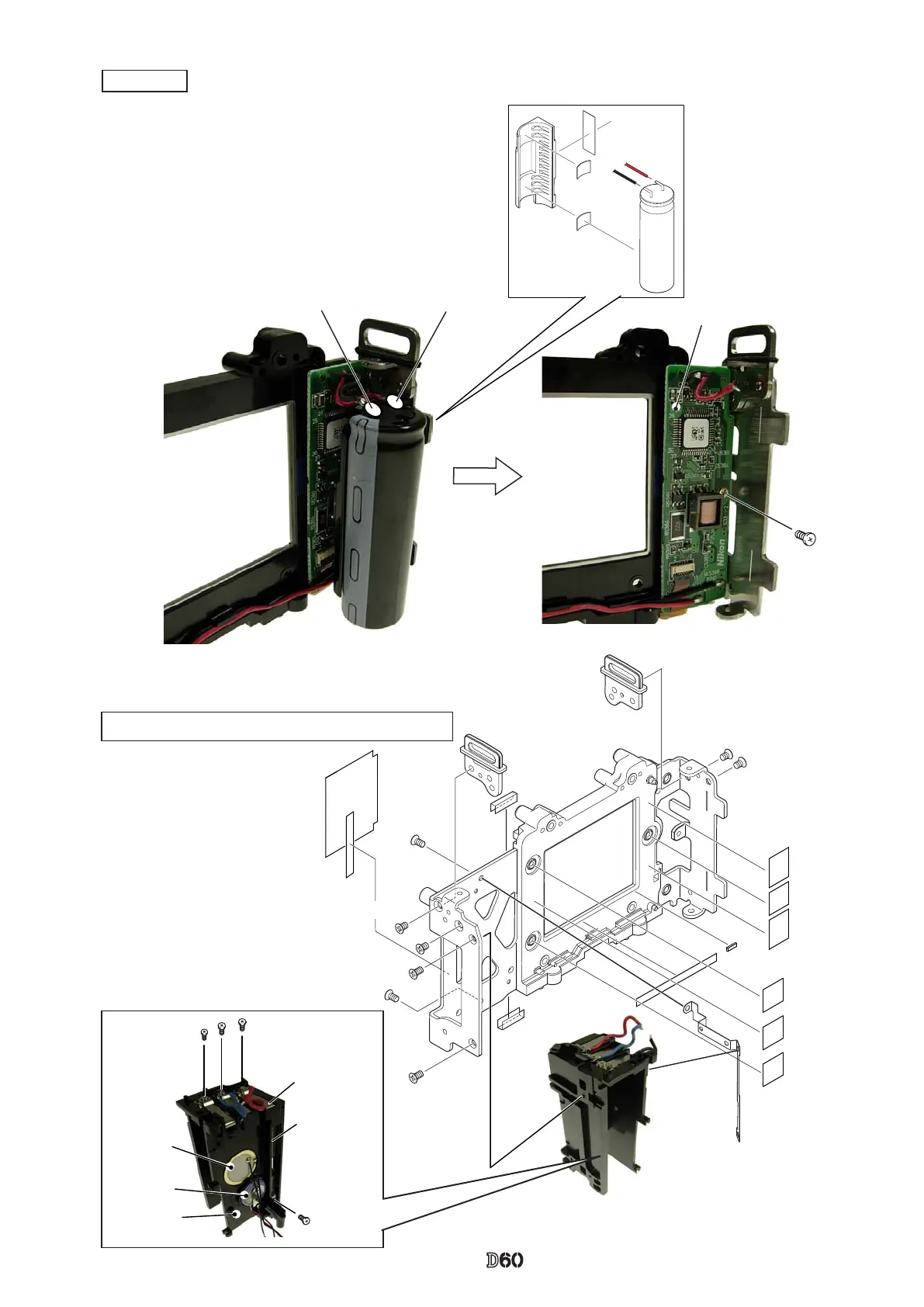

Battery box / Eyelet ring unit / Other small parts
#687
SB-PCB
Black:SB-PCB Red:SB-PCB
Main condenser unit
#142
#141×2
#1043
#1076
#1077
Main condenser
#1043
#140
・
Unsolder the two wires of the main condenser unit. the two wires of the main condenser unit.
・
Remove the main condenser that is attached on with the
adhesive double-coated tape.
・
Take out the screw (#687).
・
Remove the SB PCB.
SB PCB
#694×2
#694×2
#143
#615×4
#B145×2
#159
#149
TA-0027(4×37)
TA-0026
(9×9)
#450
#447
TA-0005×2
(7×15)
#143
#143
TA-0003×2(6×11)
#607×3
#157×3
Battery
drop-
proof
spring
#607
Battery box
Buzzer unit
Backup battery
Battery box
