Nikon D60 - DC;DC Pcb; Bottom Base Plate Unit

- Ｄ  ･ -
logo_Q0650_forGraphic
071004_Gdesign_ito
VBA21001-R.3753.A
Red: Relay-PCB
Black: Relay-PCB
#691
#691
#616×5
Bottom base plate
unit (#B66)
・

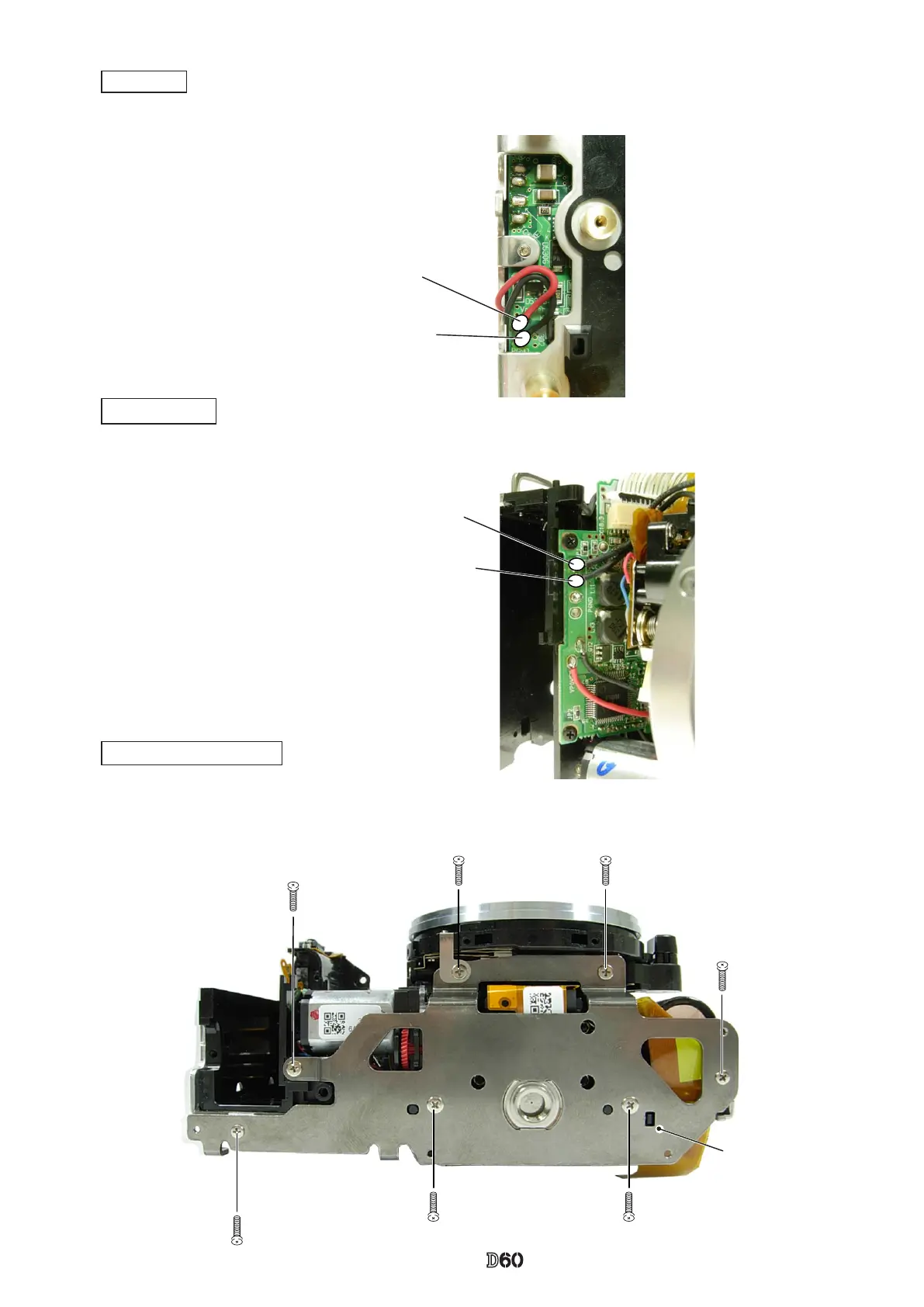

Unsolder the two wires (connected from Relay-PCB).
SB PCB
DC/DC PCB
・
Unsolder the two wires (connected from Mount GND plate and Front body FPC).
Bottom base plate unit
・
Take out the ve screws (#616).
・
Take out the two screws (#691).
・
Remove the bottom base plate unit (#B66).
Black: Mount GND plate
Black: Front body FPC
