Nikon D60 - Page 47

- Ａ 0 ･ -
logo_Q0650_forGraphic
071004_Gdesign_ito
VBA21001-R.3753.A
Adhesive Super X
Adhesive Super X
#635×2
#B367
#326
#5386
#387
#6027

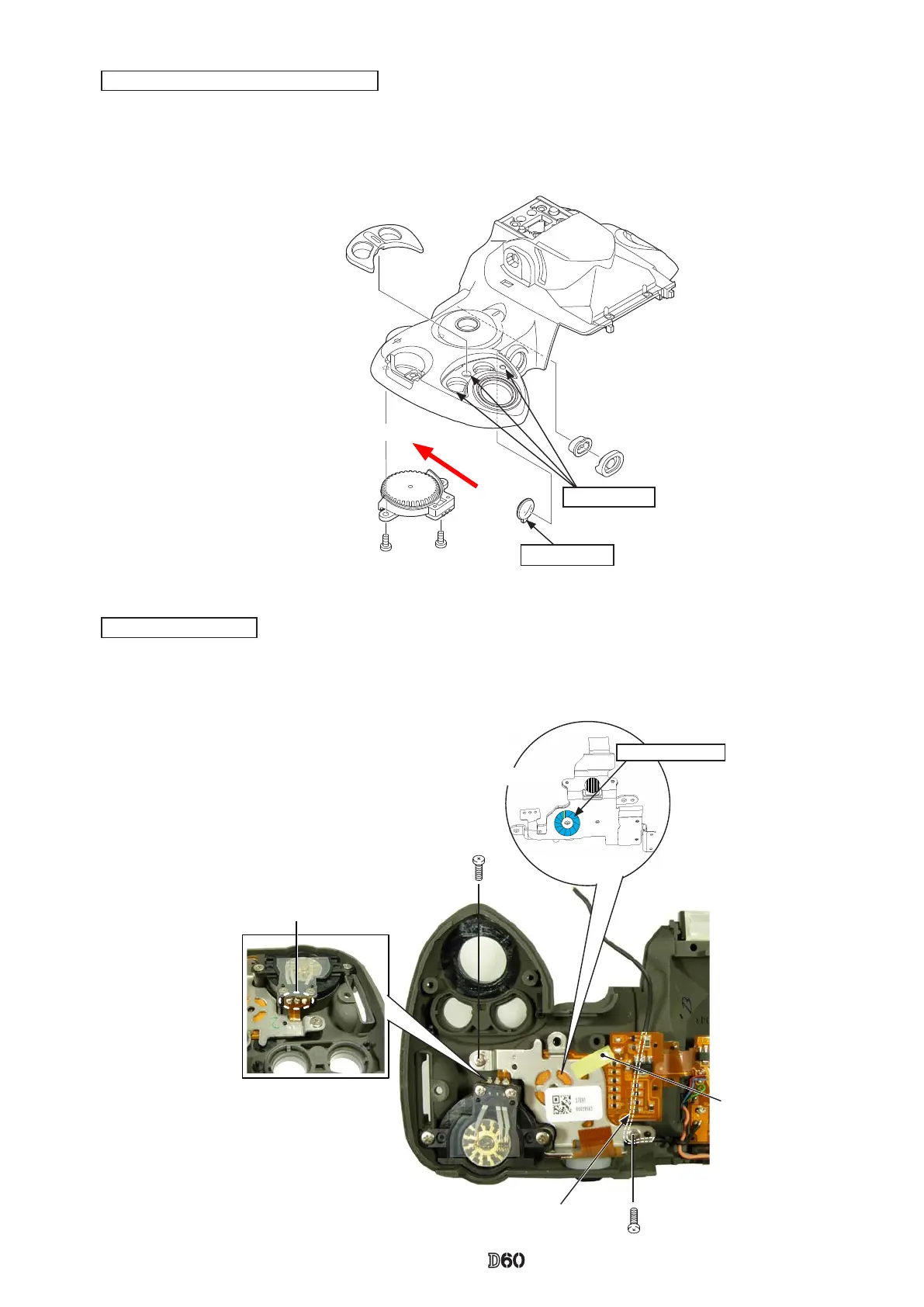

Direction for positioning
・
Fix the C/D unit (#B367) with two screws (#635).
・
Attach [#387] and AF/AE lock button (#5386).
・
Put the wire (#1071-1) in position as below.
・
Mount the top cover FPC unit (#B2007-1), and x it with two screws (#635).
・
Make three solder bridges.
・
Attach [#956].
#635×2
Soldering bridge×3
#1071-1
#B2007-1
#956
C/D unit / Buttons / Other small parts
Grease: LEN317A
Top cover FPC unit
INC
