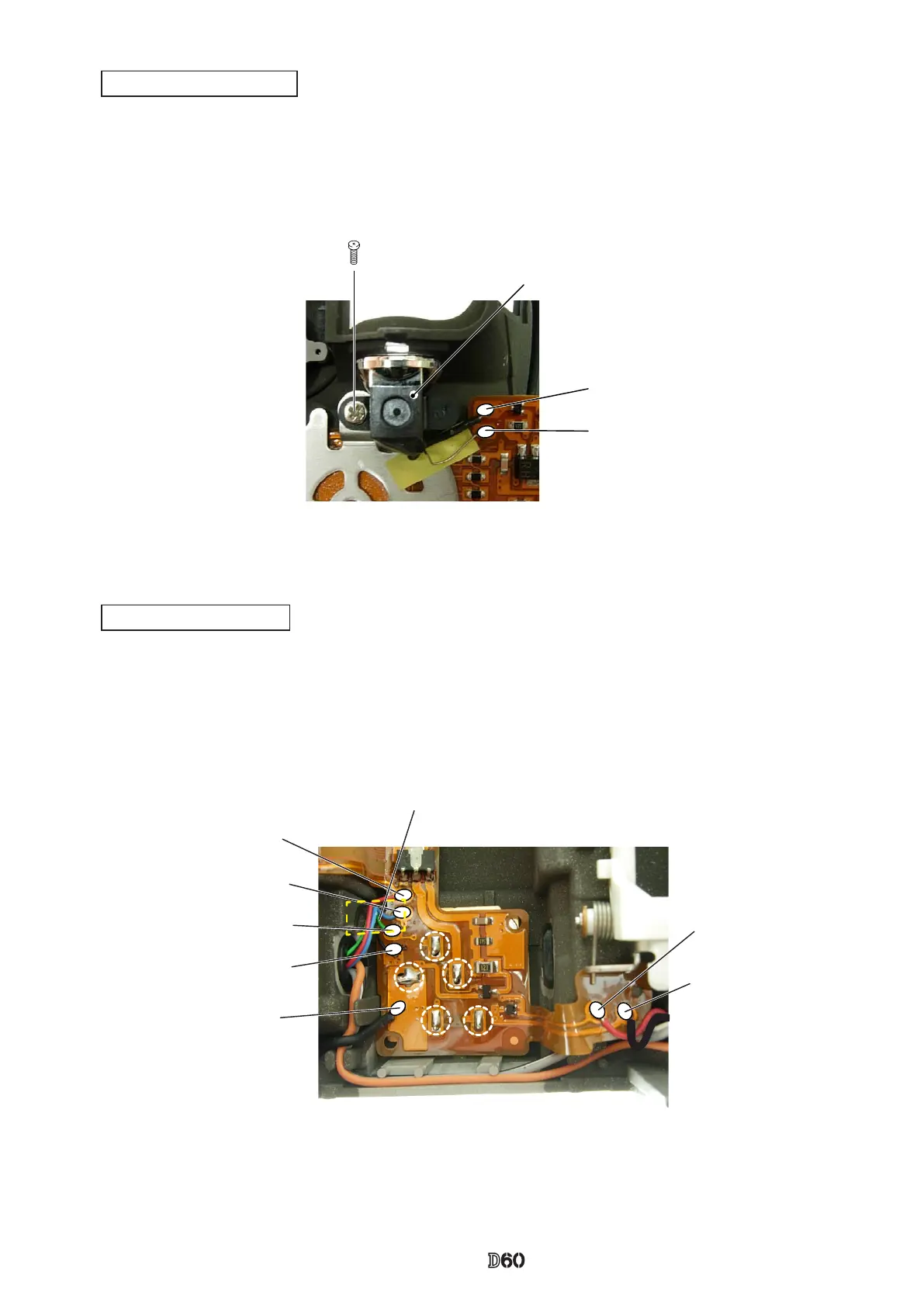

AF-assist illuminator unit (#B325)
Black : AF-assist illuminator unit
Uncoated wire: AF-assist illuminator unit
#0
・
Mount the AF-assist illuminator unit (#B325), and x it with the screw (#608).
・
Solder the two wires (connected from AF-assist illuminator unit).
AF-assist illuminator unit
・
Make ve solder bridges.
・
Solder the seven wires (connected from SB lower case unit, DC/DC PCB and SB release base unit).
・
Attach [#956].
Top cover FPC / Wiring
Black: SB release base unit
#956
Red: SB lower case unit
Blue: SB lower case unit
Green: SB lower case unit
Black: SB lower case unit
Black: DC/DC PCB
Red: SB release base unit
