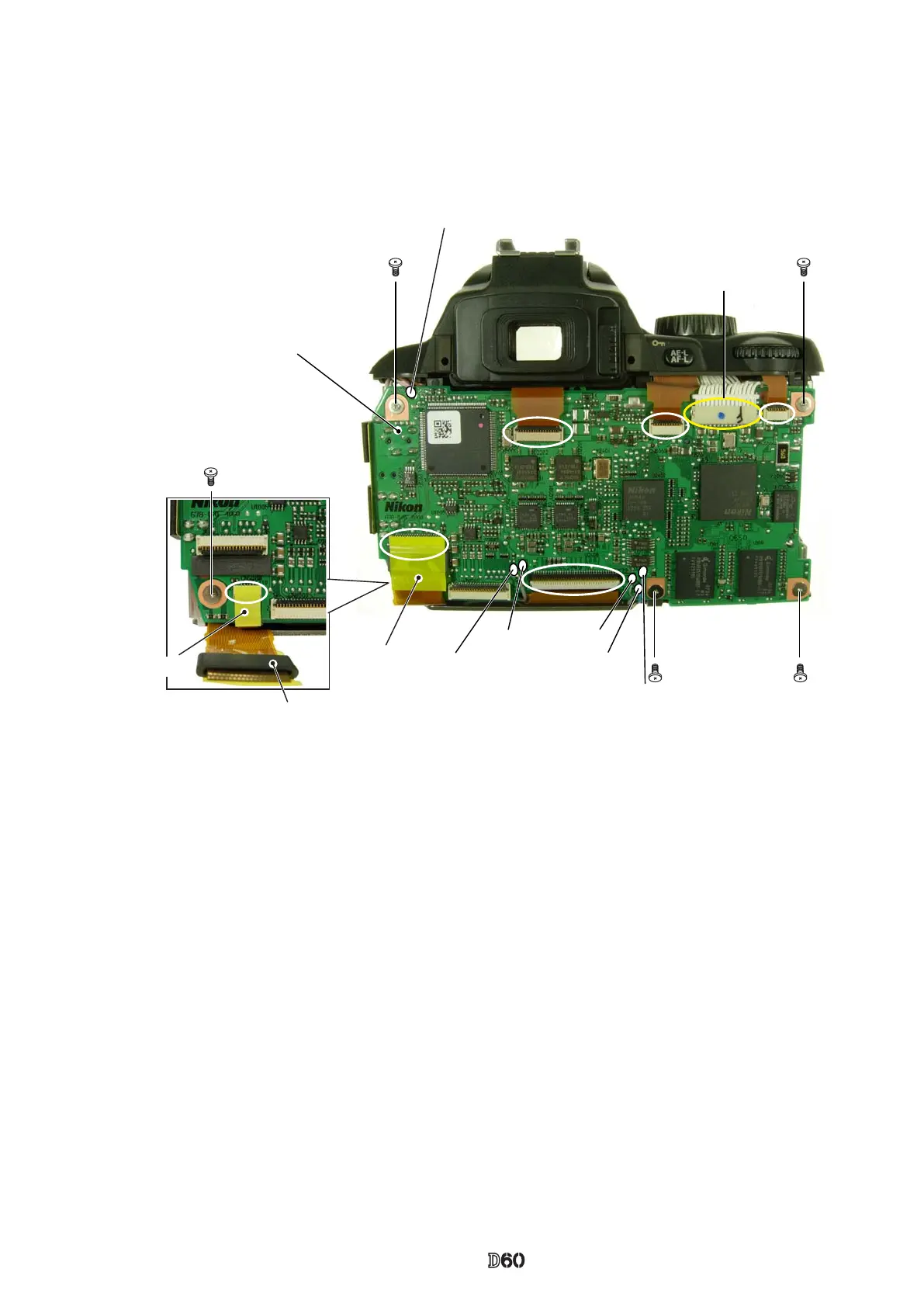

Connect the harness to the connector.
・
Tighten ve screws (#663).
・
Solder six wires (two connected from Relay-PCB/Backup battery, two coated and two uncoated).
・
Connect the six FPCs to each connector
Uncoated
Blue: Backup battery
Coated
Pink:Relay-PCB
Uncoated
Coated
#483
#1053
TOGO-PCB (#B2001)
Harness
#663×5
TA-0025(5×8)
INC
