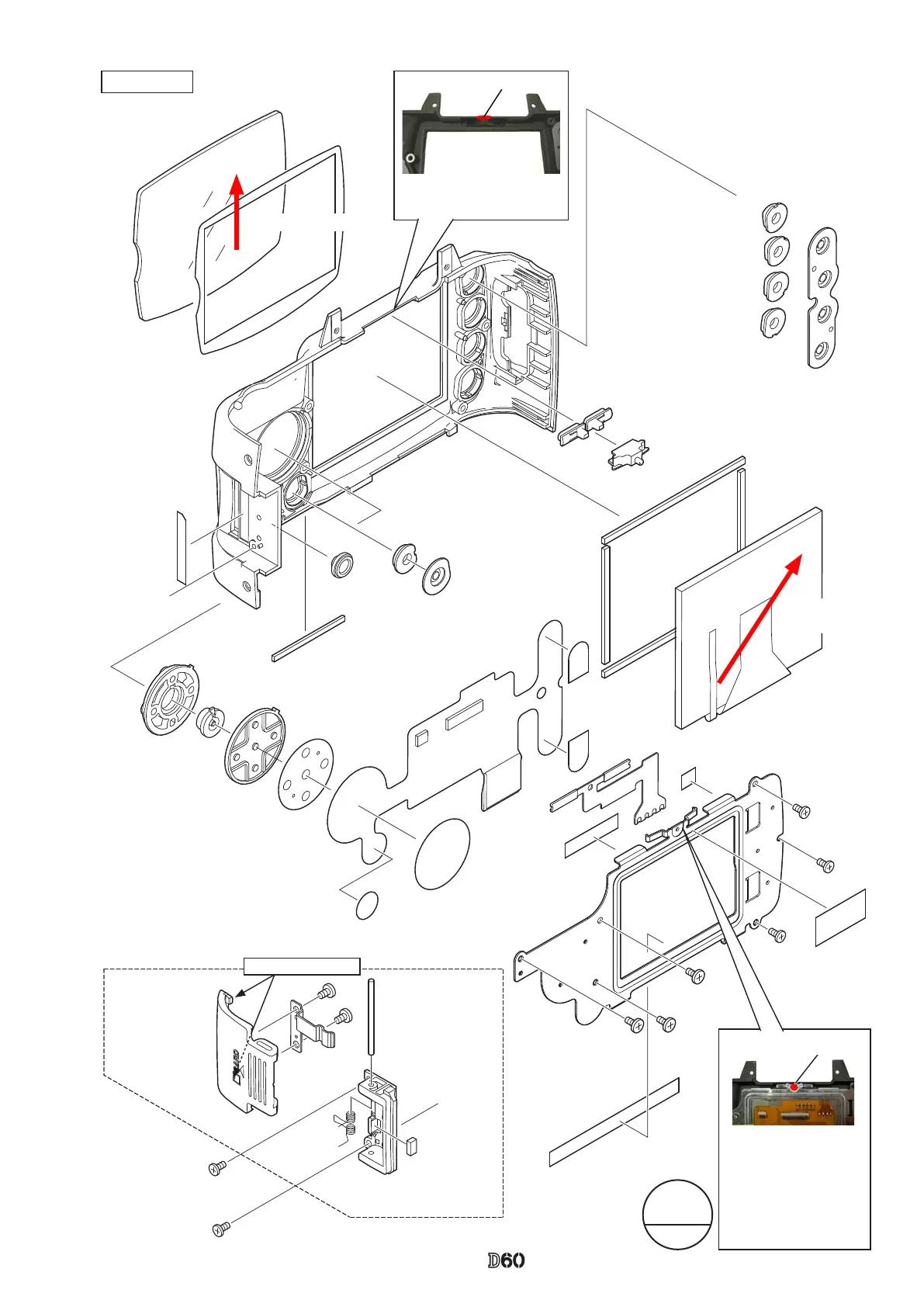

Nikon D60 - Page 58

- Ａ 31 ･ -
logo_Q0650_forGraphic
071004_Gdesign_ito
VBA21001-R.3753.A
Rear cover
Caution : The grease must not be squeezed outside.
A
A
#408
#402
#403
#5418
#5412
#448
#753
#423
#5429
#1037
#405×2
#404×2
#426-1
#425-2×2
#421
#5427
#5426
#5425
#5424
#670×3
#B5431
#5431
#5681×2
#433
#5432
#407
#630×3
#750
#406-2
#410
#409-1
#1017
#414
#413
#453
#452
#451×2
#1016
#6401-3
Direction for
positioning
Direction for positioning
Grease: CFD409Z
Changed page
△× 2
△
(Addition)
Ｍ
サービス
計画課
Mar.19.2008
apply "super X"
・
Attach the LCD-monitor
retainer plate by fitting its
hole and FPC hole with the
protrusion of the mold.
・
Fix the TFT retainer plate
with the screws.
・
Apply "Super X".
Put [#426-1] in [#6401], and
join them with the adhesive.
Adhesive:Alon Alfa
△
(Addition)
INC
