Part Name and Function
10

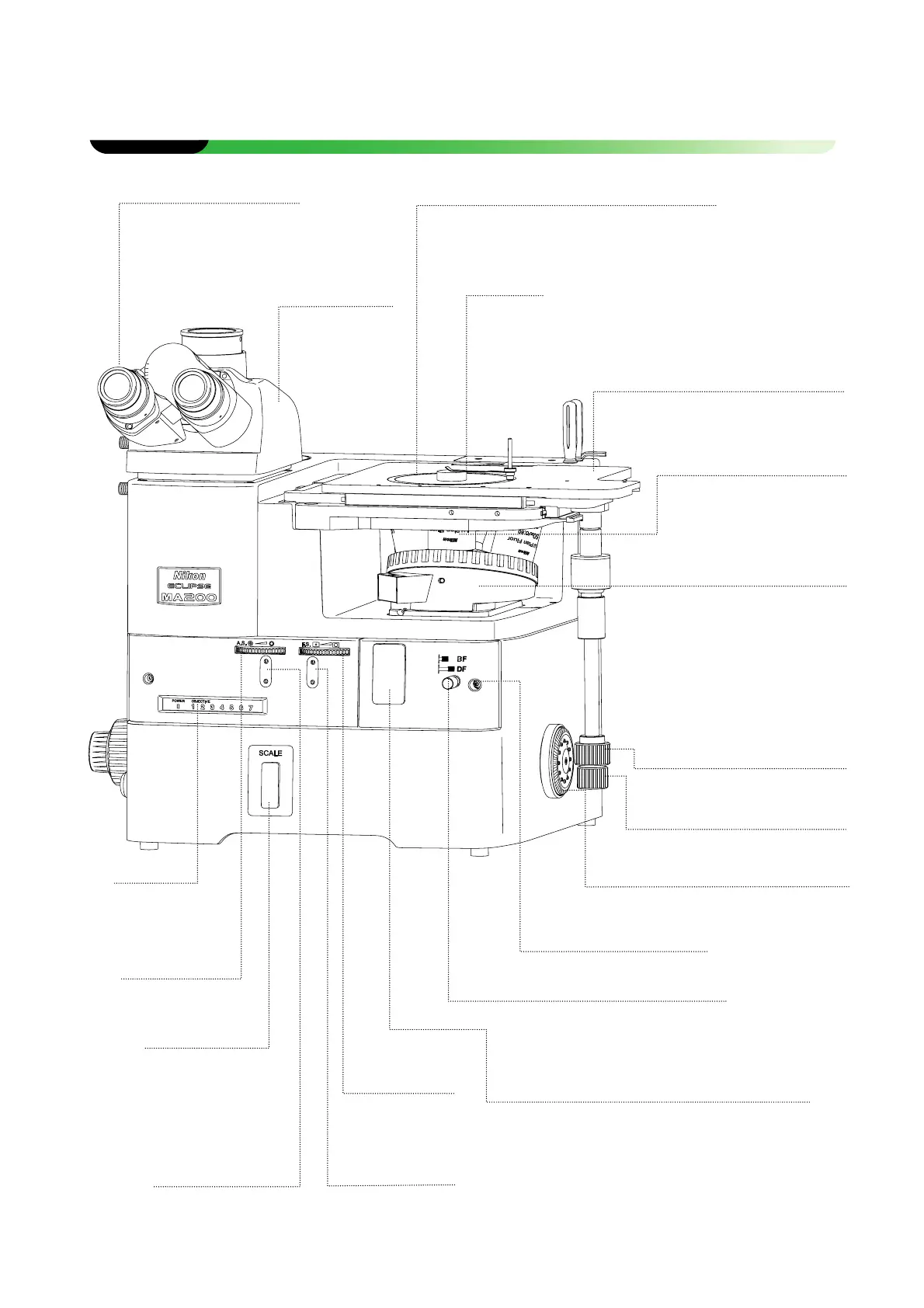

Figure 1.1-1 Front view, Right-side view
Eyepiece tube
(Figure illustrates
the MA2-TI3.)
Binocular eyepiece
may also be used.
(Refer to 3.4, 3.5,
and 3.6.)
Eyepiece
10X, 12.5X, 15X (and 10X
are equipped with the
mask eyepiece.)
Display
(Refer to Figure
1.1-2.)
Scale slider slot
(Refer to 3.20.)
ttach the grain
scale slider or scale
slider.
Field diaphragm
dial
(Refer to 3.11.)
Aperture
diaphragm dial
(Refer to 3.12.)
Operation port for the polarizer/analyzer unit
and the fluorescent unit
(Refer to 3.13 and 3.19.)
To perform the polarization microscopy, differential
interference contrast microscopy or fluorescent
microscopy, remove the front cover to attach the
desired unit for the microscopy to be performed.
BD field changeover lever
Press (BF): Bright-field
Pull (DF): Dark-field (Refer to 3.3.)
Nosepiece (Figure illustrates the
MA2-NUI5.)
Quintuple, sextuple and septuple
revolving nosepieces may be used.
(Refer to 3.9.)
The DIC slider, analyzer slider etc.,
can be attached, depending on the
revolving nosepiece used.
Objectives
(Refer to 3.9.)
Front-cover fixing bolt
Sample clip
Stage (Figure illustrates the MA2-SR.)
(Refer to 3.8.)
Aperture diaphragm
centering holes
Field diaphragm
centering holes
Sample holder
The stage is equipped with the standard
sample holder (with a sample clip). (Refer to
3.8.)
Stage (forward/backward)
movement knob for the Y
direction
Stage (left /right) movement
knob for the X direction
Fine focus knob
(Refer to 3.7.) Located also on the left.
