(3) Configuring the Button Functions (See DS-L3 Chapter 6 “4 Configuring the Functions of
Buttons”.)
Change the function of buttons equipped with the Ni-E
microscope and the ergo controller.
The function of buttons located on the DS-L3 screen can be
selected as desired here.
(3-1) Ni-E microscope button
(See DS-L3 Chapter 6 “4.2 Configuring Buttons on the
Microscope”.)
Change the function of buttons equipped with the Ni-E
microscope.
[SETUP MENU] → [BUTTON FUNC]
Configuring button functions
■ FUNCTION button
(See DS-L3 Chapter 6 “4.2.1 Setting the Function of the
Function Buttons”.)
Specifying the FUNCTION button [Function] setting
<Factory setting>
Buttons 1 and 2: Rotates the condenser clockwise and
counterclockwise.
Buttons 3 and 4: Rotates the excitation filter wheel clockwise
and counterclockwise.
Buttons 5 and 6: Rotates the motorized barrier filter wheel
clockwise and counterclockwise.

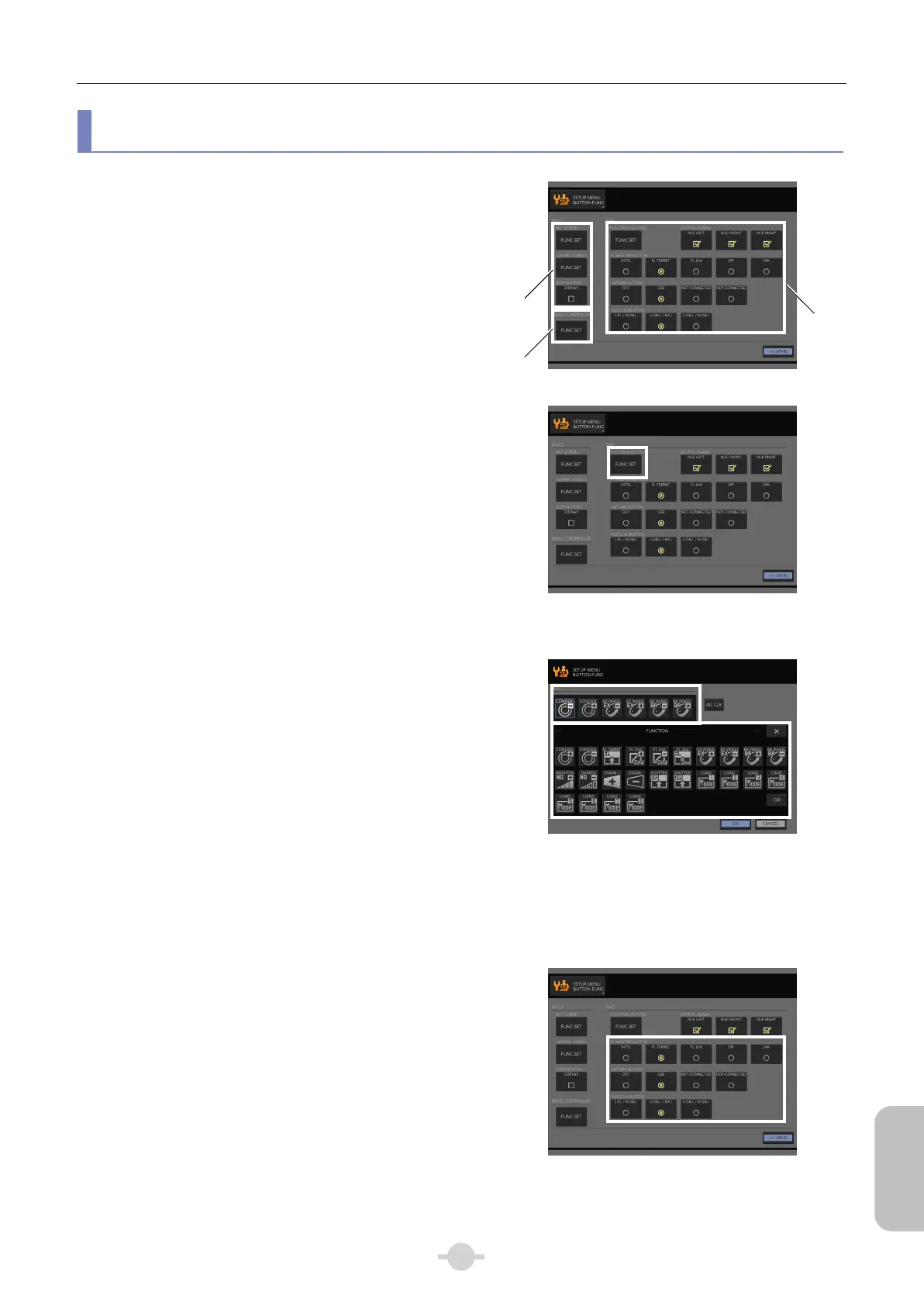

Press the [FUNC SET] button under [FUNCTION BUTTON] to
specify the button number and to select a function.
Selecting the FUNCTION button function
(Motorized devices)
■ FL SHUTTER, CAPTURE and CW/CCW buttons
(See DS-L3 Chapter 6 “4.2.2 Changing the Motorized Shutter Operated with the FL SHUTTER Button”.)
(See DS-L3 Chapter 6 “4.2.3 Changing the Digital Camera Operated with the Microscope’s CAPTURE Button”.)
(See DS-L3 Chapter 6 “4.2.4 Changing the Motorized Device to be Operated with CW/CCW Button”.)
Function setting of FL SHUTTER, CAPTURE,
and CW/CCW buttons
(3-3)
(3-1)
(3-2)
