Epi-fluorescence
Microscopy
Preparation Focusing Microscopy
Epi-fluorescence
Microscopy Procedure
1234567891011121314 ■ ■ ■ ■ ■
Switch from Phase Contrast Microscopy to Epi-Fluorescence Microscopy
Epi-fluorescence and phase contrast methods can be used concurrently to cover the shortcomings of each. For
example, when locating the target, phase contrast microscopy can be used instead of epi-fluorescence
microscopy which tends to cause decoloration of the specimen.
This section provides tips for switching from phase contrast microscopy to epi-fluorescence microscopy when
devices required for epi-fluorescence microcopy and phase contrast microscopy are attached. Precautions on
concurrent use of the two methods are also noted. Also see “6 Phase Contrast Microscopy Procedure”.

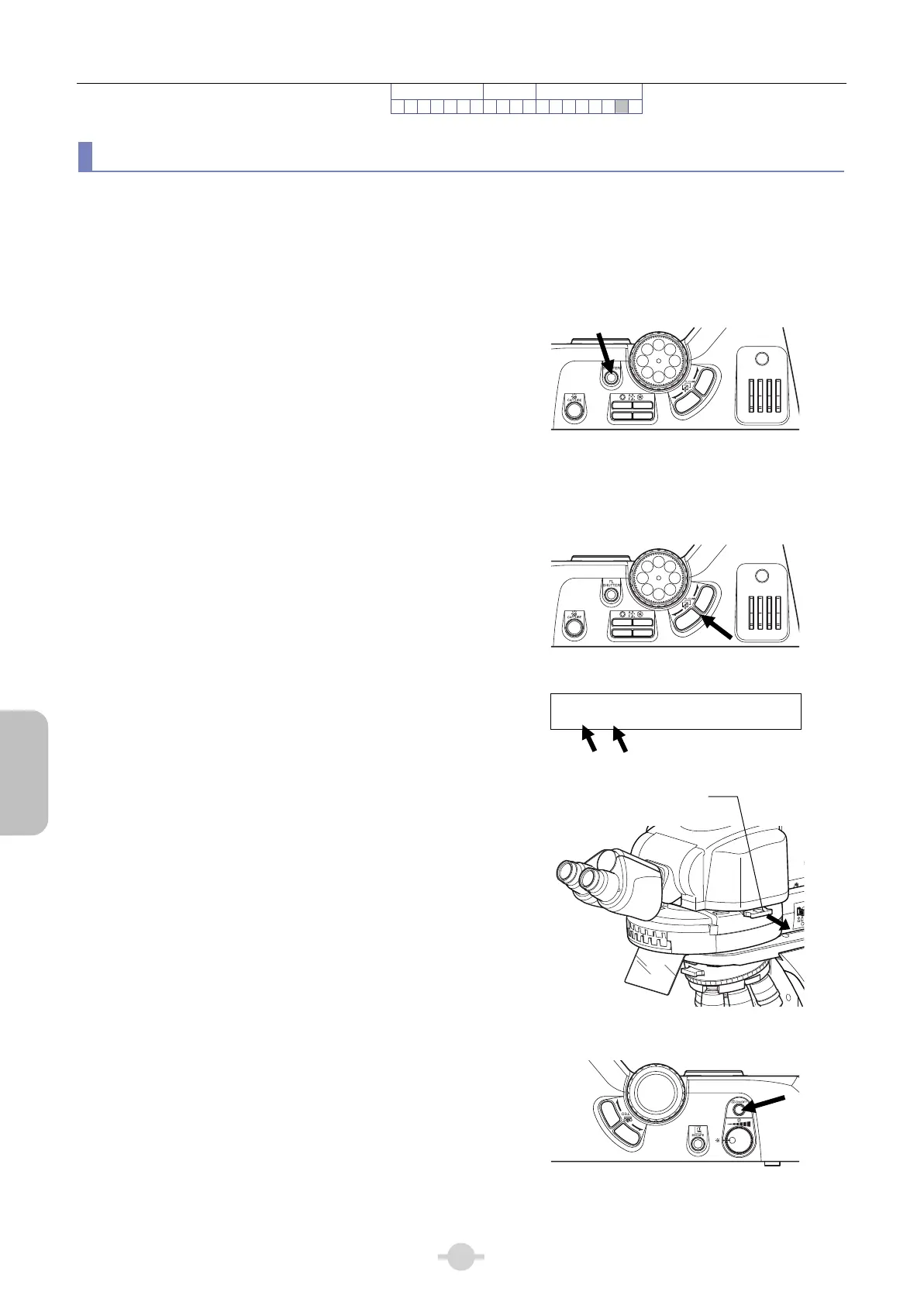

(1) When turning on the power switch at the beginning of “6
Phase Contrast Microscopy Procedure”, keep the
power of the HG precentered fiber illuminator for
epi-fluorescence illumination off.
Check that the epi-fluorescence illumination path
shutter is closed.
The shutter is closed when the [FL SHUTTER] button is
lit.
ND
8
ND
32
OUT
IN
NCB
11
Closing shutter
(2) The position of the condenser turret is set to [OPEN]
bright-field position in procedure 6 in “6 Phase Contrast
Microscopy Procedure”, but
• Remove the filter cube from the optical path and
set in empty position.
ND
8
ND
32
OUT
IN
NCB
11
Removing the filter cube
PF__2x____Z:_____0.000um
OPEN
'
C _____ND_ 1
'
C __EPI:C
Empty position Shutter closed
• If the FL/DIC analyzer slider is in the optical path,
remove it from the optical path.
The slider is removed from the optical path by
pulling it out by one click-stop from the depressed
state.
Focus on the sample by bright-field and adjust the
optical system in this state.
1
2
A
λ
F. S TOP
2
3
4
5
6
50
60
70
Removing the FL/DIC analyzer slider
(3) When phase contrast microscopy is finished, go to
epi-fluorescence microscopy.
• Press the dia-illumination ON/OFF switch to turn of
the lamp and make the diascopic image disappear.
Dia-illumination lamp OFF
NI-FA FL/DIC
nalyzer Slide
Lit
To Next Page
