154Service Manual – SC5000 24 - Electrical System

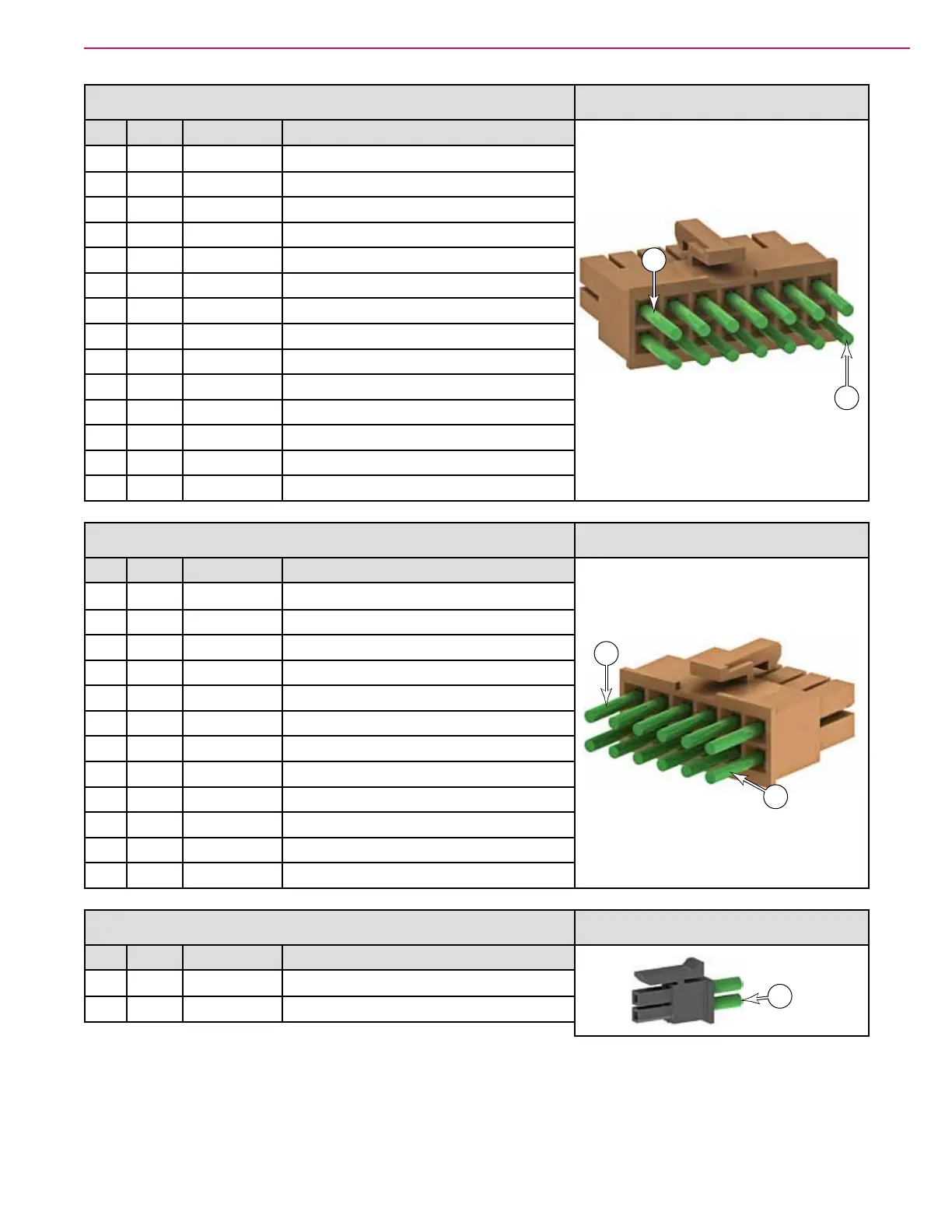

J2 Main Machine Controller 662014113322
Pin# Wire Color Function
14
1
1
2
3 W115 BLU-YEL Solution Level +5V
4 W125 BRN
5 W108 BLU-WHT
6 W030 GRN
7 W107 GRY-BLU
8
9 W120 GRY-BLU Solution Level Return
10
11
12
13
14 W ORG +12V Out
J3 Main Machine Controller 662012113322
Pin# Wire Color Function
12
1
1 W133 BLK
USB Ground
2 W132 GRN-WHT USB+
3 W131 WHT-BRN USB-
4 W130 RED USB +5V
5 W104 BLU-PNK Smart Key In
6 W248 RED Power Button In
7
8
9 W138 YEL CAN-1 H
10 W139 GRN CAN-1 L
11 W136 GRN-BLK CAN-0 L
12 W135 YEL-BLK CAN-0 H
J4 Drive Controller Brake 794617-2
Pin# Wire Color Function
1
1 W176 GRY Brake Ground
2 W175 BLU Brake +36V
