155Service Manual – SC5000 24 - Electrical System

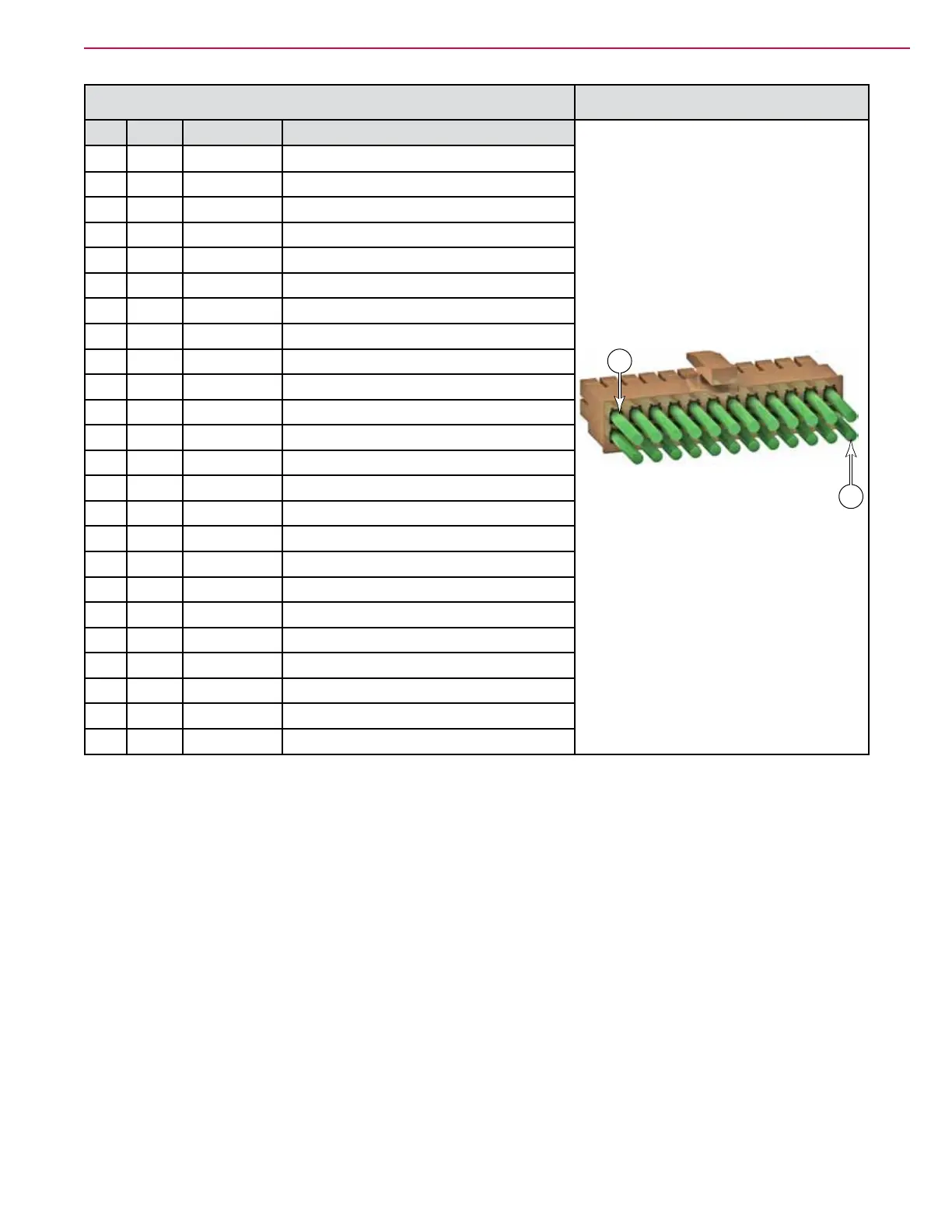

J5 Drive Controller 2-794617-4
Pin# Wire Color Function
24
1
1 W165 GRY
Potentiometer Gnd
2 W195 YEL CAN-1 H
3 W196 GRN CAN-1 L
4 W163 BLU-GRY Seat Switch In
5
6 W164 BLU-YEL E-Stop In
7
8 W193 PNK-YEL Programmer Data
9 W194 PNK-BLU Programmer Clock
10 W166 RED Potentiometer +5V
11
12 W198 RED-ORG +15V Out
13 W168 VIO Throttle In (Pot Wiper)
14
15 W173 VIO Motor Temperature In
16
17
18 W189 GRY I/O Ground
19 W188 VIO-GRN Encoder A
20 W187 VIO-ORN Encoder B
21 W186 VIO-YEL Encoder C
22 W162 YEL KSI In
23
24
