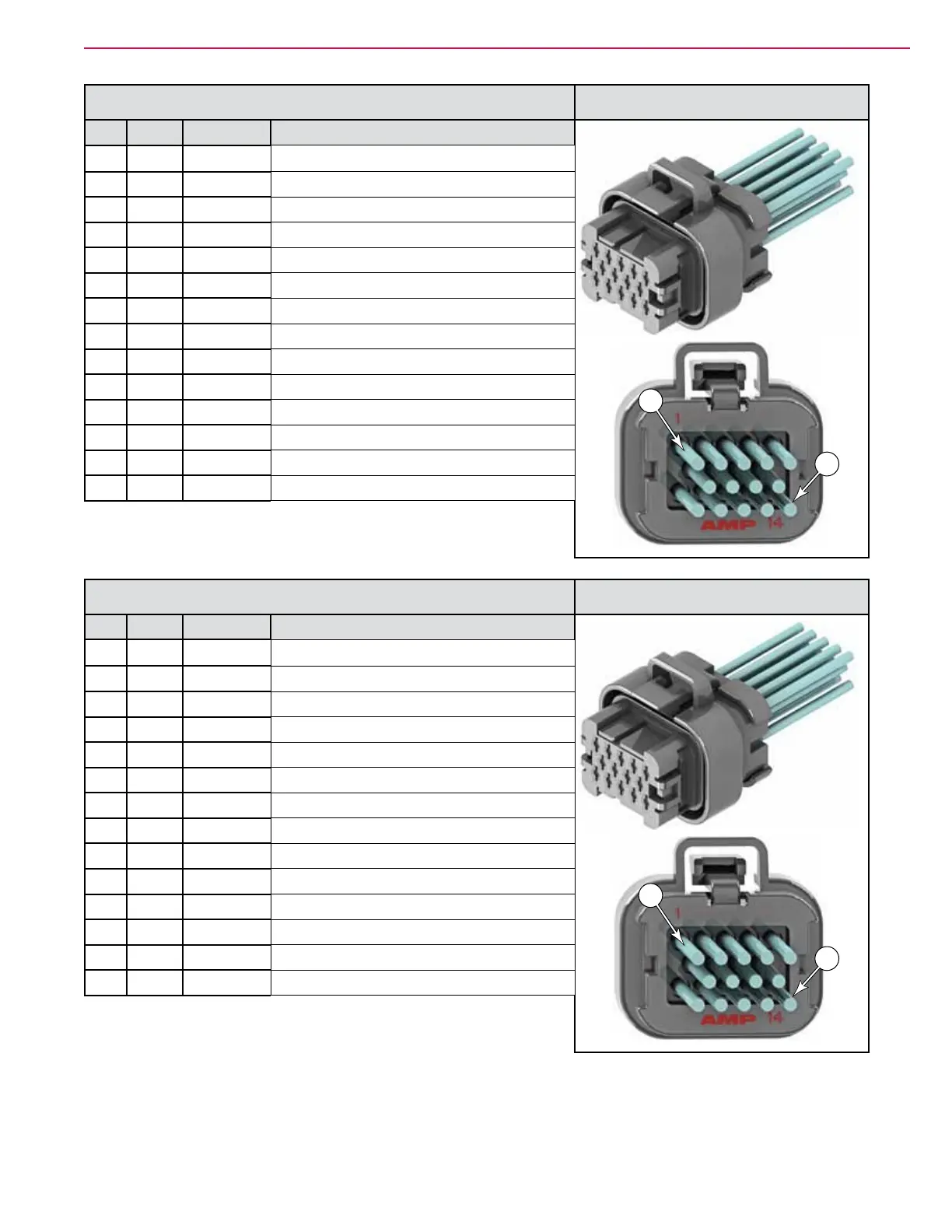

156Service Manual – SC5000 24 - Electrical System
J6 Power Module 776273-1
Pin# Wire Color Function
1
14
1 W232 BRN-GRY
Deck Actuator -
2 W019 BRN K2 Coil Out
3 W245 GRN CAN-1 L
4 W244 YRL CAN-1 H
5 W240 RED Curtis Prog +15V
6 W231F BRN-RED Deck Actuator +
7 W242 PNK-YEL Curtis Prog RX
8 W243 PNK-BRN Curtis Prog TX
9 W202 YEL KSI In
10 W233F BLU-RED Opt. Pump +
11 W234 BLU-GRY Opt. Pump -
12 W241 BLK Curtis Prog Gnd
13 W230 BRN-WHT Squeegee Act. +
14 W229F GRN-RED Squeegee Act. -
J7 Battery Charger 776273-4
Pin# Wire Color Function
1
14
1 W034 GRN
CAN-1 L
2
3
4
5 W030 GRN Interlock Return
6
7
8
9 W031 ORG Interlock Bat+
10 W033 YEL CAN-1 H
11
12
13
14
