157Service Manual – SC5000 24 - Electrical System

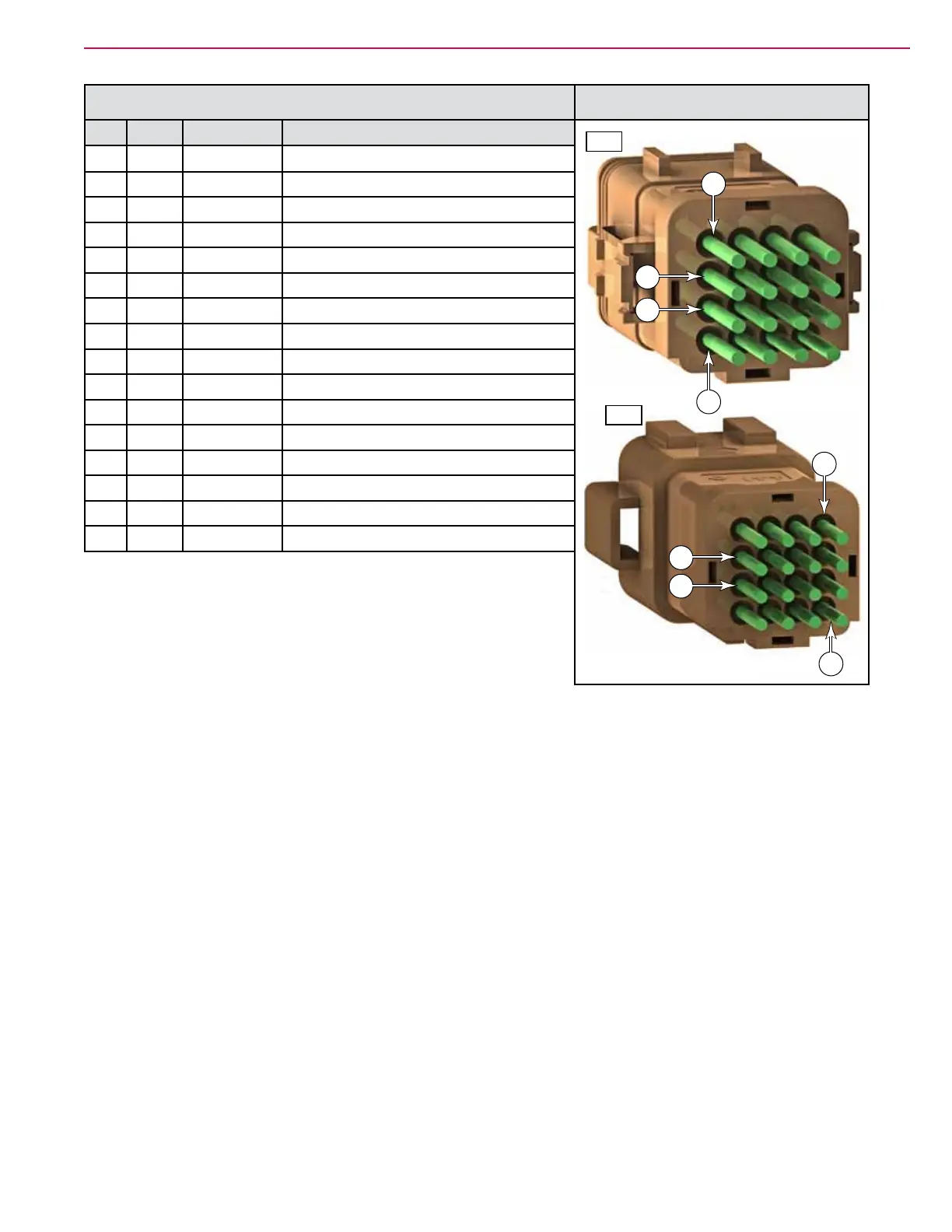

J10 Main to Steering Column Interconnect 132015-0115
Pin# Wire Color Function
1
16
8
9
1
16
5
12
J10
P1
1 W130 RED
USB +5V
2 W131 WHT-BRN USB N
3 W132 GRN-WHT USB P
4 W133 BLK USB Gnd
5 W010A GRN Frame Ground
6 W107A BLU-YEL E-Stop
7 W075 BLU KSI (E-Stop)
8 W058 YEL-VIO KSI (Trackclean)
9 W063 GRN CAN-1 L
10 W062 YEL CAN-1 H
11 W251 GRN-BLK CAN-0 L
12 W250 YEL-BLK CAN-0 H
13 W018D GRY Gnd (Display)
14 W015E ORG Bat+ (Trackclean)
15 W248A RED Power Button Return
16 W246A ORG +12V (Display)
