158Service Manual – SC5000 24 - Electrical System

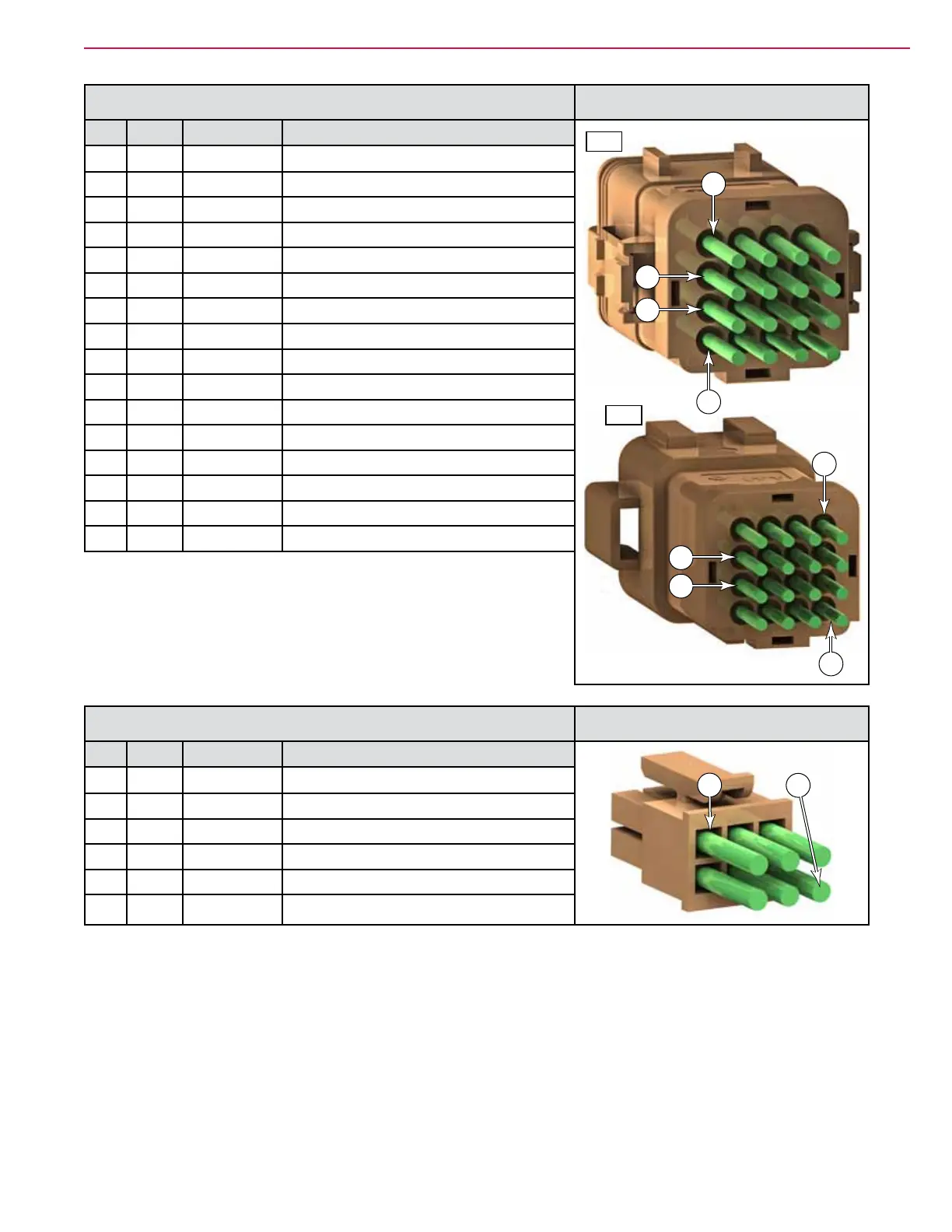

P1 Steering Column to Main Interconnect 132015-0074
Pin# Wire Color Function
1
16
8
9
1
16
5
12
J10
P1
1 W130A RED
USB +5V
2 W131A WHT-BRN USB N
3 W132A GRN-WHT USB P
4 W133A BLK USB Gnd
5 W010B GRN Frame Ground
6 W107B BLU-YEL E-Stop
7 W075A BLU KSI (E-Stop)
8 W058A YEL-VIO KSI (Trackclean)
9 W063A GRN CAN-1 L
10 W062A YEL CAN-1 H
11 W251A GRN-BLK CAN-0 L
12 W250A YEL-BLK CAN-0 H
13 W018E GRY Gnd (Display)
14 W015 ORG Bat+ (Trackclean)
15 W248 RED Power Button Return
16 W246 ORG +12V (Display)
P2 User Interface 662006113322
Pin# Wire Color Function
1
6
1 W246 ORG
+12V
2 W247 GRY GND
3
4 W251A GRN-BLK CAN-0 L
5 W250A YEL-BLK CAN-0 H
6 W248 RED Power Button Return
To Next Page
