159Service Manual – SC5000 24 - Electrical System
P3 TrackClean 132015-0075

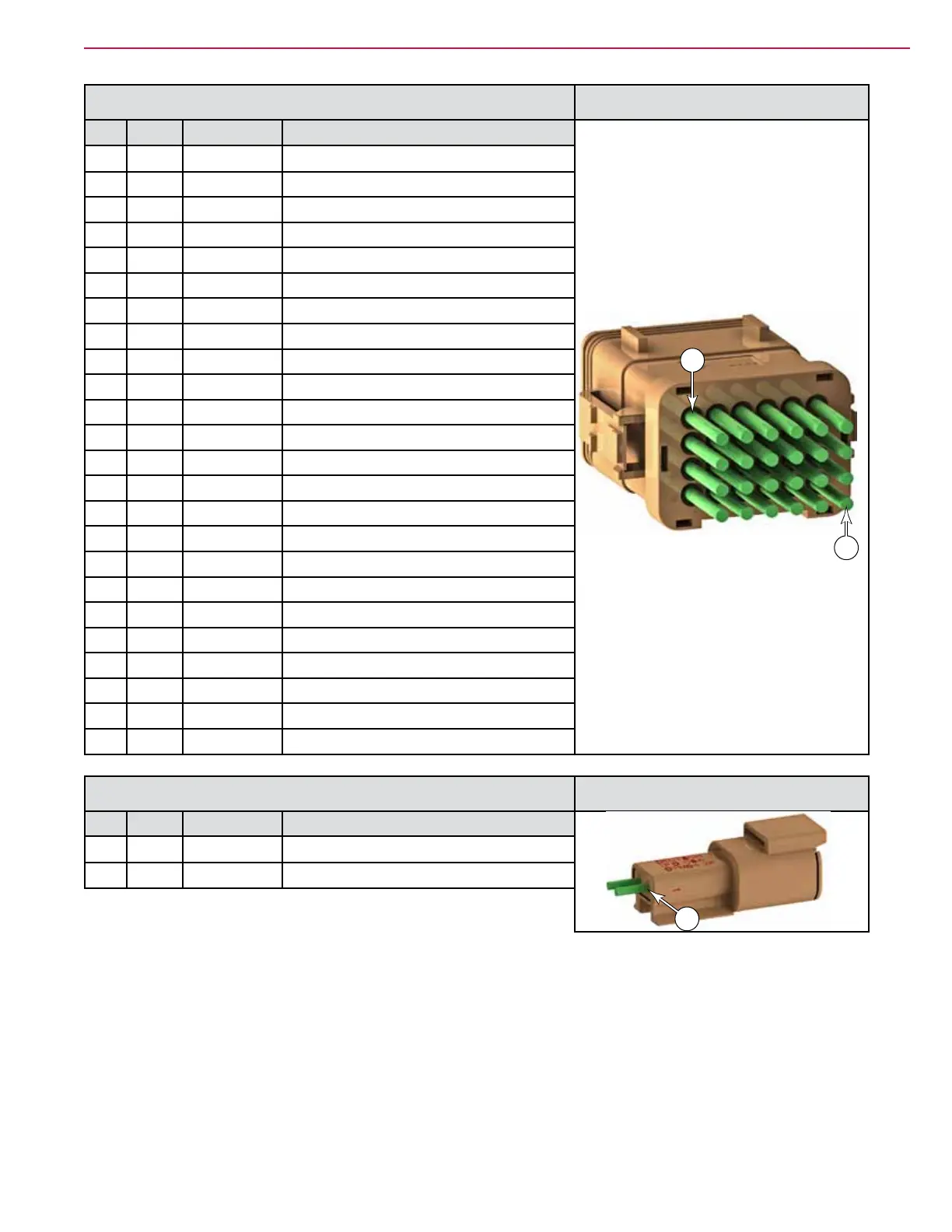

Pin# Wire Color Function
1
24
1 W064 GRY
GND
2
3
4
5
6
7
8
9
10
11 W055 ORG BAT+
12
13
14
15
16
17 W058A YEL-VIO KSI
18
19
20
21
22
23 W062A YEL CAN-1 H
24 W063A GRN CAN-1 L
P4 Blue Light ATM04-2P
Pin# Wire Color Function
1
1 W075B BLU KSI
2 W076B GRY GND
