160Service Manual – SC5000 24 - Electrical System

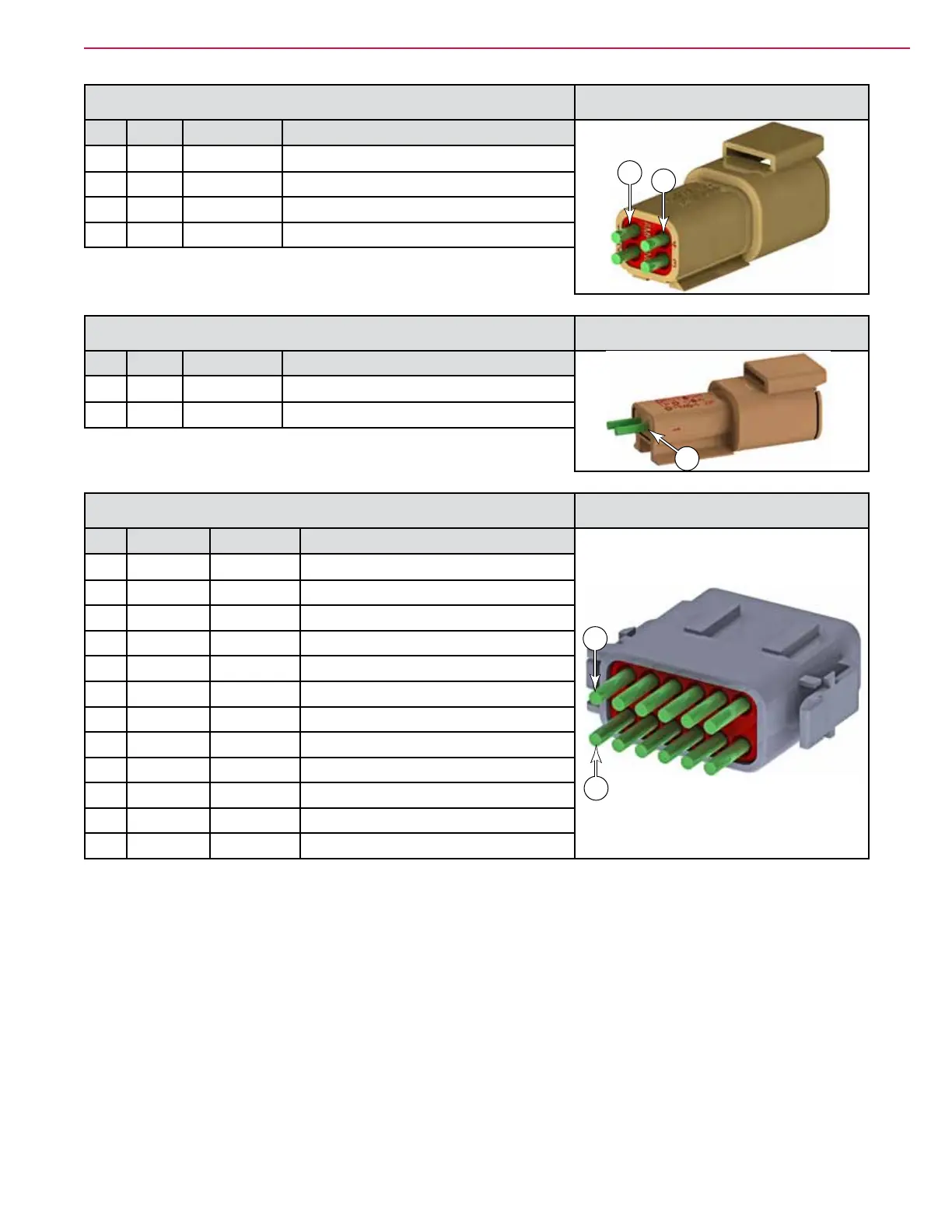

P5 USB Connector ATM04-4P
Pin# Wire Color Function
1
4
1 W130A RED +5V
2 W131A WHT-BRN USB+
3 W132A GRN-WHT USB-
4 W133A BLK GND
P6 Smart Key ATM04-2P
Pin# Wire Color Function
1
1 W105 GRY-BLK GND
2 W104 BLU-PNK Smart Key to MMC
X196 Traction to Main Interconnect ATM06-12S
Pin# Wire Color Function
12
1
1 W186A VIO-YEL Encoder U
2 W187A VIO-ORG Encoder V
3 W188A BLK Encoder W
4 W185A RED-VIO +15V
5 N/A Shield Shield
6 W189A GRY I/O Ground
7
8
9 W174A GRY B-
10 W173A VIO Temperature
11 W176A GRY Brake-
12 W175A BLU Brake+
