161Service Manual – SC5000 24 - Electrical System

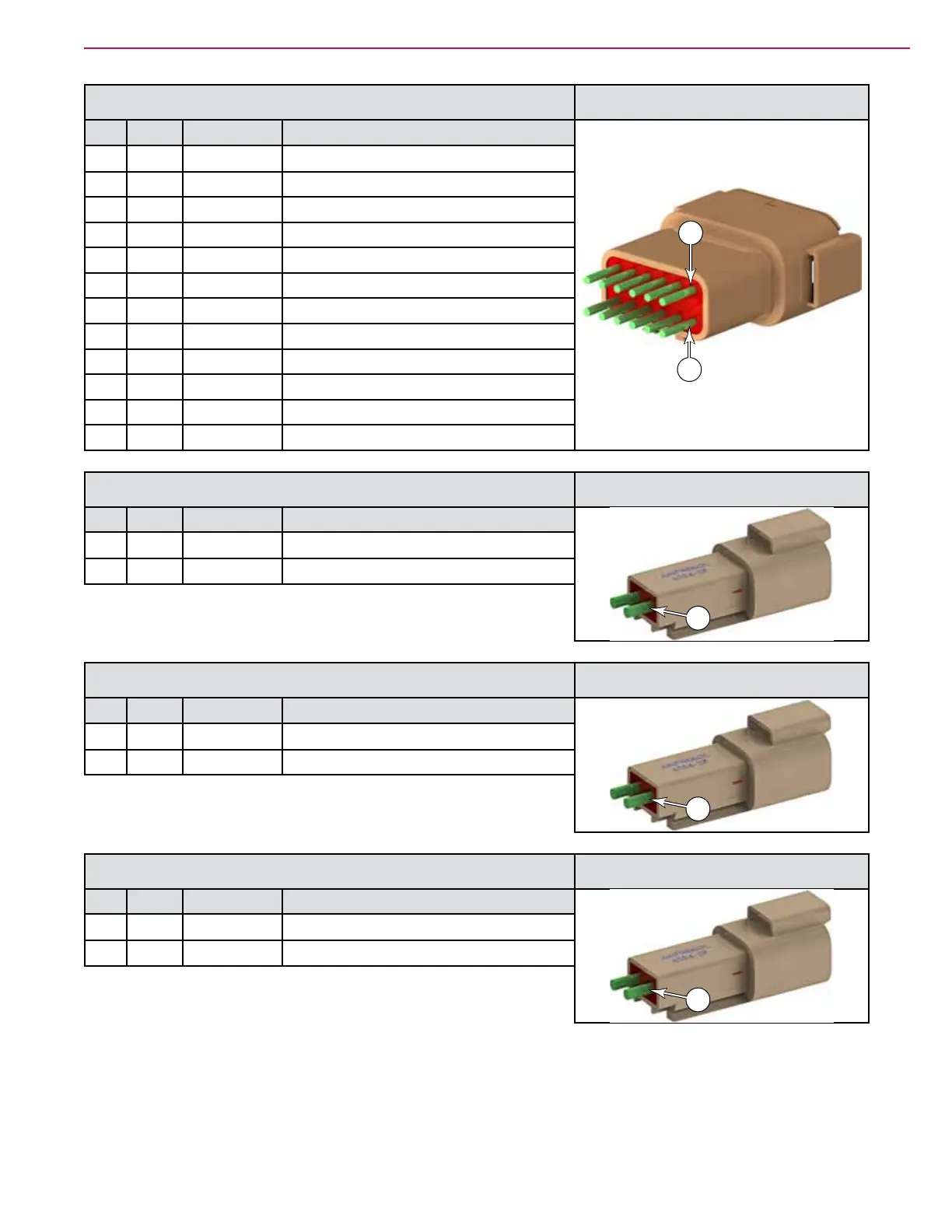

X203 Main to Traction Interconnect ATM04-12P
Pin# Wire Color Function
12
1
1 W186 VIO-YEL Encoder U
2 W187 VIO-ORN Encoder V
3 W188 VIO-GRN Encoder W
4 W185 RED-VIO +15V
5
6 W189 GRY I/O Ground
7
8
9 W174 GRY B-
10 W173 VIO Temperature
11 W176 GRY Brake-
12 W175 BLU Brake+
X72 Side Sweep Motor AT04-2P
Pin# Wire Color Function
1
1 W212 RED-WHT +36V
2 W222 BRN-WHT M3
X75 Squeegee Actuator AT04-2P
Pin# Wire Color Function
1
1 W230 BRN-WHT M6+
2 W229 GRN-RED M6-
X76 Wash Pump AT04-2P
Pin# Wire Color Function
1
1 W233 BLU-RED M10+
2 W234 BLU-GRY M10-
