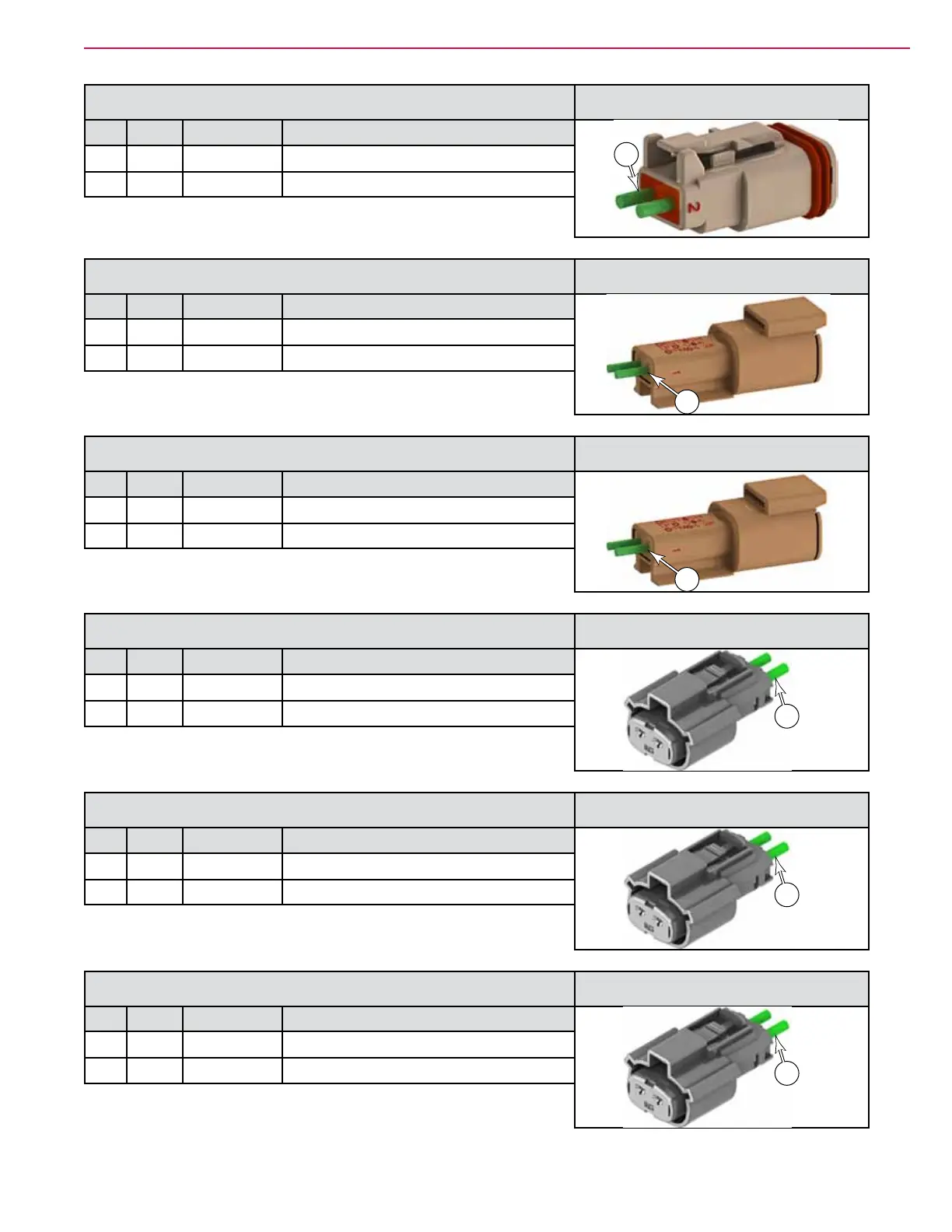

162Service Manual – SC5000 24 - Electrical System
X78 Solution Solenoid AT06-2S
Pin# Wire Color Function
1
1 W145 BLU-YEL Solution Solenoid-
2 W144 YEL KSI +36V
X80 Headlight Harness ATM04-2P
Pin# Wire Color Function
1
1 W065 BLU KSI
2 W068 GRY GND
X83 Deck Actuator ATM04-2P
Pin# Wire Color Function
1
1 W231 BRN-RED M7+
2 W232 BRN-GRY M7-
X84 Rear Cylindrical Motor 19432-0013
Pin# Wire Color Function
1
1 W207B RED-BRN K2 Power
2 W217B BRN-GRY M2
X85 Left Disk Motor 19432-0013
Pin# Wire Color Function
1
1 W207A RED-BRN K2 Power
2 217AW BRN-GRY M2
X126 Front Cylindrical Motor 19432-0013
Pin# Wire Color Function
1
1 W206B RED-BRN K2 Power
2 W216B BRN-GRY M1
