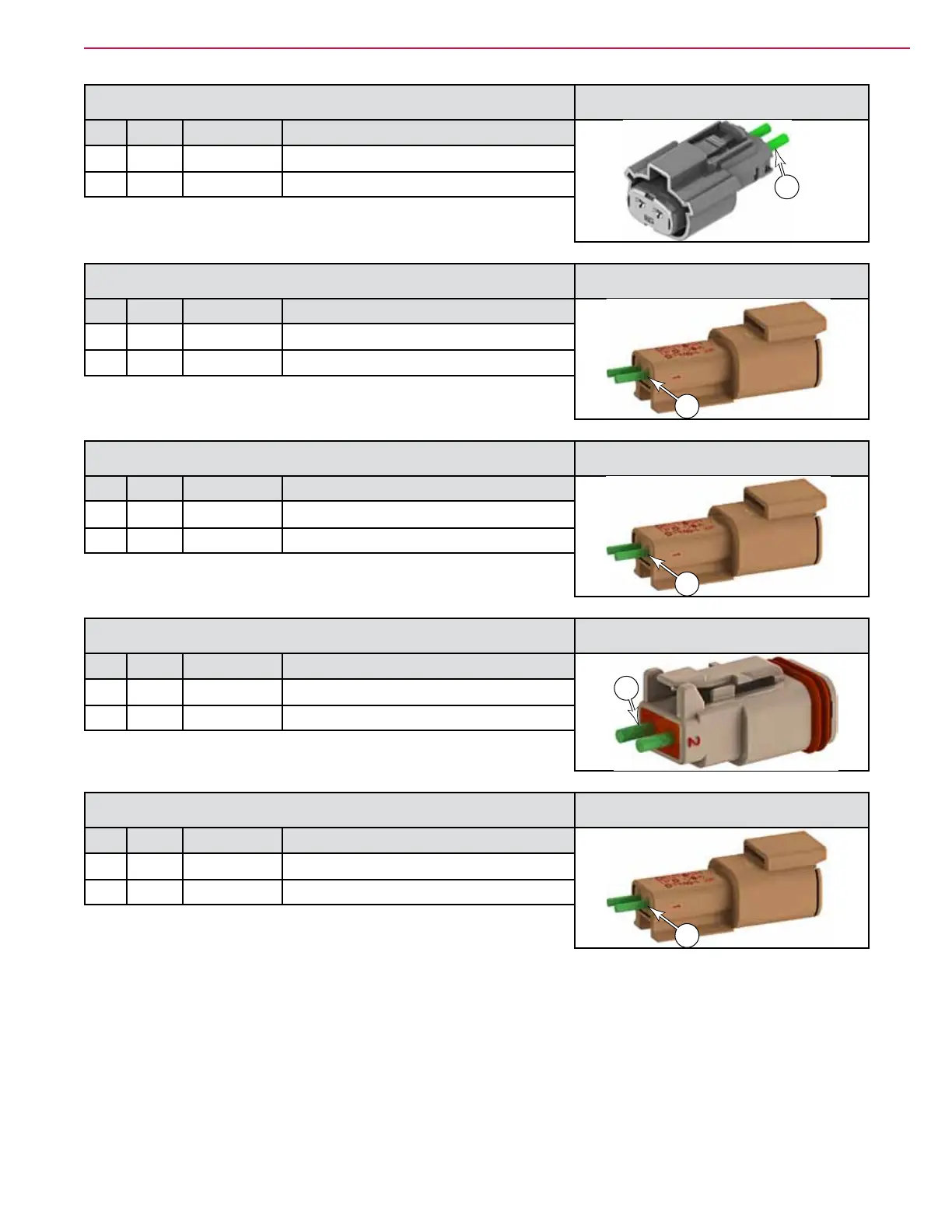

163Service Manual – SC5000 24 - Electrical System
X128 Right Disk Motor 19432-0013
Pin# Wire Color Function
1
1 W216A BRN-GRY M1
2 W206A RED-BRN K2 Power
X146 Vacuum Motor 2 ATP04-2P
Pin# Wire Color Function
1
1 W209 RED-GRN K2
2 W219 GRN-GRY GND
X156 Vacuum Motor 1 ATP04-2P
Pin# Wire Color Function
1
1 W208 RED-GRN K2
2 W218 GRN-GRY GND
X151 Beacon AT06-2S
Pin# Wire Color Function
1
1 W073 BLU KSI
2 W074 GRY-BLU GND
X168 Side Sweep Switch ATM04-2P
Pin# Wire Color Function
1
1 W126 GRY GND
2 W125 BRN Broom Up
