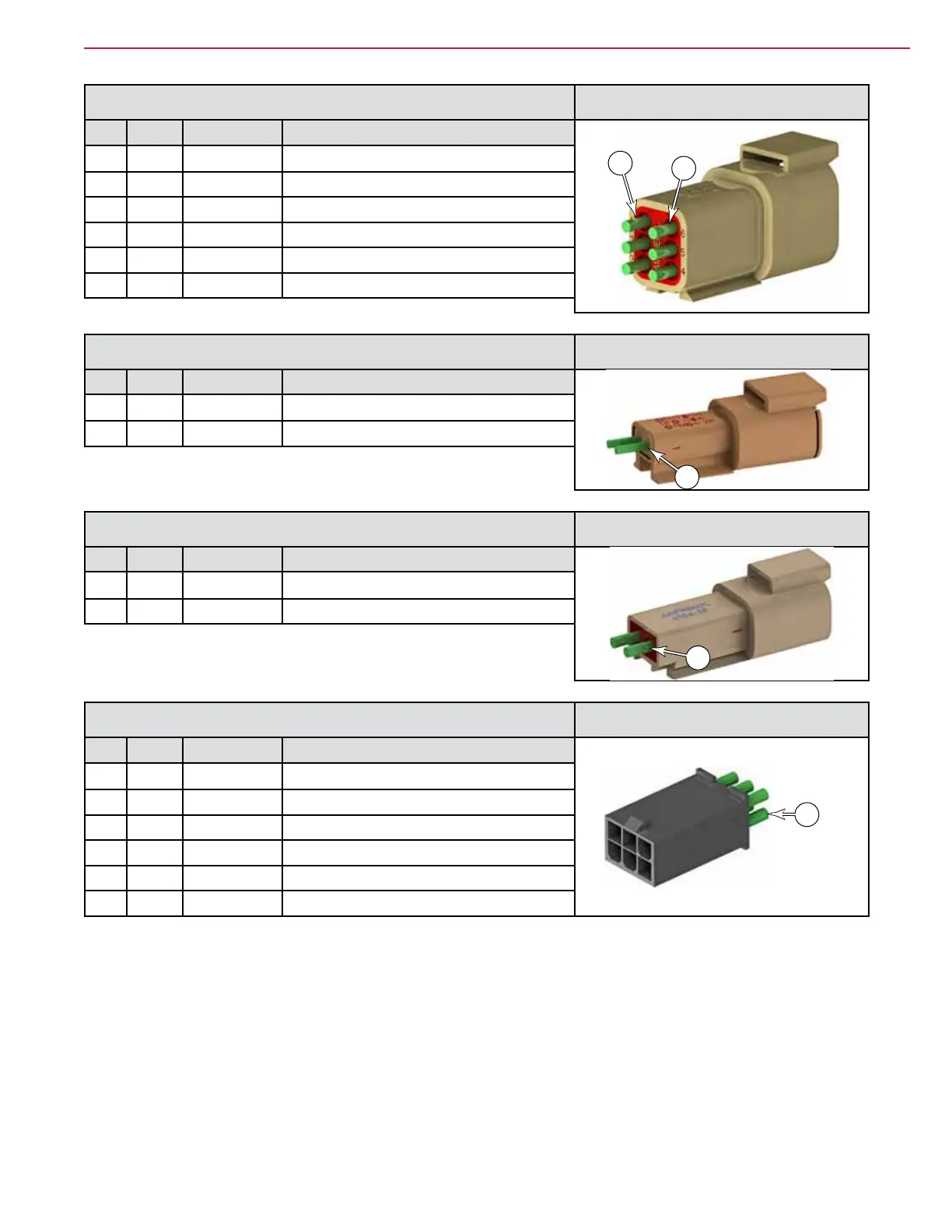

164Service Manual – SC5000 24 - Electrical System
X189 Foot Pedal ATM04-6P
Pin# Wire Color Function
1
6
1 W166 RED +5V
2 W168 VIO Wiper
3 W167 GRY Ground
4
5
6
X190 Solution Level Sensor ATM04-2P
Pin# Wire Color Function
1
1 W115 BLU-YEL +5V
2 W120 GRY-BLU Sensor Return
X204 Backup Alarm AT04-2P
Pin# Wire Color Function
1
1 W078 GRY-BLU KSI +36V
2 W077 YEL Backup Alarm-
X207 CAN Bus Access Port 39-01-3069
Pin# Wire Color Function
1
1 W095 YEL-BLK CAN0 H
2 W096 GRN-BLK CAN0 L
3 W099 GRY Battery-
4 W097 YEL CAN1 H
5 W098 GRN CAN1 L
6
