11
BATTERY INSTALLATION AND BATTERY TYPE SETTING (WET OR GEL OR AGM OR
DIS-EV)
Set the electronic circuit board of the machine and battery charger according to battery types (WET or GEL or AGM
or DIS-EV) following steps below:
1. Turn off the machine.

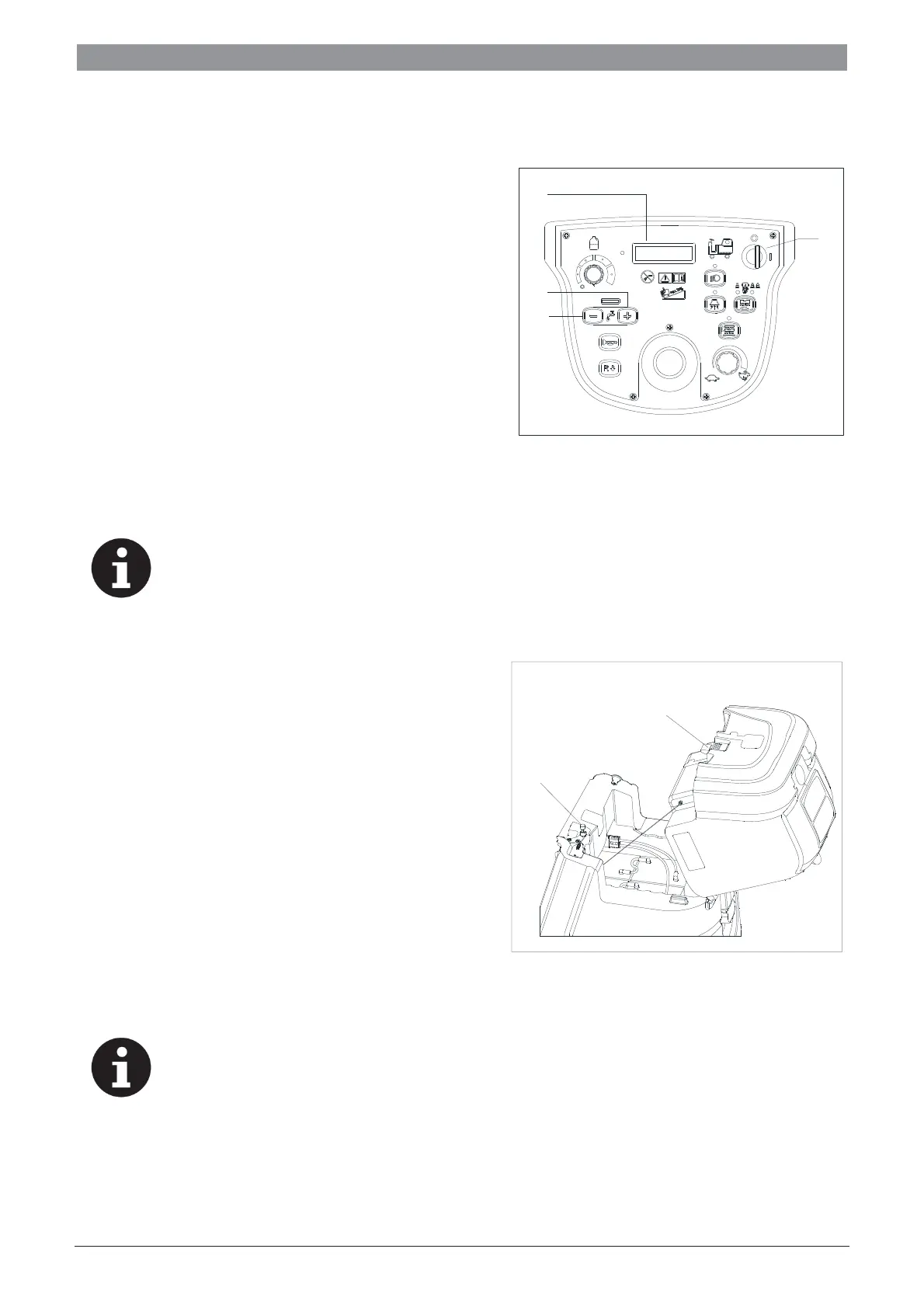

2. Press flow adjusting buttons “+” and “-“ (B, C Figure4).
Turn the ignition key (D, Figure4) to “I” tap position.
3. Release flow adjusting buttons. “Set Battery Type
BAT=AGM 0” will be showed on LCD screen (as Figure 4
A).
4. Then, you can setting the battery type through pressing
button “+” and “-“ (B, C Figure4).
a. AGM
b. WET
c. DIS-EV
d. GEL
5. Turn off the machine, the battery type setting will be saved.
The battery type can be showed at the bottom of LCD
screen when re-turn on the machine.
Note: The default setting of battery type is GEL.
NOTE
Setting the battery type according to your new batteries, or the batteries may be damaged. Make
sure the charger is adapted to the batteries. If any query, contact our service center or your
supplier.
Battery Installation
1. Open the recovery tank cover (3 figure 1) and check the
recovery tank (15 figure 1) is empty, otherwise, empty it
with drain hose (17 figure 1).
2. Close the recovery tank cover (3 figure 1).
3. Turn over the seat, press the lock catch (as figure5 B), then
turn over the recovery tank (15 figure 1) carefully.
4. The machine is supplied with cables suitable to install
4X6V batteries. Carefully put the batteries into the
compartment, then install them correctly.
5. Route and install the battery cable as shown in (Figure 3),
then carefully tighten the nut on each battery terminal.
Connect batteries to connector on machine.
6. Place the protection cap on each terminal, and then
connect the battery connector.
7. Get the recovery tank (3 figure 1) back, lock the lock catch.
8. Need to order battery tray, if customer use the wet battery.
NOTE
Ensure the hand protection device (as
Figure
5 A) for turning over recovery tank is in the
correct position to security the safety when turning over the recovery tank.
Charging the Batteries
9. Charging the batteries. [Refer to MAINTENANCE chapters]
C
D
B
A
Set Battery Type
BAT=AGM 0
A
B
