Squeegee System 158Service Manual – SC6500
™
Squeegee Adjustment
There are two major squeegee tool adjustments–height and angle. The recommended procedure is to set the
squeegee angle rst, then adjust the squeegee blade height.
To Adjust the Squeegee Angle
Adjust the squeegee angle
whenever a blade is reversed or
replaced, or if the squeegee is not
wiping the oor dry.
1. Park the machine on a at,
even surface and lower the
squeegee.
2. Drive the machine forward
enough to have the squeegee
blades fold over to the rear as

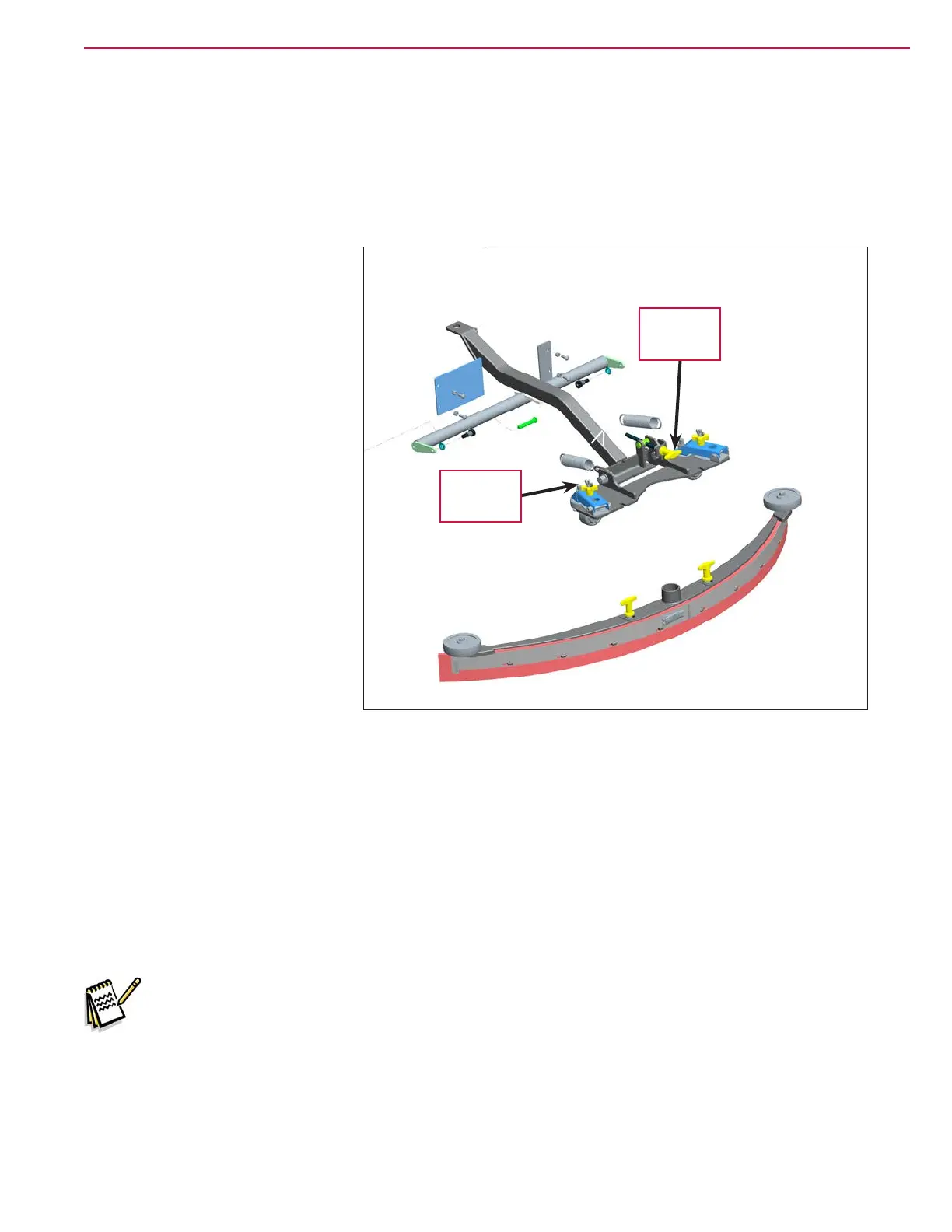

shown in the detail drawing.
3. Turn the Tilt Adjustment
Knob
to tilt the tool forward
or backward until the rear
squeegee wiping blade touches
the oor evenly across its
entire width.
To Adjust the Squeegee Blade
Height
Adjust the squeegee height
whenever a blade is reversed or
replaced, or if the squeegee is not
wiping the oor dry. The squeegee
blade height is easily adjustable
at the caster wheels. To adjust the
squeegee blade height:
1. Park the machine on a at, even surface and lower the squeegee.
2. Drive the machine forward enough to have the squeegee blades fold over to the rear as shown in the
detail drawing.
3. Rotate the Caster Adjustment Knobs clockwise to lift the squeegee, or counterclockwise to lower it. A
starting point when replacing the blades is to adjust the caster-mounting bracket so it is level (parallel)
to the top of the squeegee tool.
Note: The right and left caster wheels must be adjusted equally to maintain level and even blade
pressure.
Tilt
Adjustment
Knob
Caster
Adjustment
Knob (2)
