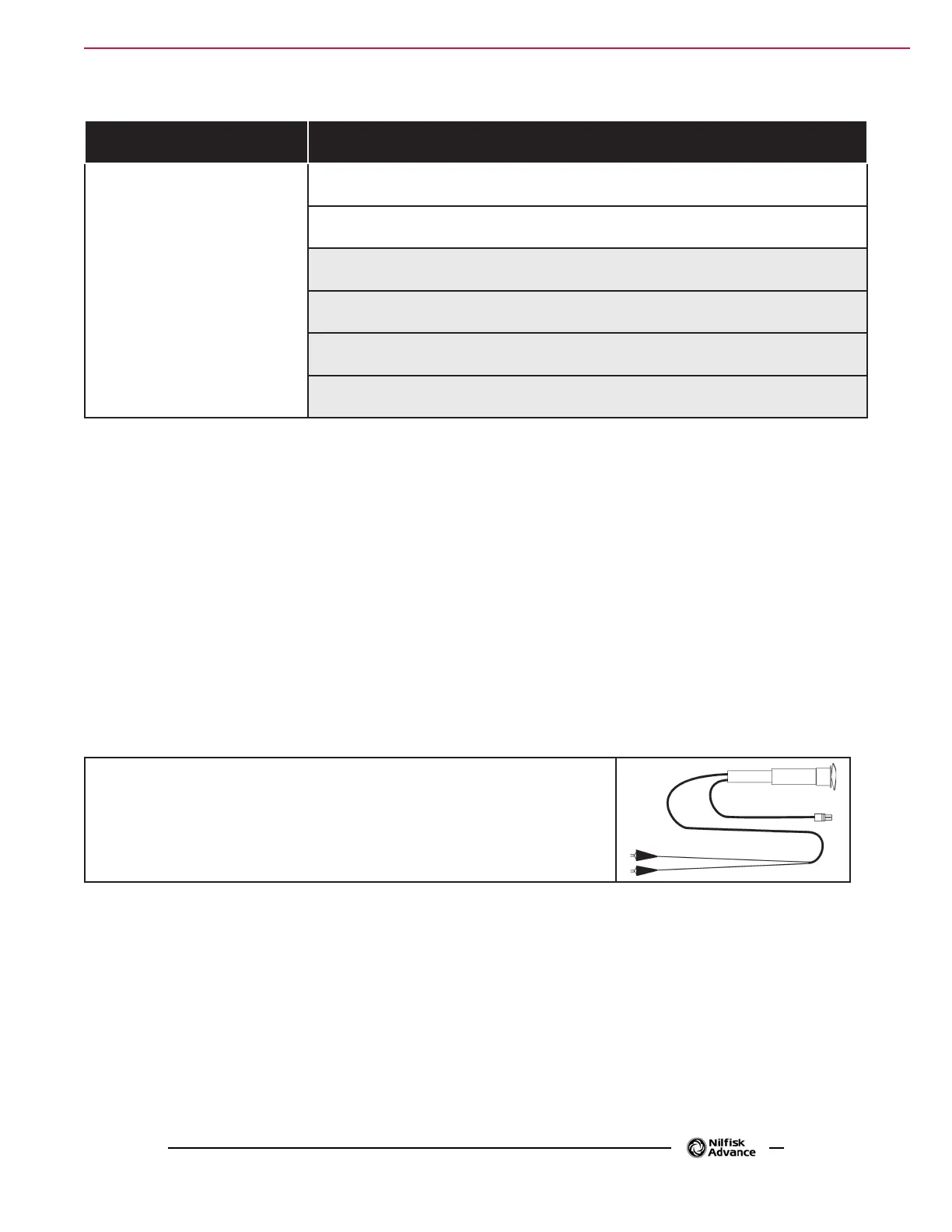

Squeegee System 162Service Manual – SC6500
™
Specifications
Component Specifications
Squeegee Actuator Motor
Type – permanent magnet, 36 VDC, 1/6 HP, reversible
Motor-to-drive-screw ratio – 27.1:1
Performance Data
No Load – Thrust 0 lbs., Speed 39 in/min, 1.4 Amps max.
Full Load – Thrust 600 lbs., Speed 30 in/min, 6.7 ±1 Amps
Start Thrust – 600 lbs.
Shop Measurements
Shop measurements are values that were measured on a real machine. While they are not “specications”,
they can help you recognize normal vs abnormal.
Squeegee Actuator Motor
• Current draw going up: 2.2 Amps
• Current draw going down: 1.2 Amps
Special Tools
Actuator Power Cord Adapter, p/n 56407502
