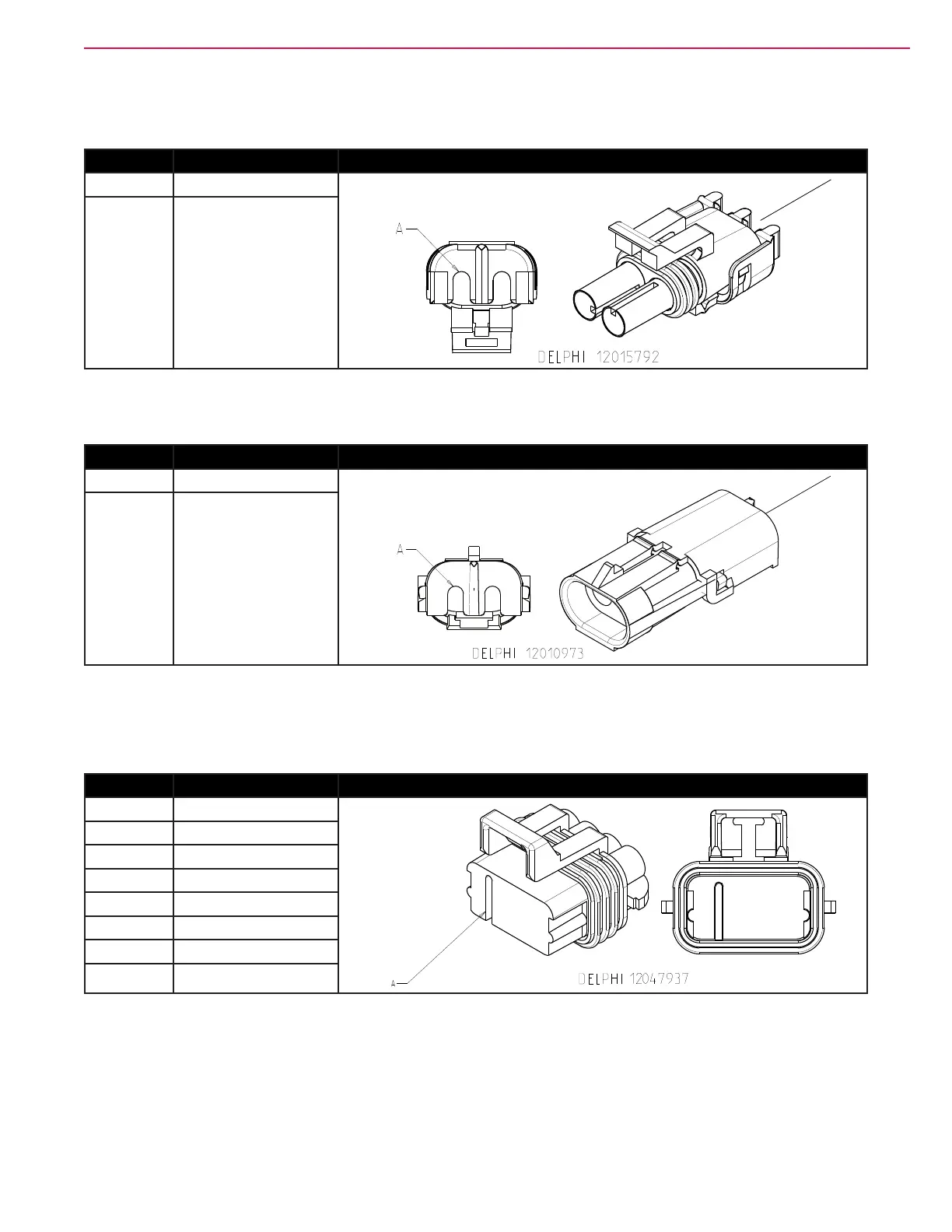

Electrical System 72Service Manual – SC6500
™
X51
Connector, Battery Interlock Switch Jumper (used when there is not an optional interlock switch)
Pin No. Wire ID
A BLK 18-8
B BLK 18-8
X55 Connects to M15 Accessory Pump (Optional) X54
Pin No. Wire ID
A VIO 18-15
B BLK 18-11
X59 Connects to Telematics Connector Jumper X59A
Pin No. Wire ID
A ORN/YEL 18-1
B ORN 18-1
C YEL BRN 18-3
D BLU 18-2
E YEL/BLU 18-2
F RED/WHT 18-3
G
H BLK 18-12
