General Information 21Service Manual – SC6500
™

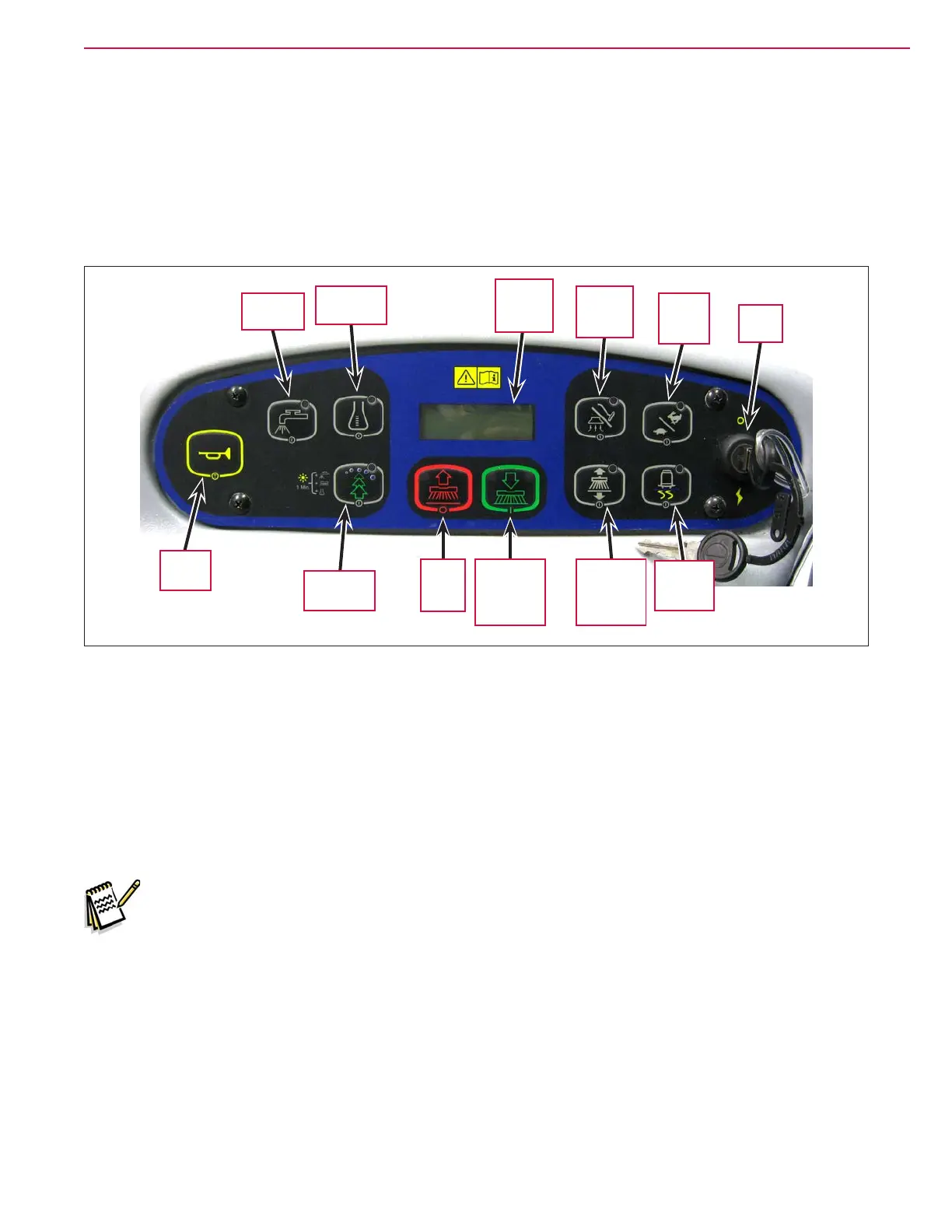

Control Panel
Switch and Button Functions
The controls on your rider scrubber were designed with one-touch operation in mind. For single-pass
scrubbing, the user can simply depress one switch and all systems on will be activated. For most single-pass
scrubbing operations, the operator should only need to use the middle switches on the control panel. These
are the red Scrub Off and the green Scrub On/Pressure Increase Switches.
Key
Switch
Scrub
Speed
Switch
Vacuum/
Wand
Switch
Control
Panel
Display
Scrub On/
Pressure
Increase
Switch
Scrub
Off
Switch
Detergent
Switch
Solution
Switch
Traction
Control
Switch
Side
Broom
On/Down
Switch
Burst of
Power
Horn
Button
• Key Switch – main power switch; controls the battery input to the machine’s main control board and the
wheel drive speed control.
• Scrub On/Pressure Increase Switch – functions as follows:
If the scrub system is off, pressing this switch once will put the machine into the Auto Scrub mode. The
following will occur:
– The scrub system will be enabled with the scrub pressure set to the #1 normal setting.
Note: Press the switch twice for #2 heavy scrub setting, and three times for the #3 extreme scrub
setting. Pressing the switch a fourth time will return the system to the normal scrub setting.
– The scrub deck and squeegee will automatically be lowered. On cylindrical models equipped with side
brooms, the side brooms will be lowered.
– The vacuum system will be enabled.
– The solution and detergent systems will be enabled. Note that both the solution and detergent ow
rates will correspond to the selected scrub pressure mode.
– As soon as the drive pedal is moved from its neutral position, the scrub brushes and side brooms (if
installed) will start turning, and the solution, detergent and vacuum systems will switch on.
