Recovery System 99Service Manual – SC6500
™
Removal and Installation
Warning! Before removing or reinstalling any machine components, disconnect the battery
pack by pushing in the emergency-stop switch/battery disconnect, and make sure
the parking brake is engaged.
Recovery Tank
1. Drain the recovery tank.
2. Disconnect the squeegee hose from the squeegee tool, and from the top of the recovery tank (twist the
hose to remove).
Note: Removing the squeegee tool at the mount will allow more room to maneuver when removing
the recovery tank.

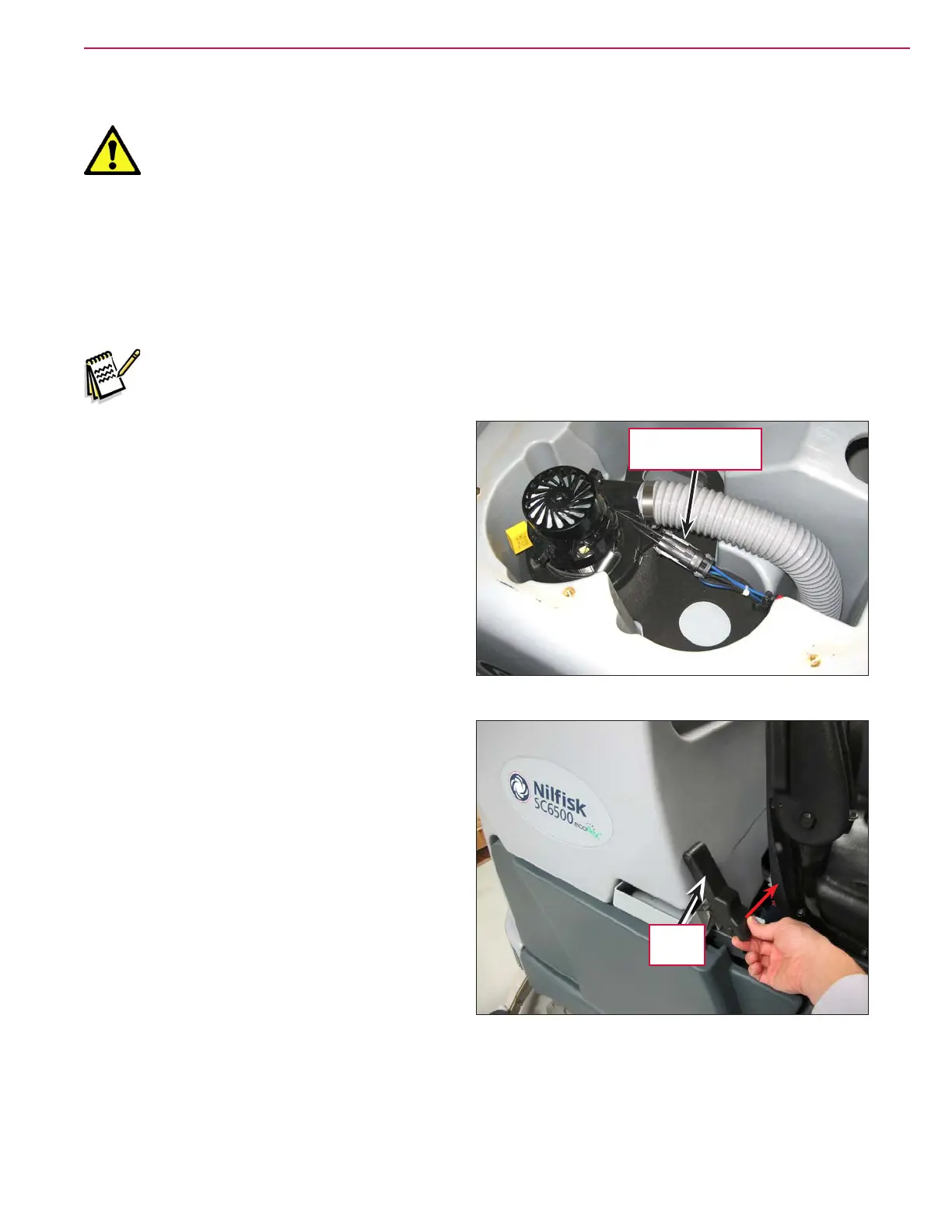

3. Disconnect the Vacuum Motor Wiring Connector
located underneath the left rear bottom of the
recovery tank.
4. Release the Tank Latch and tilt the tank
toward the rear.
Vacuum Motor
Wiring Connector
Tank
Latch
