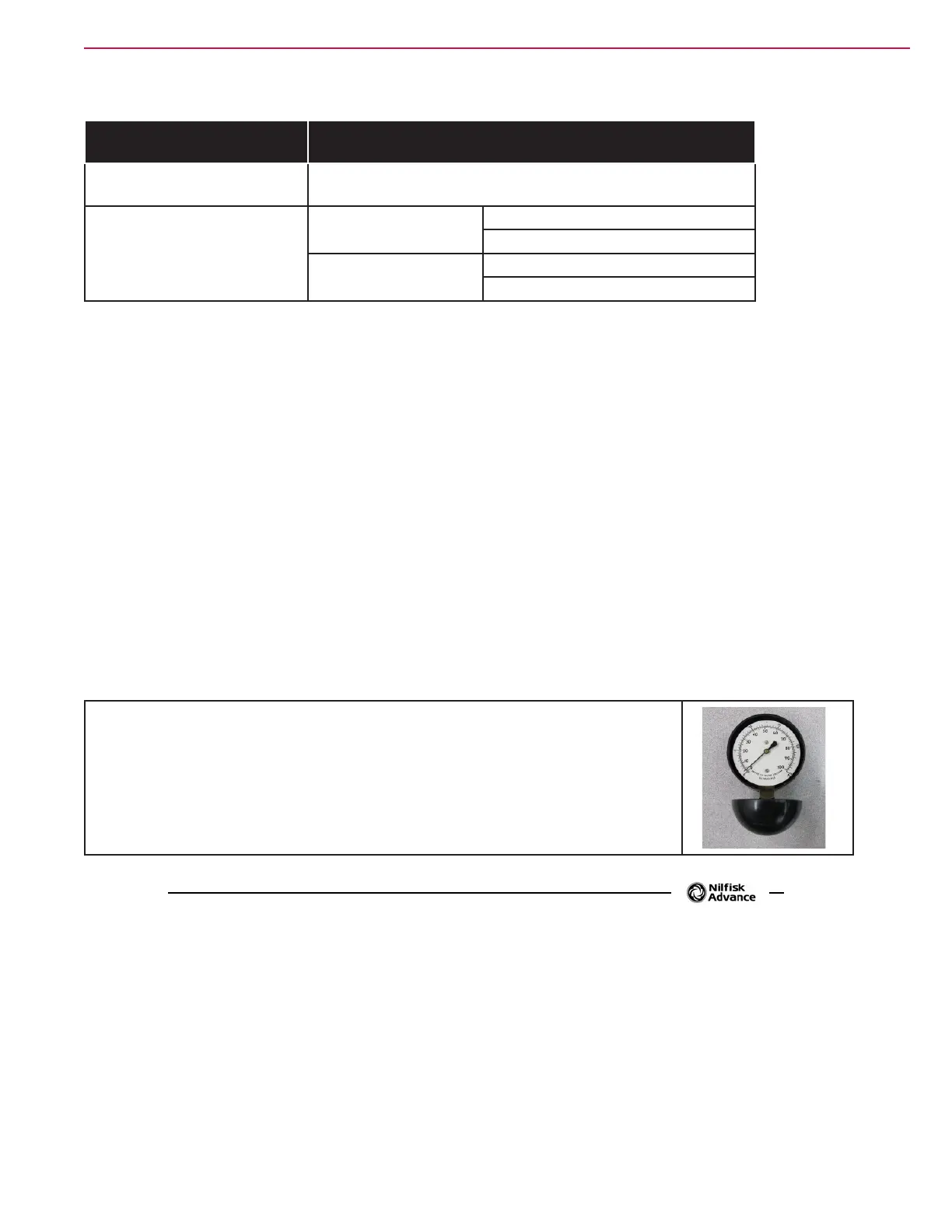

Recovery System 102Service Manual – SC6500
™
Specifications
Component Specifications
Vacuum Motor 36 VDC, Insulation Class: A
Vacuum Lift
One Vacuum Motor
(Sealed) 68 in. H
2
O
(Open Hole Adapter 1”) 14 in. H
2
O
Two Vacuum Motors
(Sealed) 74 in. H
2
O
(Open Hole Adapter 1”) 27 in. H
2
O
Shop Measurements
Shop measurements are values that were measured on a real machine. While they are not “specications”,
they can help you recognize normal vs abnormal.
K1 Vacuum Contactor
Resistance at room temperature: 93 ohms
Vacuum Motor
Current draw for one motor with open squeegee hose: 18.7 Amps
Special Tools
Vacuum water lift gauge, Nilsk-Advance part number 56205281
