Recovery System 101Service Manual – SC6500
™
3. Remove the ve Screws from the Top Cover
Assembly
, then lift the Top Cover Assembly,
straight up while guiding the oat cage up
through the opening in the recovery tank.
4. Disconnect the Vacuum
(exhaust) Hose
from the
Vacuum Motor.
5. Disconnect the wiring harness
connector from the Vacuum
Motor
and lift the Vacuum
Motor
out from its mounting
cavity.
6. Inspect the following vacuum
system gaskets and replace as
necessary:
• Vacuum Filter Lid Gasket
• Vacuum Fan Top Gasket
• RS Strip Gasket
• Vacuum Fan Gaskets
7. Clean the vacuum motor
Filter, Filter Screen and Vacuum
(exhaust) Hose
.
8. Inspect the carbon motor
brushes. If the carbon brushes
are less than 3/8” (10 mm) in
length, replace the brushes.
9. Reinstall the Vacuum Motor by
following the above steps in
reverse order.

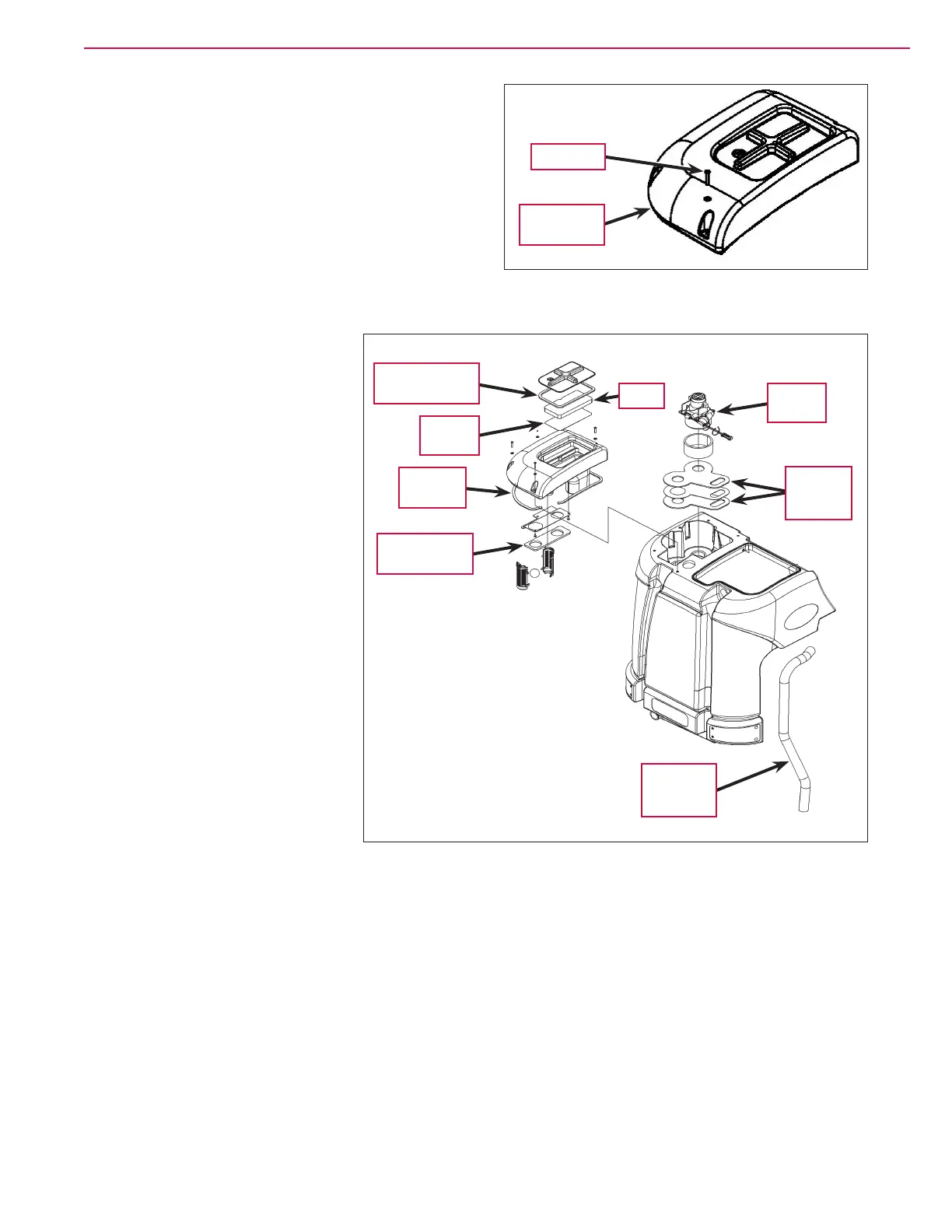

Top Cover
Assembly
Screw (5)
Vacuum
Fan
Gaskets
Vacuum Filter
Lid Gasket
RS Strip
Gasket
Vacuum Fan
Top Gasket
Filter
Screen
Filter
Vacuum
(exhaust)
Hose
Vacuum
Motor
To Next Page
