Service Manual: SC750, SC800, SC 750 ST, SC800 ST
Form Number 56043150 Page 102

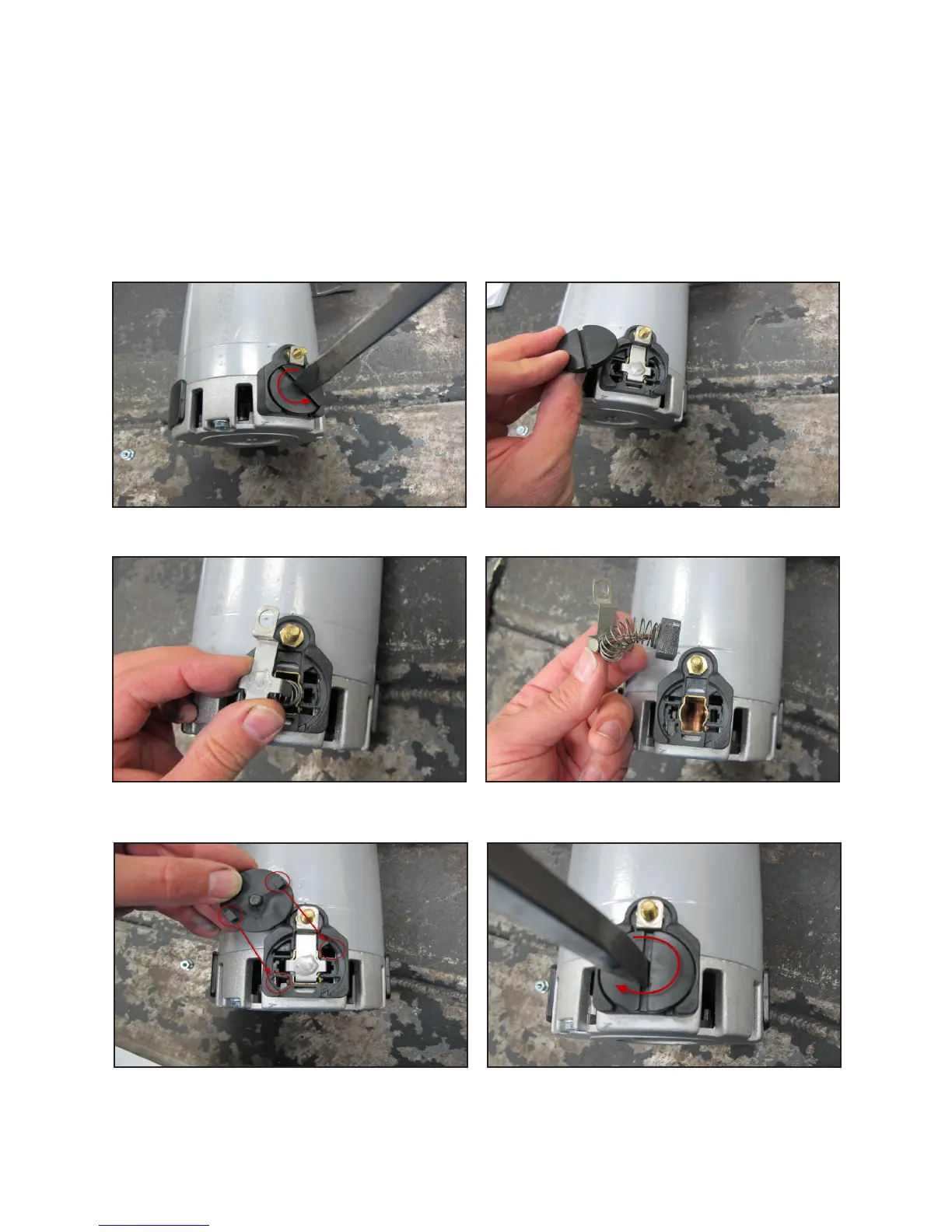

Scrub Motor Carbon Brushes
Note: Photos in this secon were taken with the motor removed from the machine for beer clarity.
1. Remove the plasc motor cover.
2. Remove wiring from motor connectors.
3. Remove one of the round plasc brush caps using a large sloed screw driver.
4. Pull the brush and spring assembly out.
5. Reassemble in reverse order lining up the two locking tabs of the brush cap when installing the brush cap. Re-
peat for second carbon brush.
