Service Manual: SC750, SC800, SC 750 ST, SC800 ST
Form Number 56043150 Page 127
Paddle Position Sensor – Non-ST models - SC750, SC800
Photos are shown working on a bench top but this can be done on the machine.
1. Remove top two handle mounng bolts.
2. Loosen the boom two handle mounng bolts and rotate handle down.

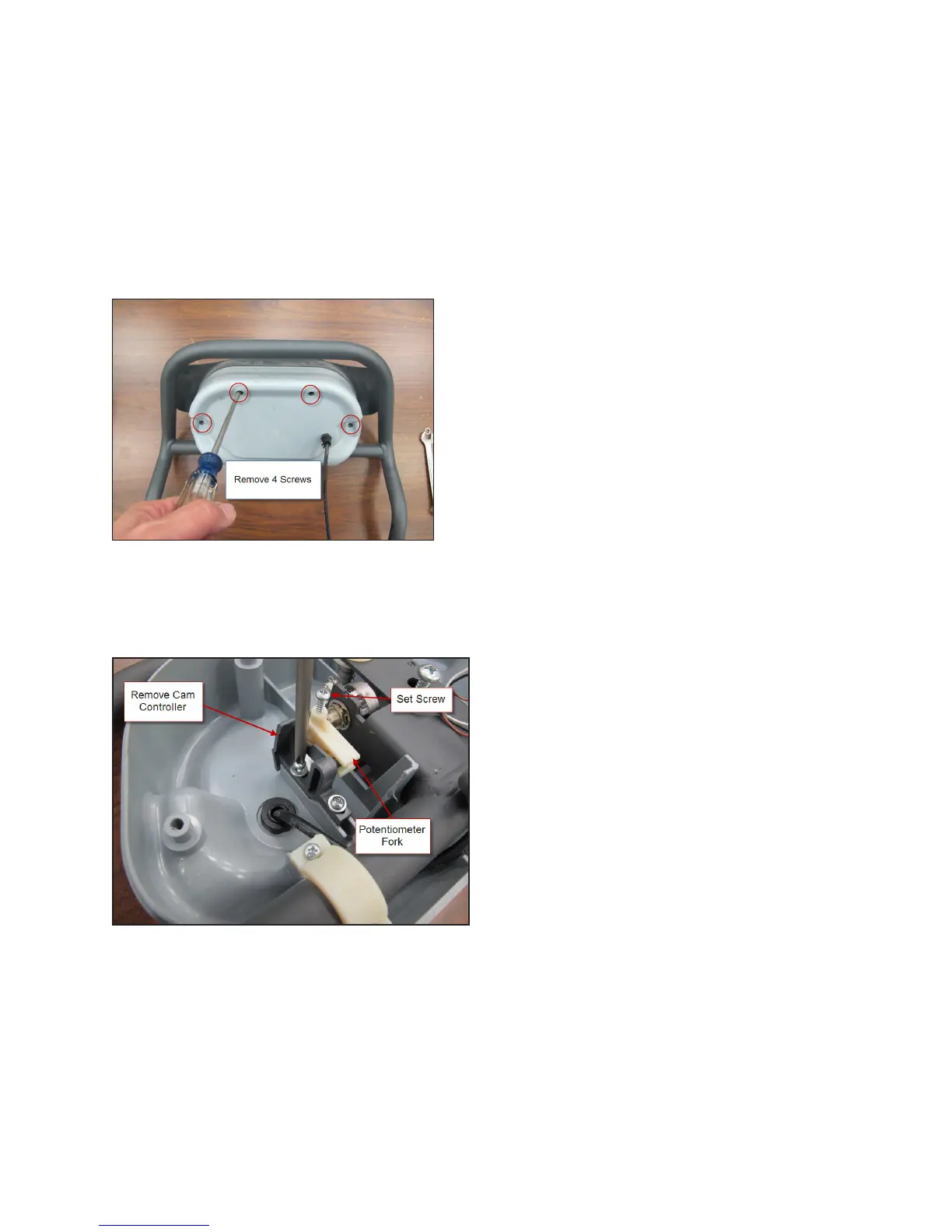

3. From the back side of the paddle, remove the 4 screws securing the front cover. Remove the front cover. (Discon-
nect wiring from speed limit potenometer).
4. Disconnect wiring from the potenometer. Make sure you carefully record the wire colors and their posions so
that you will be able to reconnect them correctly.
5. Remove the cam controller.
6. Loosen set screw and remove the potenometer fork.
7. Remove the potenometer mounng nut and washer.
