Service Manual: SC750, SC800, SC 750 ST, SC800 ST
Form Number 56043150 Page 75

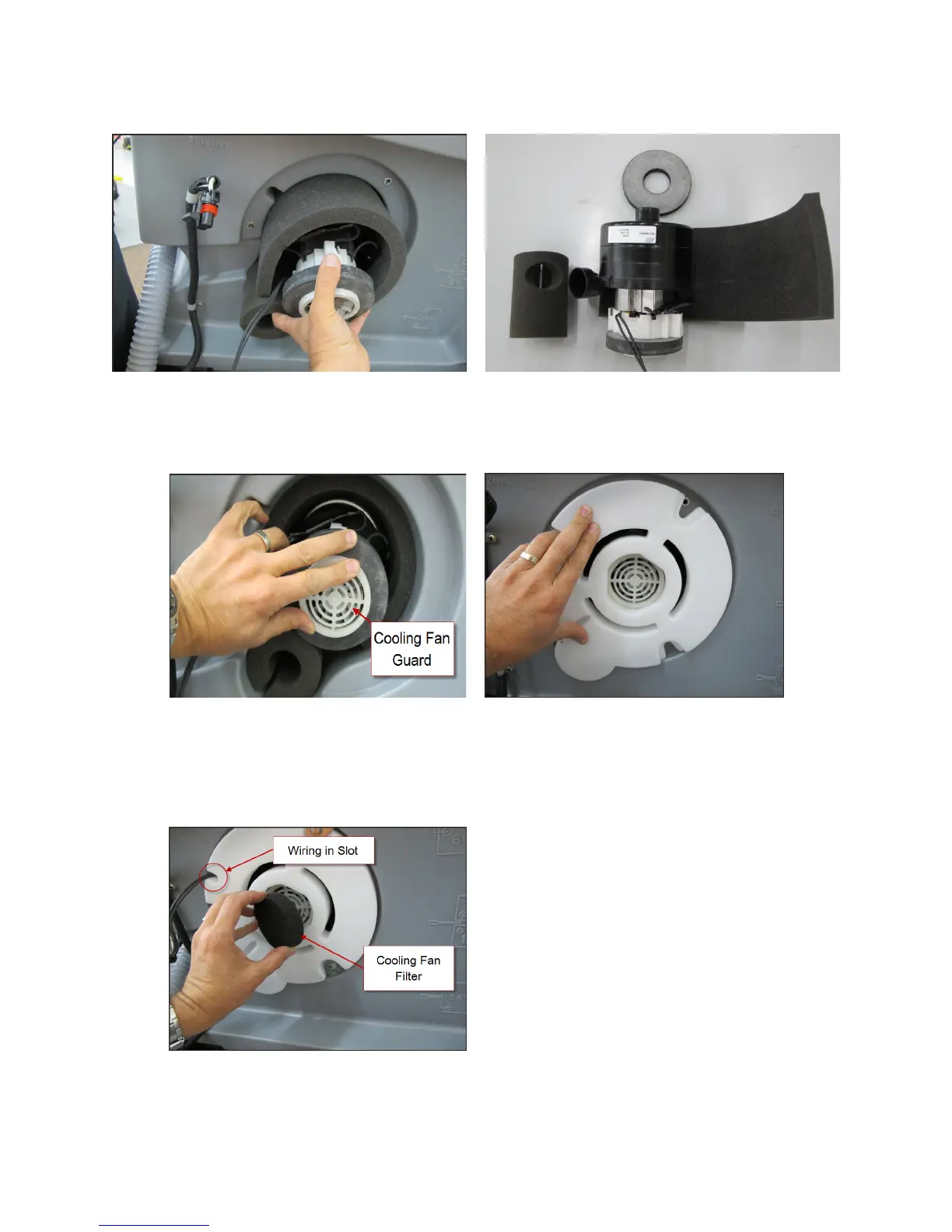

4. Remove vacuum motor and foam pieces. Pay aenon to how the foam pieces are posioned.
5. Reassemble in reverse order.
a. Install the cooling fan guard if it is not in place.
b. Take care to posion all the foam pieces correctly.
c. Make sure the ends of the vacuum motor are seated correctly. (If you have diculty seang all of the
pieces, remove the recovery tank and place it upside down so that the vacuum motor goes in vercally.
This way you will not be ghng gravity.)
d. Route the vacuum motor wiring lead in the slot of vacuum motor cover and install foam cooling fan lter.
To Next Page
