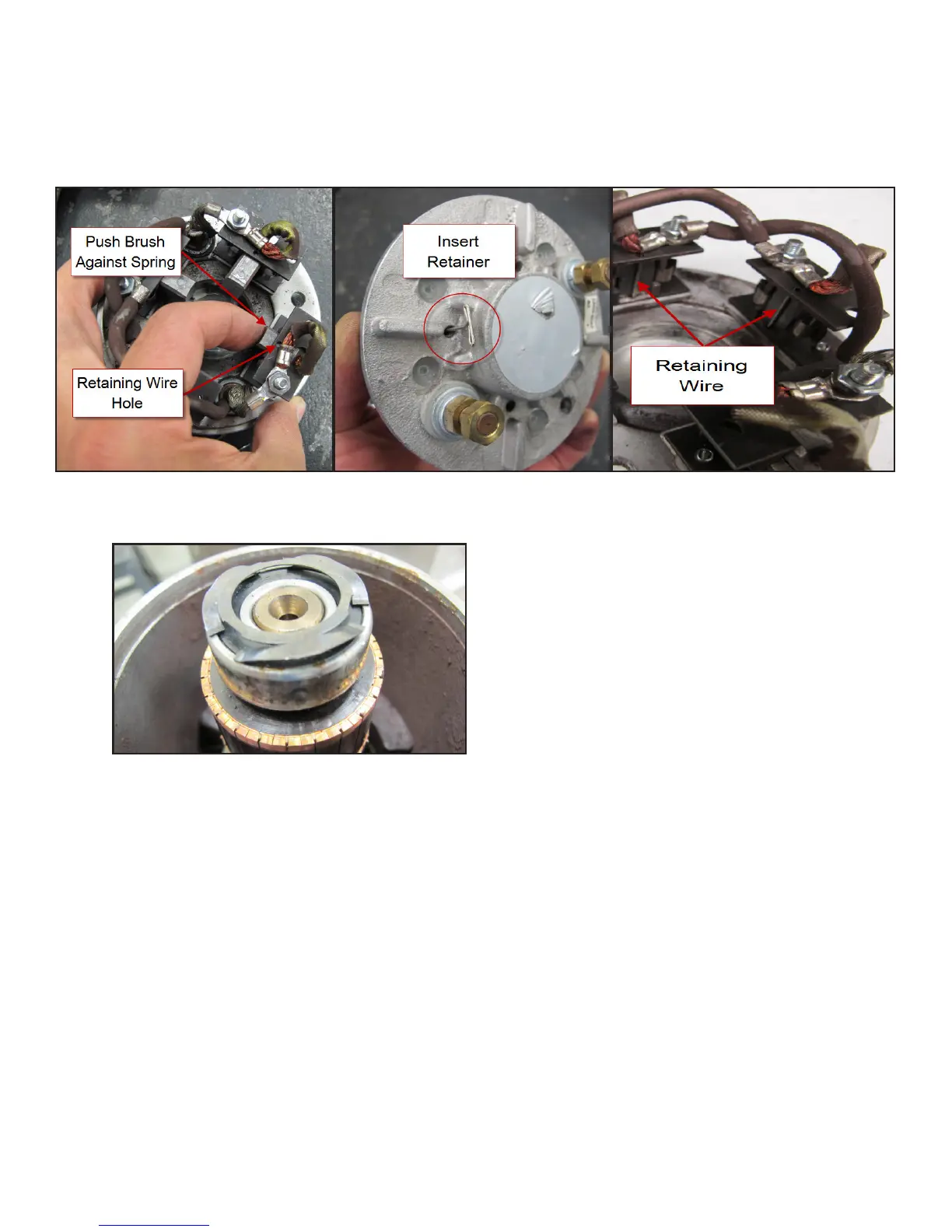

d. Push brush back against the spring and insert a s temporary retaining wire (paper clip) through the ac-
cess hole in the end cover. (Remove silicone sealer from the holes) The wire must go through the holes in
the brush holder just in front of the brush to hold the brush back against the spring pressure.
5. Install the other three brushes.
6. Install the wave washer.
7. Install the end cover in stages, aligning the marks made earlier.
a. Install it far enough so that the brushes will contact the commutator when the temporary retaining wires
are removed, then remove the wires.
b. Fully seat the end cover.
8. Install the through bolts.
9. Seal the retaining wire holes in the end cover with silicone sealant.
