Engine System - Petrol 100Service Manual – SW4000
Removal and Installation
Engine-Dynamotor Unit Disassembly/Assembly
Disassembly
1. Drive the machine on a level oor.
2. Turn the ignition key to “0” and engage the parking brake.
3. Open the engine compartment hood with the handle and fasten it with the support rod. Disconnect the
batteries.

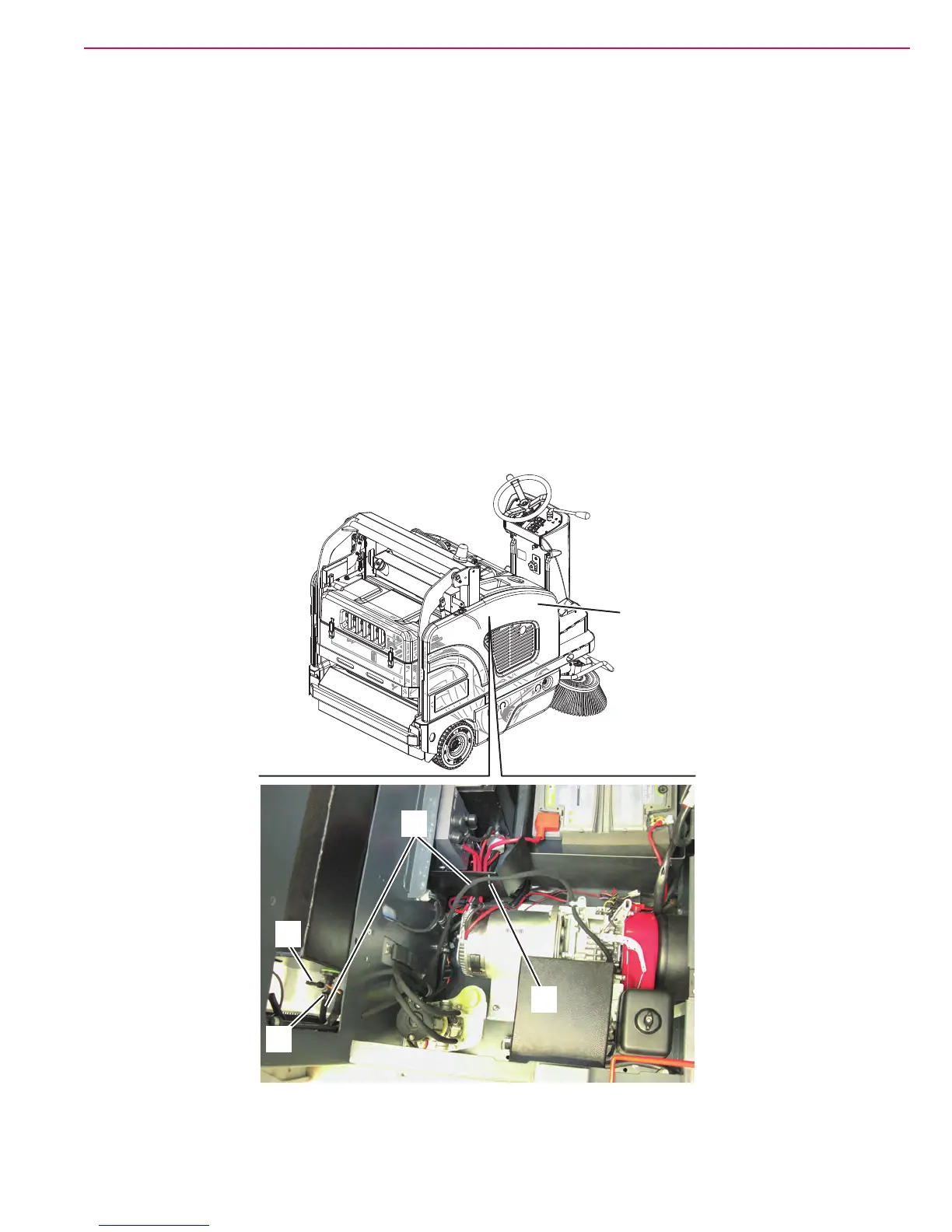

4. Remove the machine right side bulkhead (A), by lifting it to disengage it from the fasteners.
5. Close the fuel valve (B).
6. Open the clamp (C) and disconnect the fuel hose (D) from the valve. Close with sealing plugs the
disconnected ttings to prevent foreign materials from entering into the system.
7. Open the clamp (E) fastening the fuel hose (D).
A
E
D
B
C
P200137
To Next Page
