Nilfisk-Advance SW4000 Service Manual

General Information
15
Service Manual – SW4000

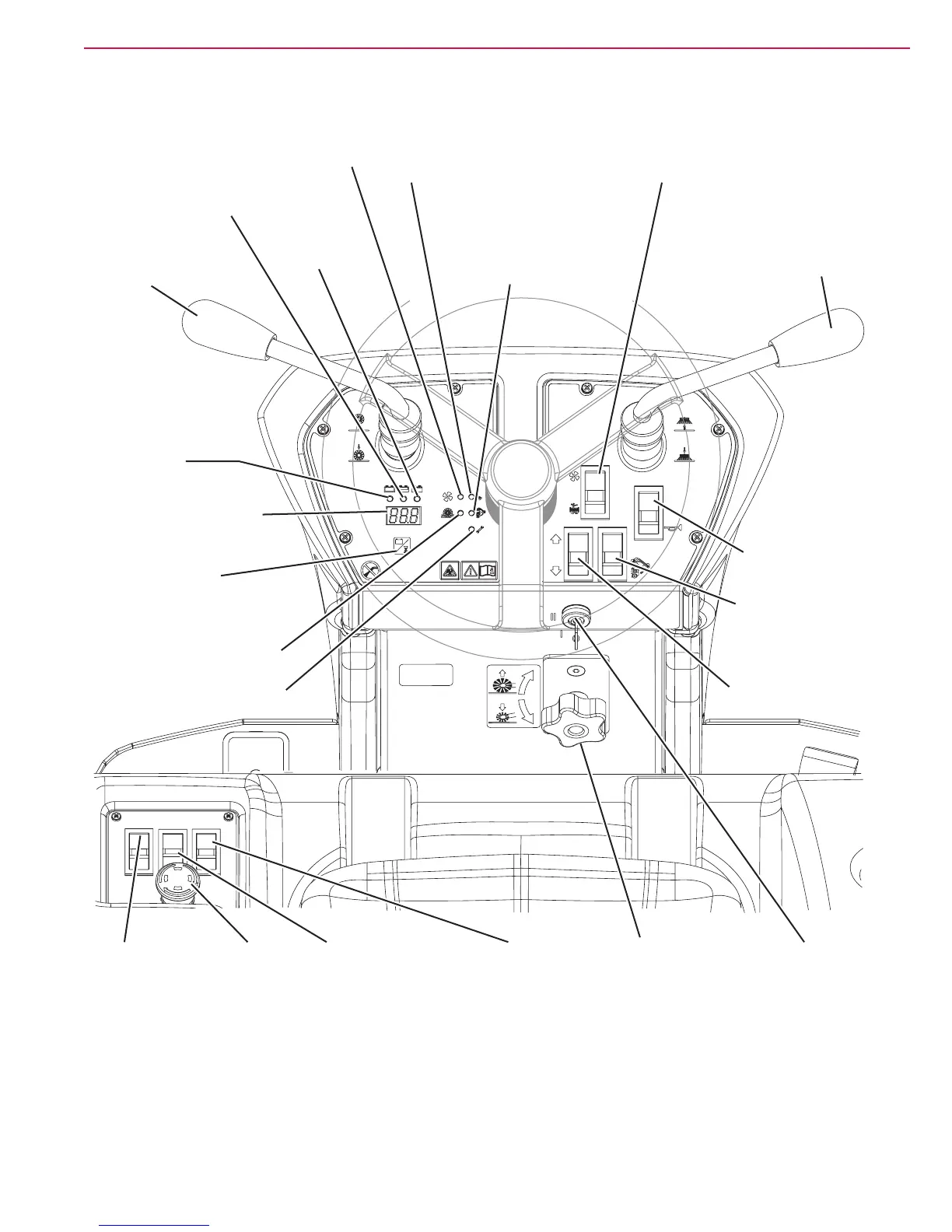

Control Panel (SW4000 Battery)
Ignition key
Main broom
height adjusting knob
Main broom
lifting/lowering lever
Side broom
lifting/lowering lever
Switch for:
• Vacuum system activation (upper part)
• Filter shaker activation (lower part)
Filter shaker switch
Hopper movement
enabling switch
Horn switch
Forward/reverse
gear switch
Display
Button:
• Working hours
• Battery voltage (V)
Charged
battery warning
light (green)
Semi-discharged battery
warning light (yellow)
Discharged
battery warning
light (red)
Vacuum system
warning light
(green)
Dust guard system
warning light
(green)
Hopper lifting
system warning
light (yellow)
Main broom overpressure
warning light (red)
Drive system malfunction
warning light (red)
Emergency
push-button
Working light
switch
Hopper
lifting/lowering
switch
Dust guard
system switch
P200086
