Nilfisk-Advance SW4000 Service Manual

General Information
19
Service Manual – SW4000

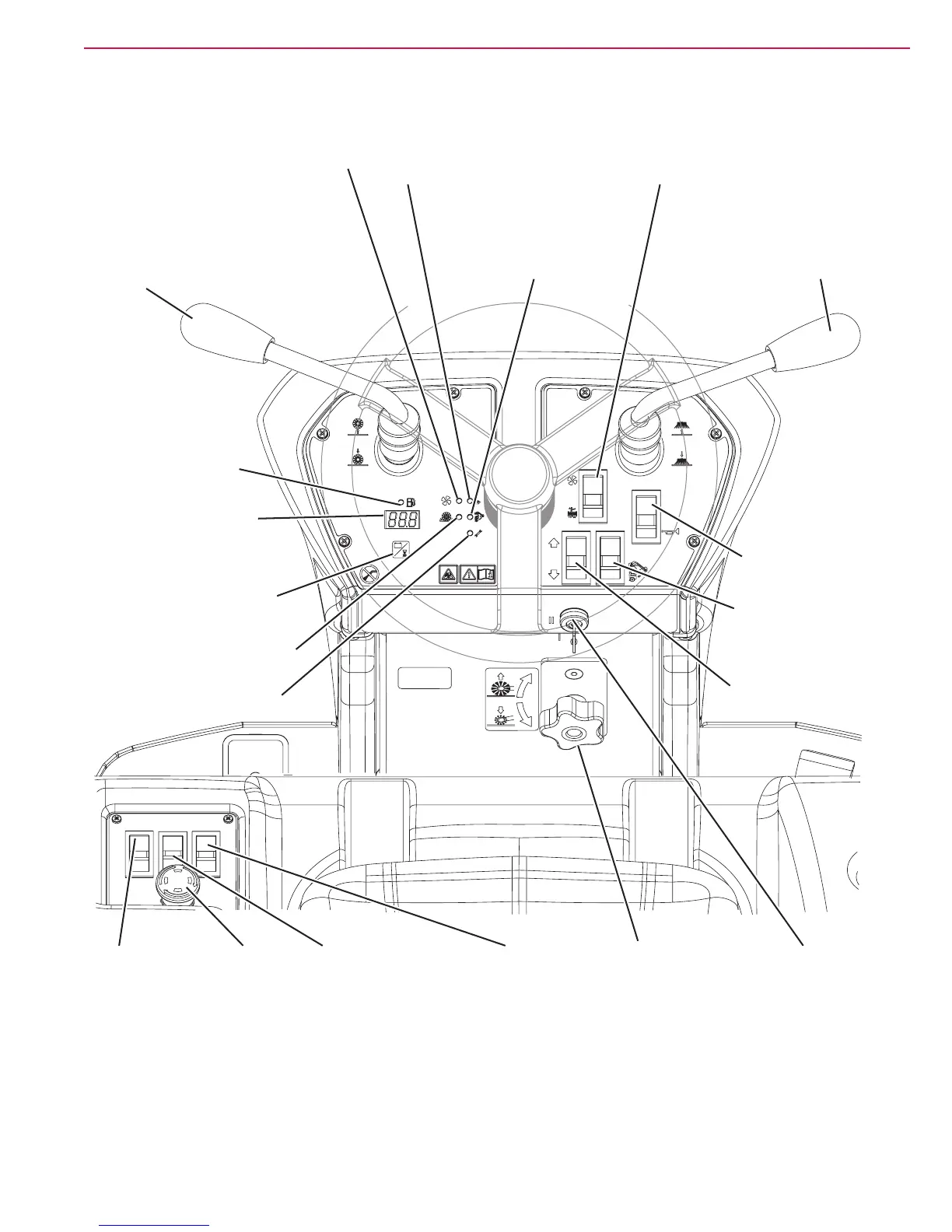

Control Panel (SW4000 Petrol/LPG)
Ignition
key
Main broom height
adjusting knob
Main broom
lifting/lowering
lever
Side broom
lifting/lowering lever
Switch for:
• Vacuum system activation (upper part)
• Filter shaker activation (lower part)
Filter shaker/vacuum system switch
Hopper movement
enabling switch
Horn switch
Forward/reverse
gear switch
Display
Button:
• Working hours
• Battery voltage (V)
Vacuum
system warning
light (green)
Dust guard
system warning
light (green)
Hopper lifting
system warning
light (yellow)
Main broom overpressure
warning light (red)
Drive system
malfunction warning
light (red)
Emergency
push-button
Working light
switch
Hopper lifting/lowering
switch
Dust guard
system switch
Fuel reserve
warning light (yellow)
