Service Manual – SW4000

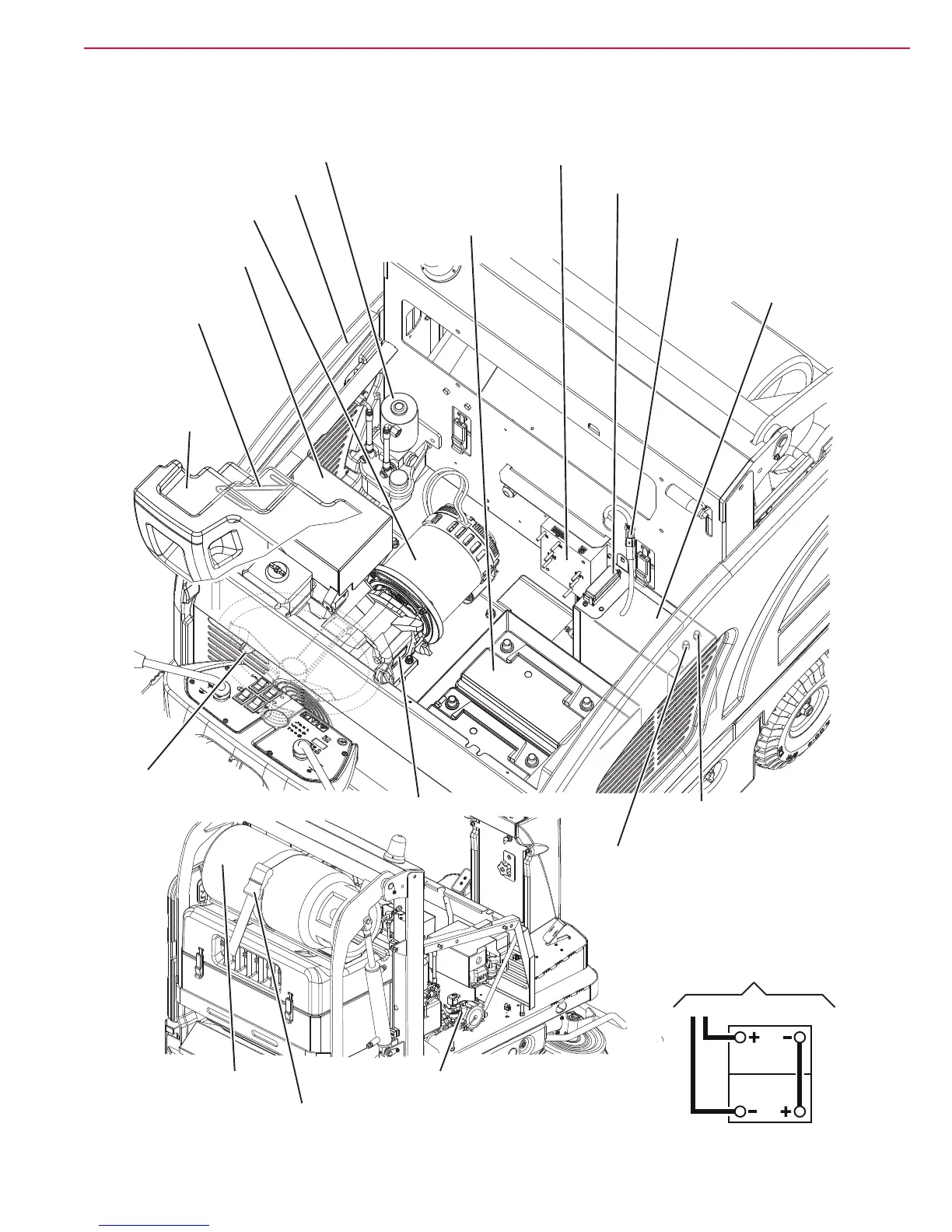

Machine Nomenclature (SW4000 Petrol/LPG) (Continues)
12V
12V
Engine
compartment
hood lifting
handle
Battery connection diagram
Right side broom motor
circuit breaker
Left side broom motor
circuit breaker
Fuseholder box
Electrical
component
box
Drive system electronic board
Hopper hydraulic
lifting system control unit
Open hood
safety rod
Vacuum system
motor connector
Engine
Dynamotor
Right side cover
Batteries
Choke lever
LPG tank (SW4000 LPG)
LPG tank fastening band (SW4000 LPG)
LPG adjuster solenoid valve (SW4000 LPG)
Engine serial number and model plate
P200089
