Wheel System, Traction 216Service Manual – SW4000
Brake Cable Disassembly/Assembly (Continues)
Assembly
10. Assemble the components in the reverse order of disassembly, and note the following:
• Adjust the brake according to the following procedure.

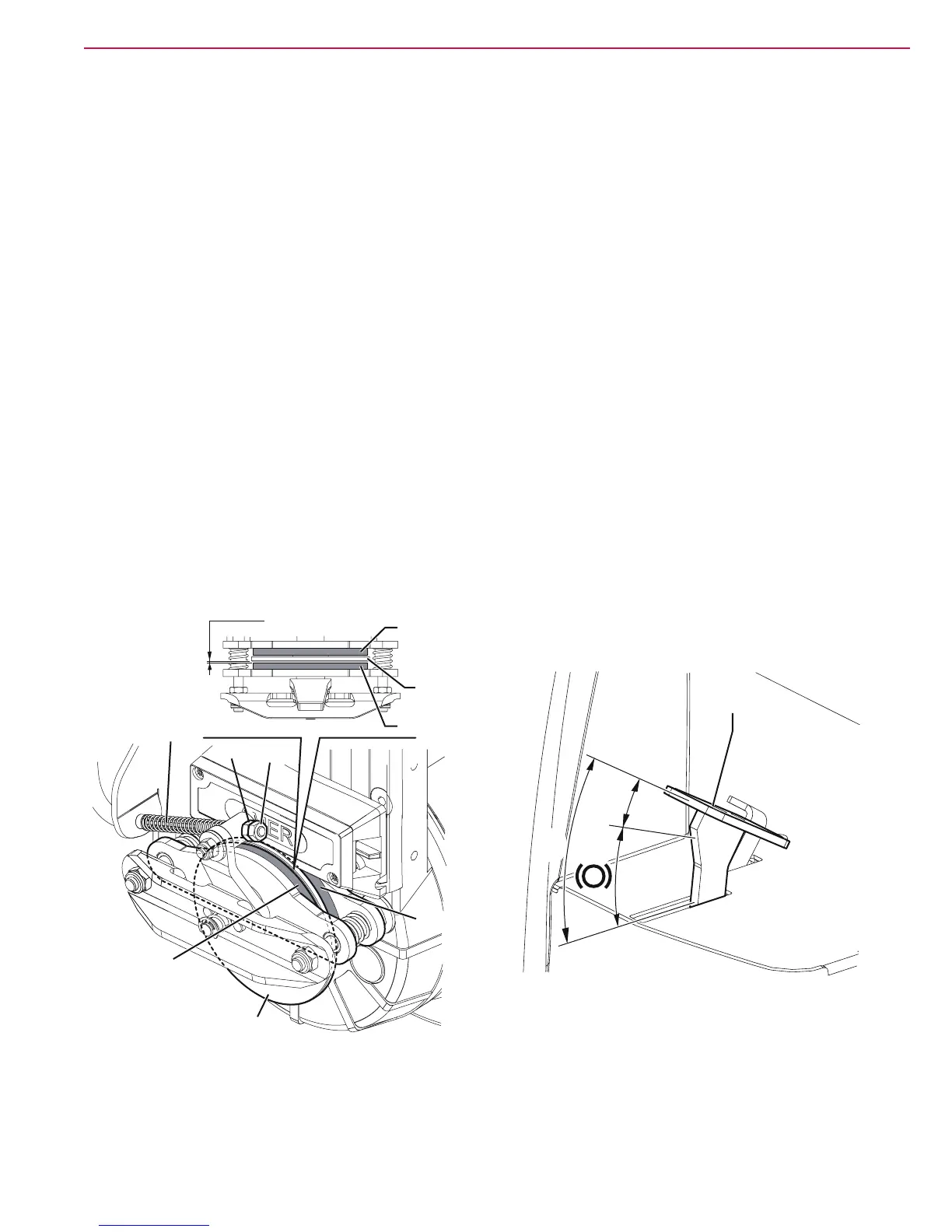

Brake Cable Adjustment
1. Ensure that the machine cannot move by placing opposite wedges on the rear wheels.
2. Steer the front wheel to the right, about 90°, so that the brake system becomes accessible.
3. Loosen the locknut (A) and the nut (B).
4. Turn the nut (B) until the distance between the braking masses (C) and the brake disc (D) is 0.5 mm (as
shown in the gure).
5. Tighten the locknut (A) with the nut (B).
6. Remove the wedges from the rear wheels.
7. Check the proper adjustment of the brake cable (E) by pushing the machine manually (do not apply the
brake).
8. Before starting to operate on the braking masses, check that the stroke of the brake pedal (F) is 1/3 or
less of the total stroke (G).
9. Perform brake tests and check the proper operation of the service and parking brake.
C
C
D
A
E
G
C
D
0,02 in
G
1/3
F
B
P200213
