Wheel System, Traction 215Service Manual – SW4000

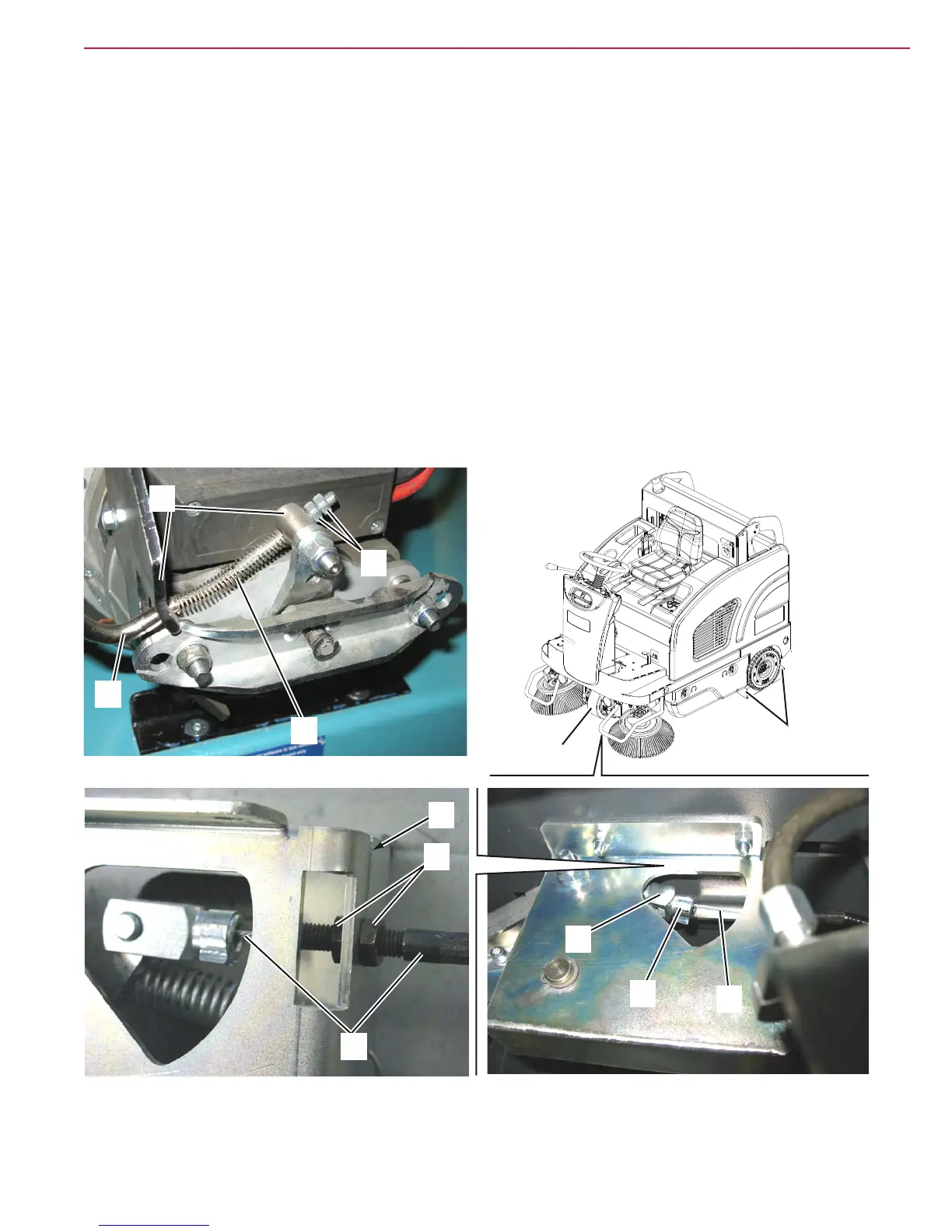

Brake Cable Disassembly/Assembly
Disassembly
1. If possible, place the machine on a hoisting system.
2. Turn the ignition key to “0”. Ensure that the machine cannot move by placing opposite wedges (A) on the
rear wheels.
3. Remove the left side broom, if equipped.
4. Steer the front wheel to the right, about 90°.
5. Unscrew nut and locknut (B) then remove the brake cable (C) from the brackets (D).
6. Under the brake pedal, loosen the nut-locknut (H) of the brake cable (C).
7. Remove the clip with the pin (F).
8. Disconnect from the brake pedal the terminal (G) of the cable (C) of the brake.
9. Remove the cable (C) through the slot (L).
E
B
D
C
A
I
C
F
G
L
H
C
P200200
