Nilfisk-Advance SW4000 Service Manual

Electrical System 83Service Manual – SW4000

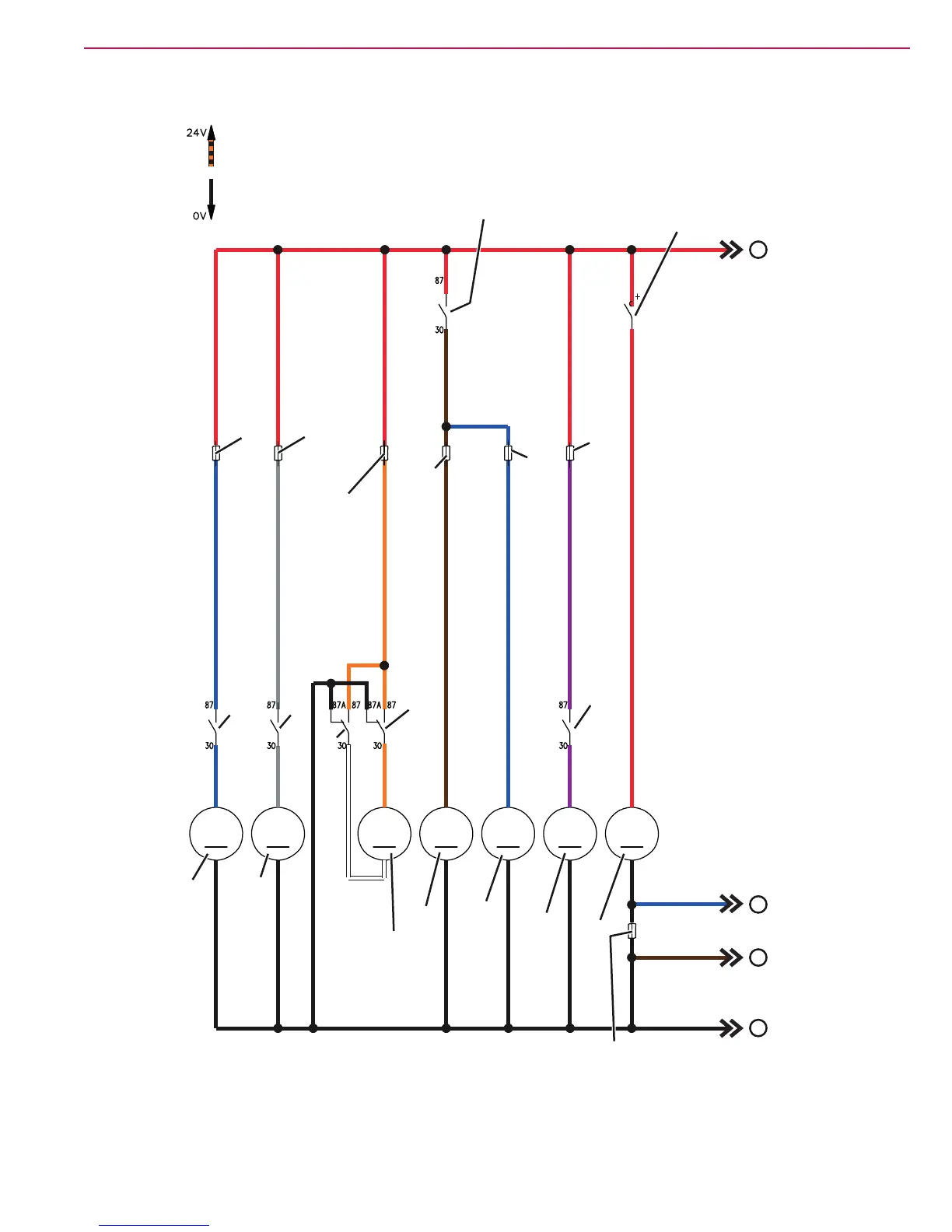

General Wiring Diagram (SW4000 Battery)
SIDE BROOM
RELAY (K5)
MAIN BROOM
ELECTROMAGNETIC
SWITCH (ES1)
VACUUM SYSTEM FUSE (F1)
FILTER SHAKER FUSE (F2)
RIGHT SIDE BROOM RESET FUSE (FR1)
LEFT SIDE BROOM RESET FUSE (FR2)
DUSTGUARD™ PUMP FUSE (F5)
HOPPER PUMP FUSE (F6)
DUSTGUARD™ PUMP RELAY (K6)
VACUUM SYSTEM RELAY (K1)
VACUUM SYSTEM
MOTOR
FILTER SHAKER MOTOR
HOPPER PUMP MOTOR
RIGHT SIDE BROOM MOTOR
LEFT SIDE BROOM MOTOR
DUSTGUARD™ PUMP MOTOR
MAIN BROOM MOTOR
FILTER SHAKER RELAY (K2)
HOPPER LIFTING RELAY (K3A)
HOPPER LOWERING RELAY (K3B)
MAIN BROOM
FUSE (FA)
A
B
C
F
POSITIVE SIGNAL
(FROM MACHINE ON “K4”)
BATTERY NEGATIVE TERMINAL
M1 M2 M3 M6 M7 M8 M4
P200127A
