Nilfisk-Advance SW4000 Service Manual

Control System 31Service Manual – SW4000

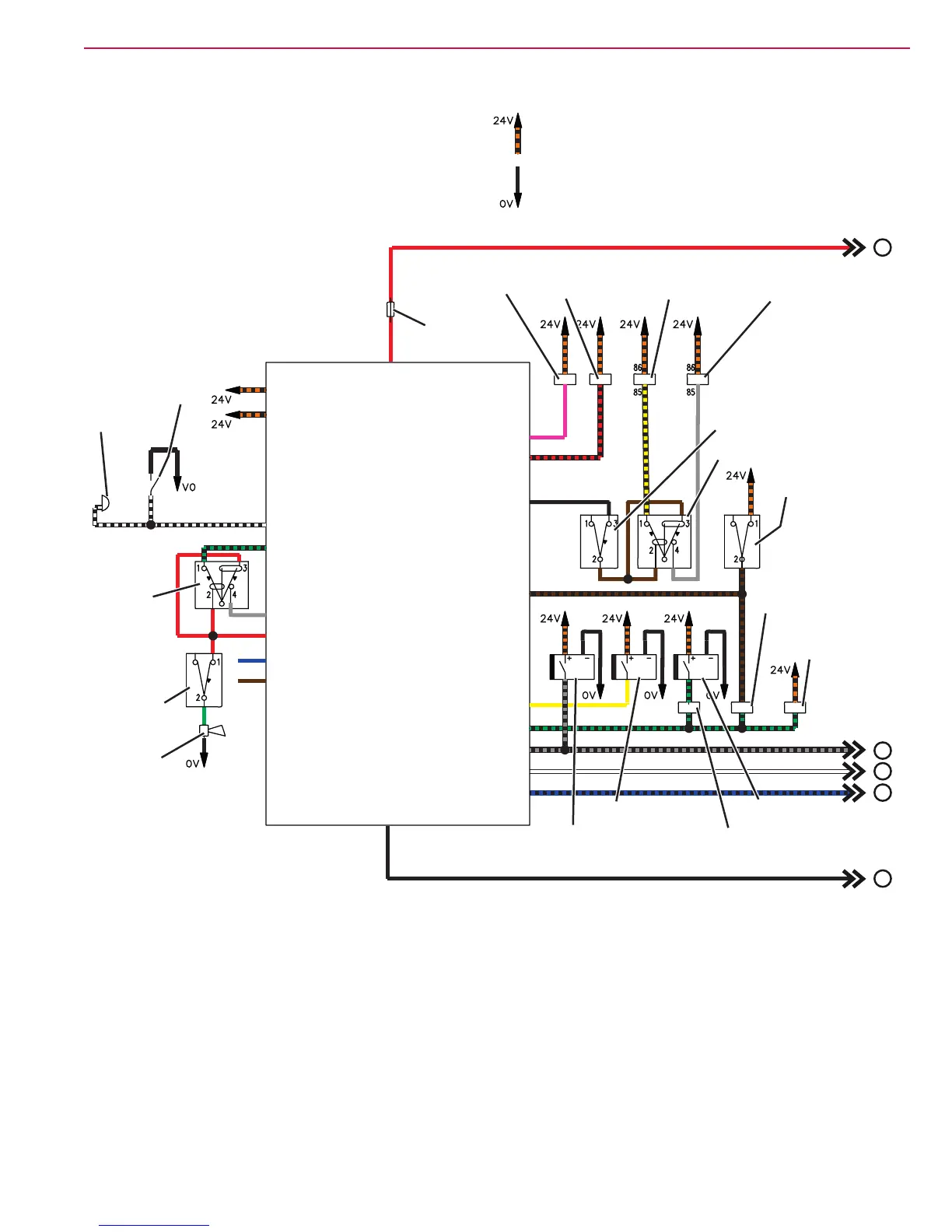

Wiring Diagram (SW4000 Battery)
DISPLAY
ELECTRONIC
BOARD FUSE (F3)
POSITIVE SIGNAL
(FROM MACHINE ON “K4”)
BATTERY NEGATIVE TERMINAL
FILTER SHAKER/
VACUUM SYSTEM
SWITCH (SW3)
HORN (HN)
HORN SWITCH (SW6)
J1.9 - Electronic board power supply -
J1.18 - Machine moving signal
J1.7 - Drive system electronic board diagnostic signal
J1.8 - Lifted hopper signal
J1.10 - Broom electromagnetic switch power supply
J1.2 - Broom activation lever signal
J1.5 - Broom fuse voltage drop reading -
J1.4 - Broom fuse voltage drop reading +
J2.1 - Control panel switch power supply (+)
J2.3 - Filter-shaker activation signal
J1.17 - Water pump activation signal
CONTROL PANEL ELECTRONIC BOARD (EB2)
J2.2 - Vacuum system activation signal
J2.4 - Control panel switch power supply (-)
J1.15 - Fire alarm signal
J1.13 - Key return
J1.12 - Filter-shaker relay power supply
J1.11 - Vacuum system relay power supply
J1.14 - Electronic board congurator return
J1.1 - Electronic board power supply +
REVERSE GEAR
BUZZER (BZ1)
HOPPER
TEMPERATURE
SENSOR (S4)
VACUUM SYSTEM
RELAY (K1)
FILTER SHAKER
RELAY (K2)
HOPPER LIFTING
RELAY (K3A)
HOPPER LOWERING
RELAY (K3B)
SIDE BROOM
RELAY (K5)
DUSTGUARD™
PUMP RELAY (K6)
DUSTGUARD™
SWITCH (SW8)
MAIN BROOM
ELECTROMAGNETIC
SWITCH (ES1)
HOPPER LIFTING
SENSOR (S1)
MAIN BROOM
LEVER SENSOR (S2)
SIDE BROOM
LEVER SENSOR (S3)
HOPPER LIFTING/LOWERING
SWITCH (SW5)
HOPPER ENABLING
SWITCH (SW4)
B
C
A
D
E
P200094A
