Side Broom System 191Service Manual – SW4000
Removal and Installation

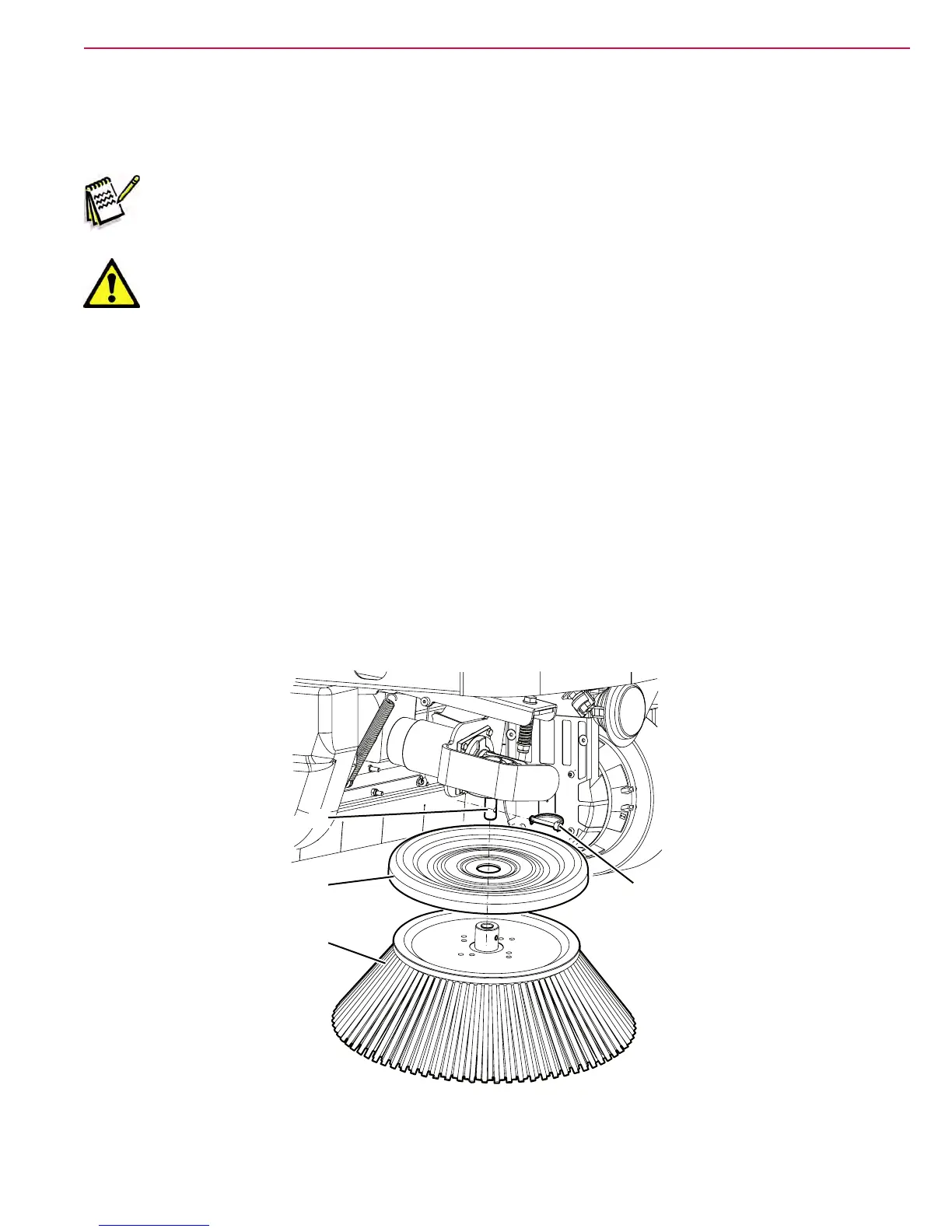

Side Broom Disassembly/Assembly
Note: Broomswithharderorsofterbristlesareavailable.Thisprocedureisapplicabletoall
types of brooms.
Warning! It is advisable to wear protective gloves when replacing the main broom because
there can be sharp debris between the bristles.
Disassembly
1. Drive the machine on a level ground and engage the parking brake.
2. Turn the ignition key to “0”.
3. Lift the side broom with the lever.
4. Disengage the fastener and remove the pin (A).
5. Remove the side broom (B) form the hub (D) and retrieve the protection ange (C).
Assembly
6. Install the protection ange (C) on the hub (D) and the side broom (B).
7. Insert the pin (A) and engage its fastener.
8. Check the side broom height.
A
B
C
D
P200187
