Nilfisk-Advance SW4000 Service Manual

Electrical System 86Service Manual – SW4000

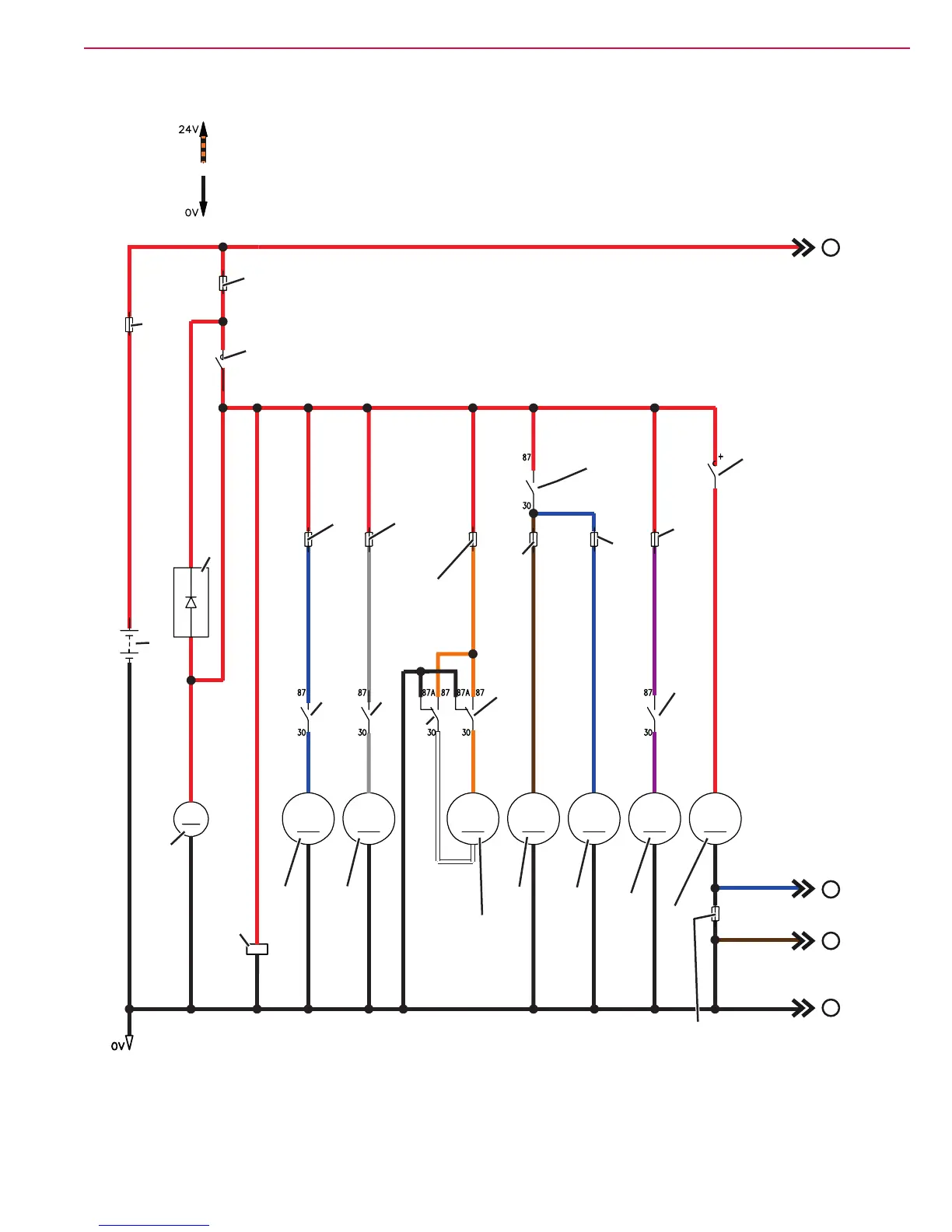

General Wiring Diagram (SW4000 Petrol - LPG)
SIDE BROOM
RELAY (K5)
CHARGE FUSE (FC)
ENGINE START
ELECTROMAGNETIC
SWITCH (ES2)
MAIN BROOM ELECTROMAGNETIC SWITCH (ES1)
VACUUM SYSTEM FUSE (F1)
FILTER SHAKER FUSE (F2)
RIGHT SIDE BROOM RESET FUSE (FR1)
LEFT SIDE BROOM RESET FUSE (FR2)
DUSTGUARD™ PUMP FUSE (F5)
HOPPER PUMP FUSE (F6)
DUSTGUARD™ PUMP RELAY (K6)
VACUUM SYSTEM RELAY (K1)
VACUUM SYSTEM MOTOR
DYNAMOTOR (M5)
ENGINE ON RELAY (K4)
FILTER SHAKER MOTOR
HOPPER PUMP MOTOR
RIGHT SIDE BROOM MOTOR
LEFT SIDE BROOM MOTOR
DUSTGUARD™ PUMP MOTOR
MAIN BROOM MOTOR
FILTER SHAKER RELAY (K2)
MAIN BROOM FUSE (FA)
MAIN FUSE (F0)
24V BATTERY (BAT)
DIODE (D1)
HOPPER LOWERING RELAY (K3B)
HOPPER LIFTING RELAY (K3A)
B
C
A
F
POSITIVE SIGNAL
(FROM MACHINE ON “K4”)
BATTERY NEGATIVE TERMINAL
M1
G
M2 M3 M6 M7 M8 M4
P2001272A
