Nilfisk-Advance SW4000 Service Manual

Electrical System 85Service Manual – SW4000

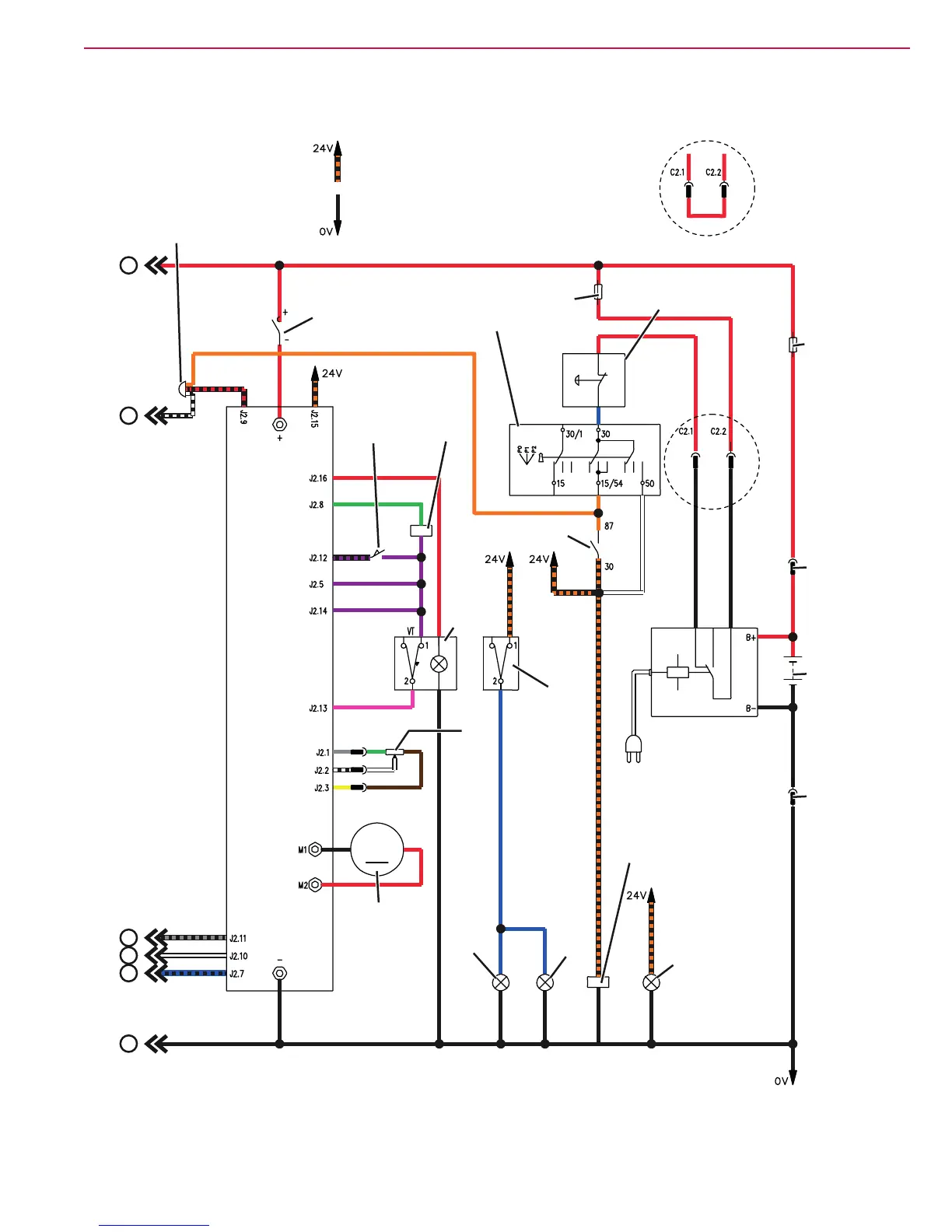

General Wiring Diagram (SW4000 Battery)
BATTERY CHARGER
(CH)
WITHOUT ON BOARD BATTERY CHARGER
24V BATTERY (BAT)
REVERSE GEAR
BUZZER (BZ1)
POSITIVE SIGNAL
(FROM MACHINE ON “K4”)
BATTERY NEGATIVE TERMINAL
CONNECTOR + (C1)
CONNECTOR - (C1)
MAIN
FUSE (F0)
FLASHING
LIGHT (BE)
LINE ELECTR. SWITCH (ES0)
LINE ELECTROMAGNETIC
SWITCH (ES0)
KEY CIRCUIT
FUSE (F4)
EMERGENCY
PUSH-BUTTON (SW0)
IGNITION KEY
(SW1)
DRIVER’S SEAT SAFETY MICROSWITCH (SW7)
WORKING LIGHT (L1)
WORKING LIGHT (L2)
DRIVING
WHEEL
ACCELERATOR PEDAL (R1)
MACHINE ON
RELAY (K4)
MACHINE ON
RELAY (K4)
WORKING LIGHT SWITCH (SW9)
FORWARD/REVERSE GEAR SWITCH (SW2)
DRIVE SYSTEM ELECTRONIC BOARD (EB1)
B
C
D
E
A
F
M0
P200127C
