Steering System 157Service Manual – SW4000
Steering Chain Disassembly/Assembly
Disassembly
1. If possible, place the machine on a hoisting system.
2. Turn the ignition key to “0” and engage the parking brake.

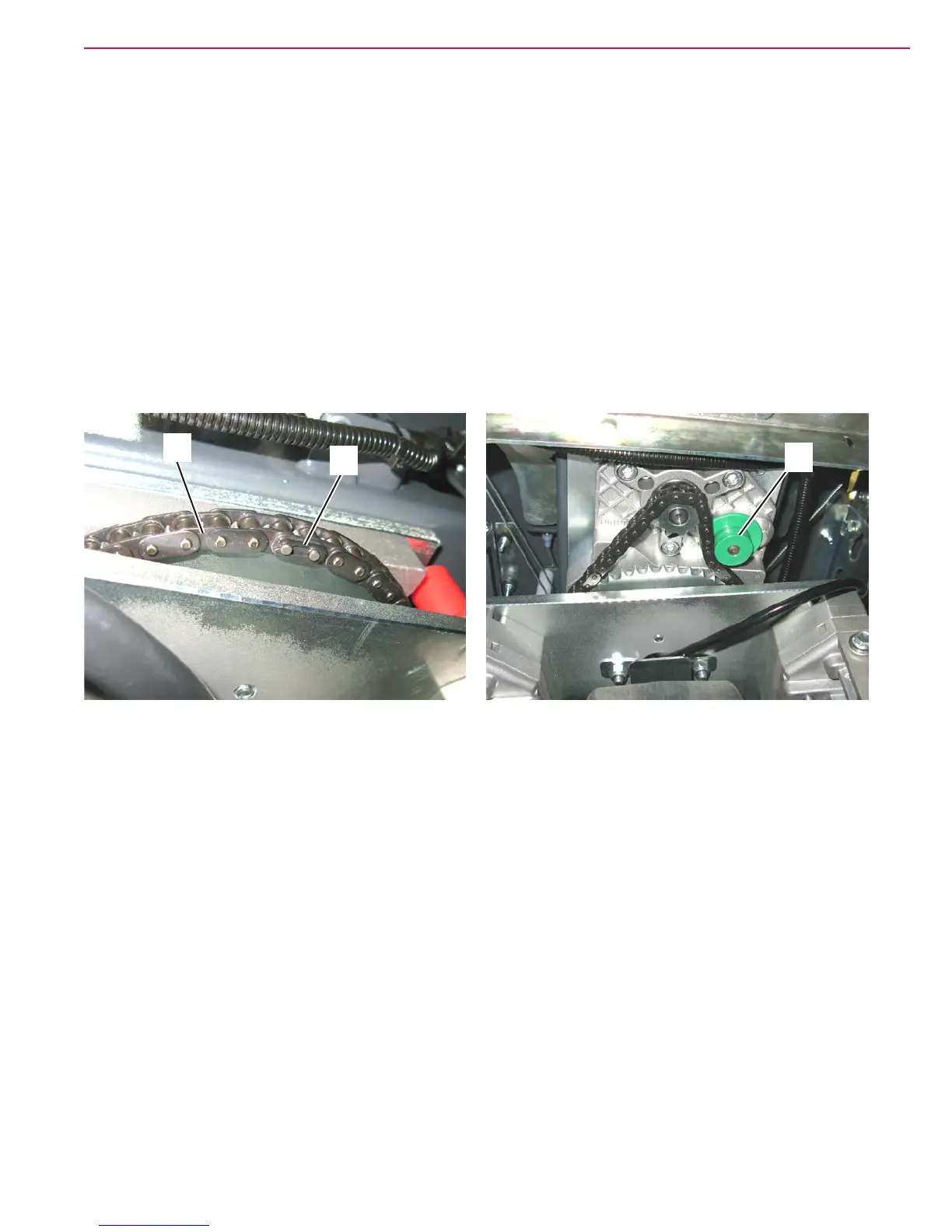

3. Steer the front wheel until the junction link (A) of the steering chain (B) becomes visible.
4. Disengage the link (A) and remove the chain (B).
5. Retrieve the chain tensioner pulley (C). Check the operation of the chain tensioner pulley (C).
Assembly
6. Assemble the components in the reverse order of disassembly, and note the following:
• Do not lubricate the chain (B), otherwise dust and debris will stick to the lubricant.
A
B
C
P200167
