Nilfisk-Advance SW5500 User Manual

Name: Nilfisk-Advance SW5500
Brand: Nilfisk-Advance
Rating: 4 (1 reviews)

46 pages

To Next Page

To Previous Page

INSTRUCTIONS FOR USE ENGLISH

14 664 7 2000 - S W 5 5 00, F L O O R T E C R 9 8 5 17

03/2016

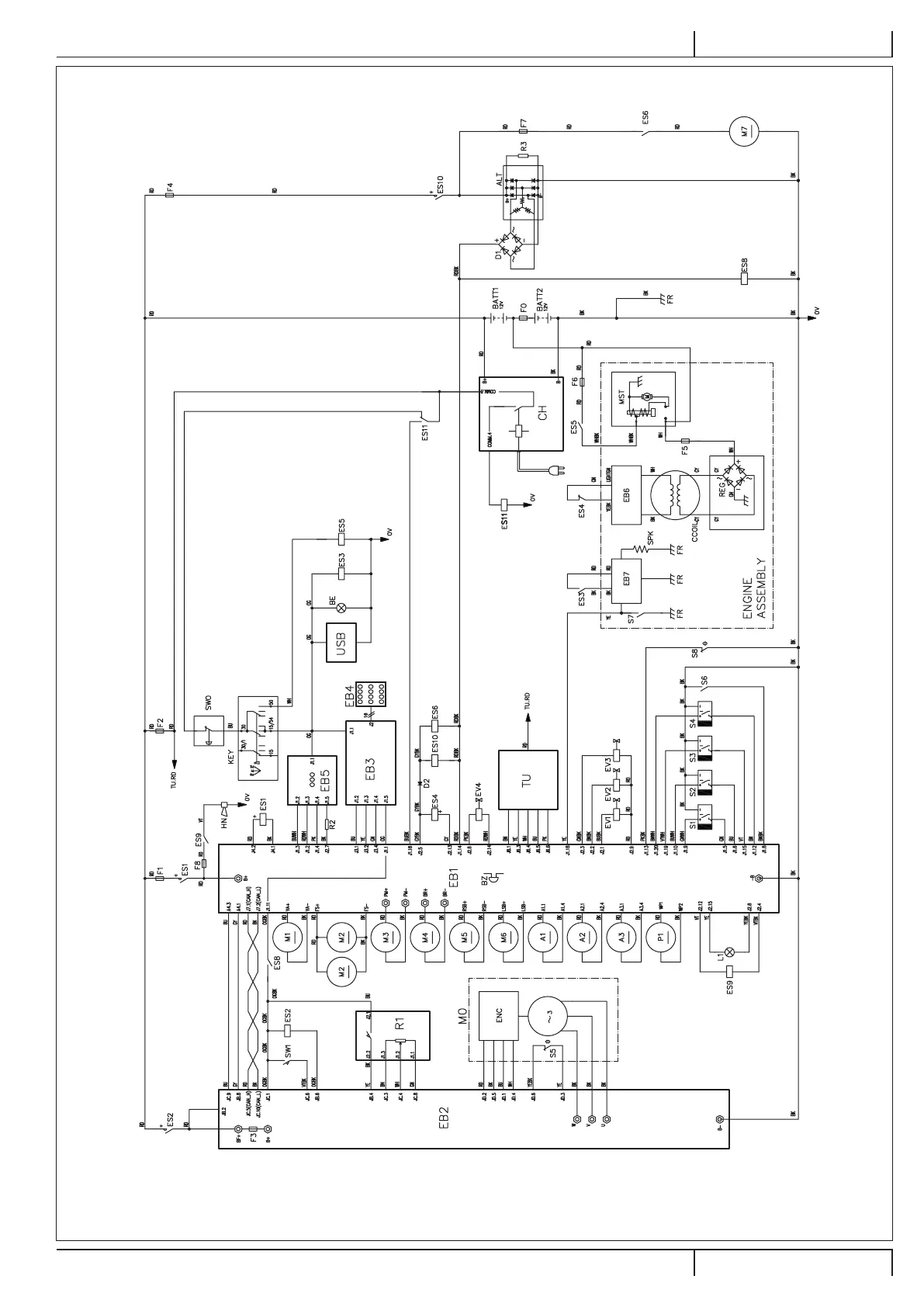

LPG VERSION WIRING DIAGRAM (Continues)

P 1009 23

Table of Contents3
Introduction4
Manual Purpose and Contents4
Target4
How to Keep this Manual4
Declaration of Conformity4
Identification Data4
Other Reference Manuals5
Spare Parts and Maintenance5
Changes and Improvements5
Operation Capabilities5
Conventions5
Unpacking/Delivery5
Safety5
S I B L E S y M B O L S O N T H E M a C H I N E6
Symbols that Appear on this Manual6
General Instructions6
Machine Description10
Machine Structure10
Control Panel13
Accessories/Options14
Technical Data14
Diesel Version Wiring Diagram16
Lpg Version Wiring Diagram18
Use20
Fuel20
Before Machine Start-Up21
Starting and Stopping the Machine21
Parking Brake22
Machine Operation23
Hopper Dumping24
After Using the Machine25
Machine Long Inactivity25
Maintenance25
Scheduled Maintenance Table25
Multifunction Display Service Screens27
Main Broom Height Check and Adjustment29
Main Broom Replacement30
Side Broom Height Check and Adjustment31
Side Broom Replacement32
Panel Dust Filter Cleaning and Integrity Check33
Skirt Height and Operation Check34
Dustguard™ System Water Filter Cleaning (Optional)35
Hydraulic System Oil Level Check35
ENGINE OIL LEVEL CHECK and OIL REPLACEMENT (DIESEL Version)36
E N G I N E O I L L E V E L C H E C K a N D O I L R E P L a C E M E N T ( L P G R S I O N )37
ENGINE OIL FILTERS CHECK/CLEANING (DIESEL Version)38
E N G I N E a I R F I L T E R S C H E C K /C L E a N I N G ( D I E S E L a N D L P G R S I O N )39
E N G I N E S P a R K P L U G C H E C K /R E P L a C E M E N T ( L P G R S I O N )40
BATTERY CHARGING (Only for Version with Optional Hybrid KIT Installed)41
F U S E C H E C K /R E P L a C E M E N42
Safety Functions42
E M E R G E N C y P U S H - B U T T O42
D R I V E R ' S S E a T M I C R O S W I T C42
A N T I - S K I D S a F E T y S y S T E42
M a C H I N E a N G L E S E N S O42
H O P P E R P O S I T I O N S E N S O42
H O P P E R S a F E T y V a L V42
Troubleshooting43
Scrapping44
