Nilfisk-ALTO SCRUBTEC R 466 Service Manual

Electrical System 47Service Manual – SCRUBTEC R466 ... FOCUS II Micro Rider

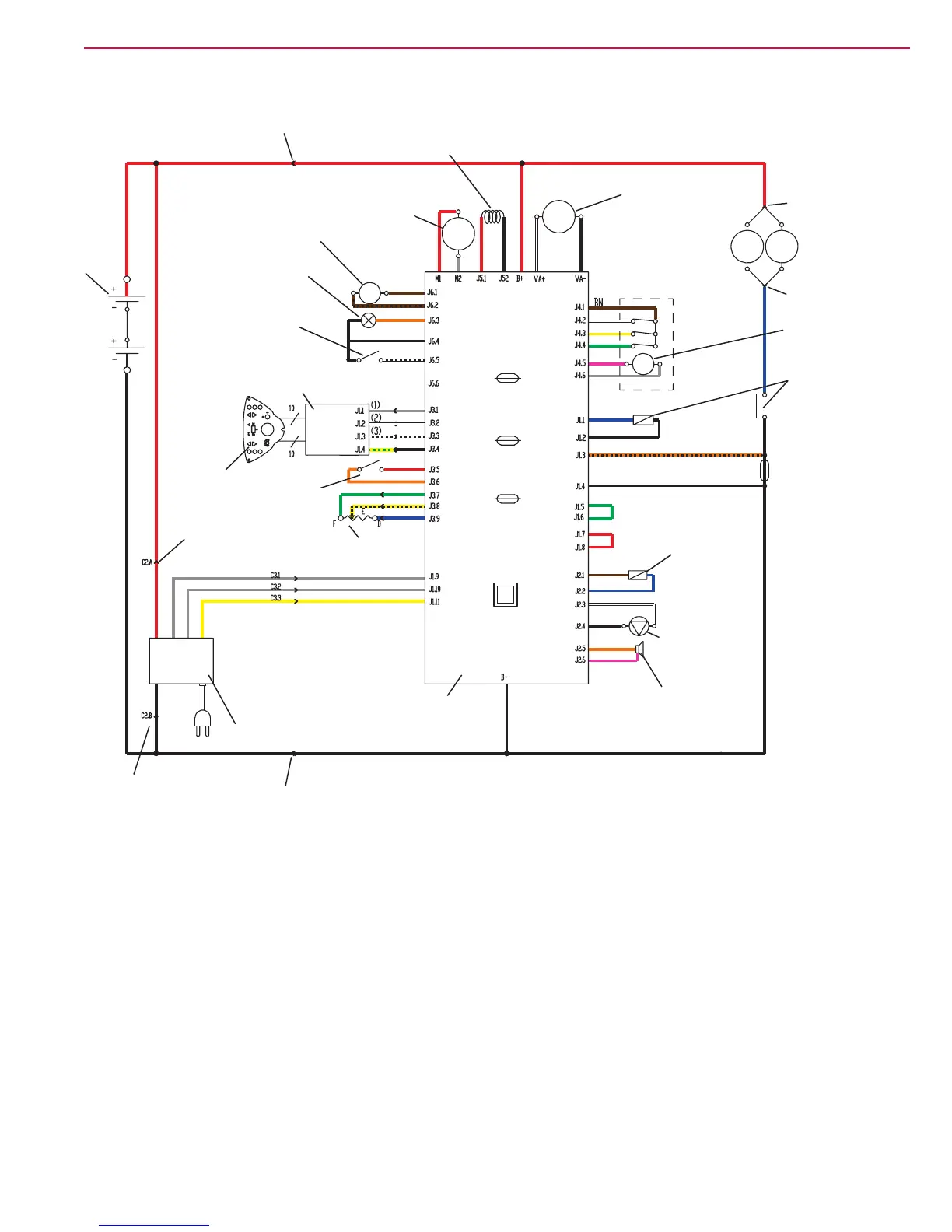

General Wiring Diagram
24 V battery
box (BAT)
Brush deck fuse
(F1)
Brush motor
electromagnetic
switch (ES1)
Brush deck
connector (C4+)
Brush deck
connector (C4-)
Main electronic
board fuse (F2)
Function
electronic
board (EB1)
Display
electronic
board (EB2)
Dashboard
instrument
electronic
board (EB3)
Signal circuit
fuse (F3)
Actuator
fuse (F4)
Flashing
light (BE)
Ignition
switch (K1)
Vacuum
system
motor (M2)
Drive
system
motor (M3)
Electromagnetic
brake (BRK)
Detergent pump
(M4)
Brush deck
actuator motor (M5)
Solenoid valve
(EV1)
Drive pedal
potentiometer
(RV1)
Squeegee
actuator motor (M6)
Driver's seat
microswitch
(SW1)
Brush
motor (M1.1,2)
Reverse gear
warning buzzer/
horn (BZ1)
Battery connector (C1+)
Battery connector (C1-)
Battery charger
main connector (C2)
Battery charger
main connector (C2)
Battery
charger (CH)
Detergent/clean
water level
pressure switch
(PR1)
(*)
(**)
m0
m1
m2
P100703
(*) Only for versions with disc brush deck
(**) For Nilsk-Alto scrubbers version only

Nilfisk-ALTO SCRUBTEC R 466 Specifications

General

Model	SCRUBTEC R 466
Voltage	24 V
Battery Voltage	24 V
Weight	200 kg
Machine weight	200 kg
