Maintenance and Adjustments

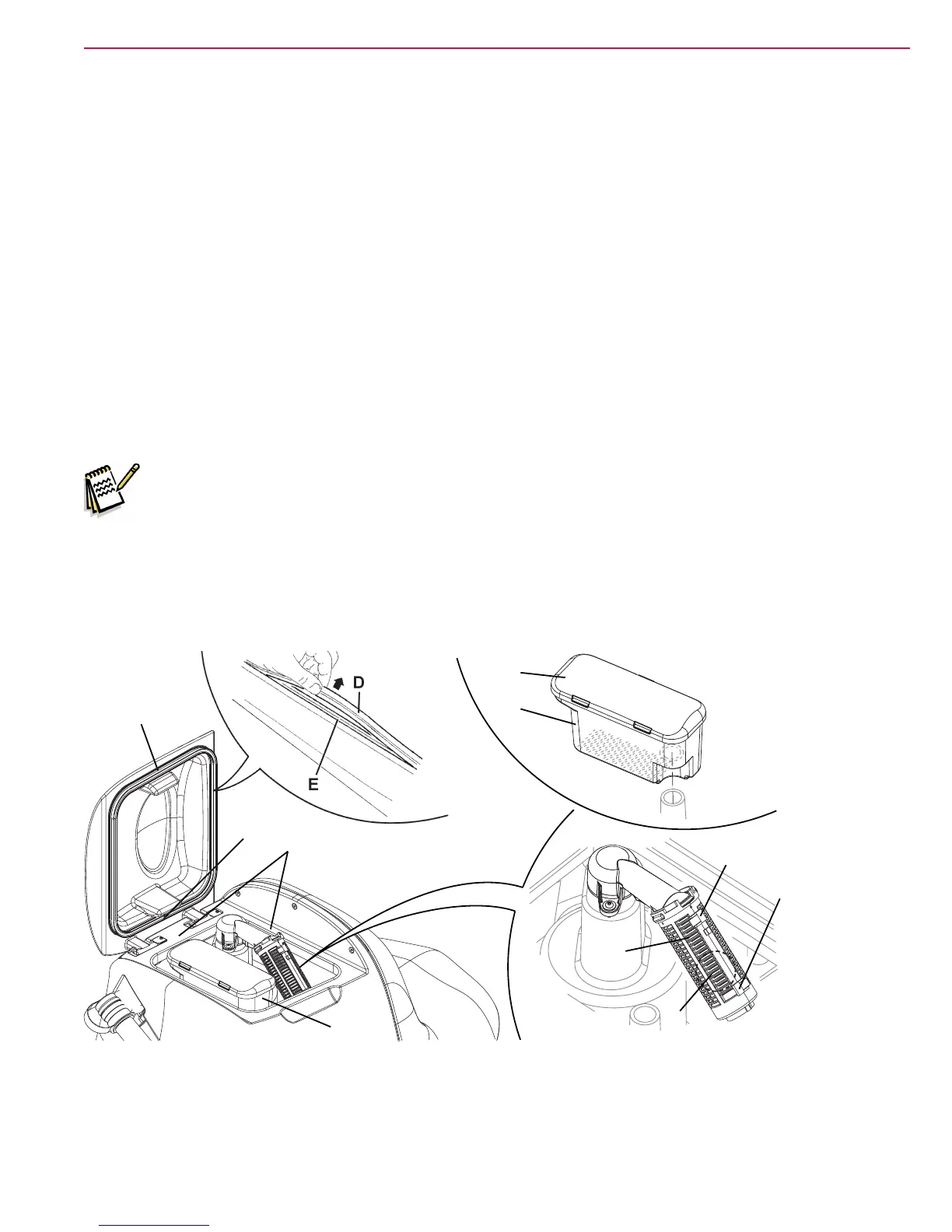

Recovery Tank Cleaning
1. Drive the machine to the appointed disposal area.
2. Turn the ignition key to “0”.
3. Open the recovery tank cover.
4. Clean and wash the cover and the recovery tank with clean water.
5. Empty the recovery tank with the drain hose.
6. Clean the vacuum grid, release the fasteners (A), open the grid (B) and recover the oat (C) then clean
carefully and reinstall.
7. Clean the container with debris collection grid (G), remove the container, remove the cover (H), then
clean carefully and reinstall the vacuum hose.
8. Check the tank cover gasket (D) for integrity.
Note: The gasket (D) creates vacuum in the tank that is necessary for vacuuming the recovery
water.
9. If necessary replace the gasket (D) by removing it from its housing (E). When assembling the new
gasket, install the joint (F) in the lower area, as shown in the gure.
10. Check that the seating surface (I) of the gasket (D) is integral, clean and adequate for the gasket itself.
11. Close the recovery tank cover.
A
C
B
F
D
A
G
H
I
G
P100708
