True wind software add-on
A code is required to activate the true wind mode function. Please contact your nke
dealer to get this code. The code number is linked to each Gyropilot 2 processor,
your dealer will need your processor’s serial number to issue the code for the
software add-on. This serial number can be found on a label on the processor itself
or in the true wind menu of the Multigraphic.

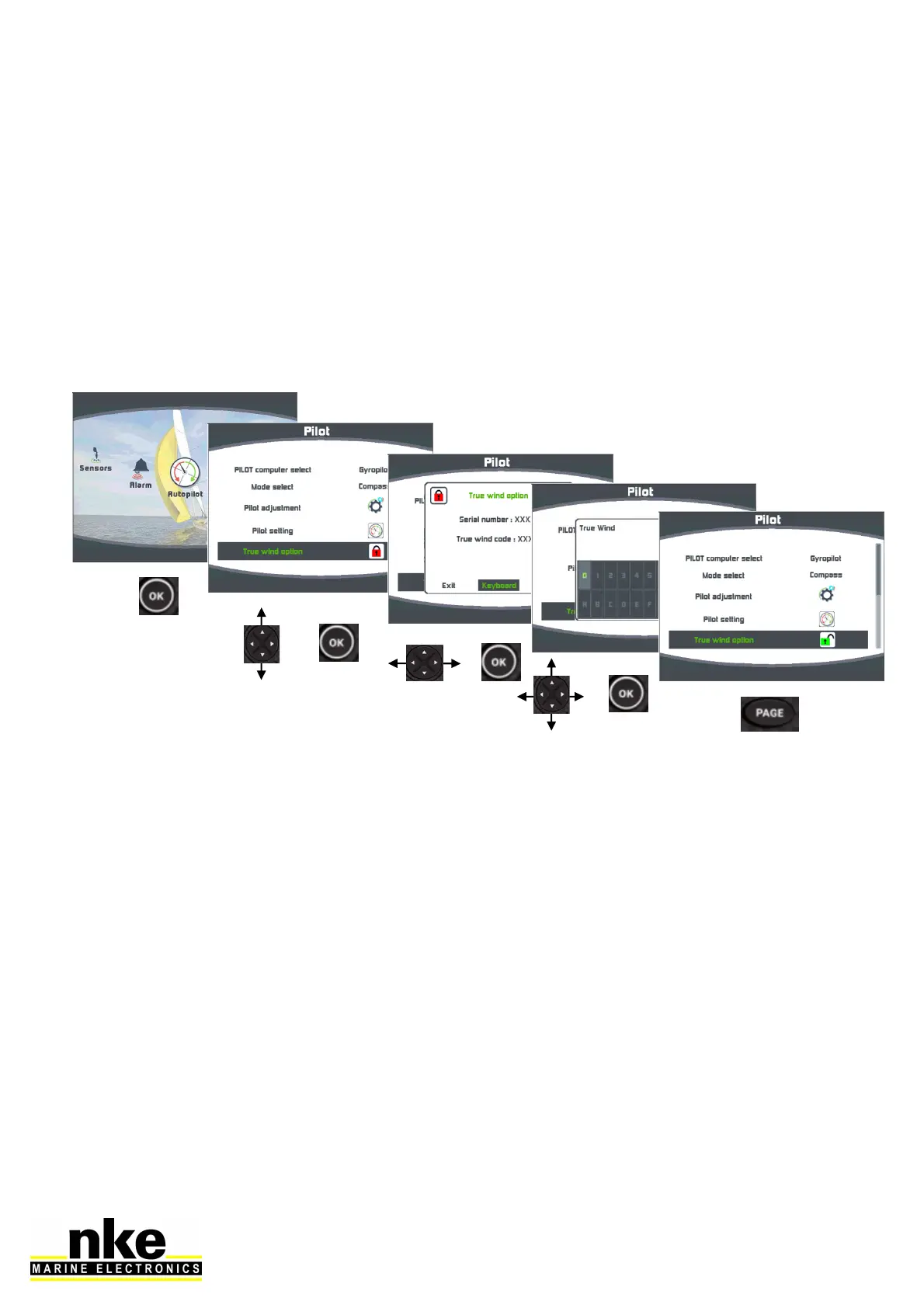

Activation of the true wind add-on:
The hexadecimal code is entered with the virtual keyboard. Once the function is
activated the little padlock symbol will turn open and green.
Apparent wind mode
This mode requires a speed sensor, a compass sensor and a wind sensor.
With the apparent wind mode the pilot uses data from the mast head unit through
the Topline bus to steer the boat on a set apparent wind angle. This mode is mainly
used while sailing upwind.
Compass mode
This mode requires a speed sensor and a compass sensor.
With the compass mode the pilot uses the compass heading data from the Topline
bus to steer the boat on a set heading.
Rudder mode
The rudder mode allows the rudder to be set at a fixed angle. The value can be
between – 35° and + 35° to the mid-ship position.
