1 OVERVIEW
Thank you for purchasing the nke Multigraphic.
The Multigraphic features a 5.7 inch colour screen. A transflective polarizer
enhances daylight reading and integrated LED backlighting ensures clear readability
at night. The backlight intensity can be automatically adjusted or user adjusted.
The Multigraphic is a multifunction device allowing:
• Control of the nke Gyropilot2 or Pilote HR
• Display of data from the sensors connected to the Topline bus in digital,
analogue or graphic formats and access to setup parameters and alarms.
• Display and processing of A.I.S. target data in a 12 mile range for collision
avoidance, providing there is an A.I.S. receiver connected.
• Interface to NMEA 183 devices to provide relevant data to the Topline bus.
2 OPERATION
The Multigraphic offers 10 buttons to control the display, access the menus and
control the autopilot.

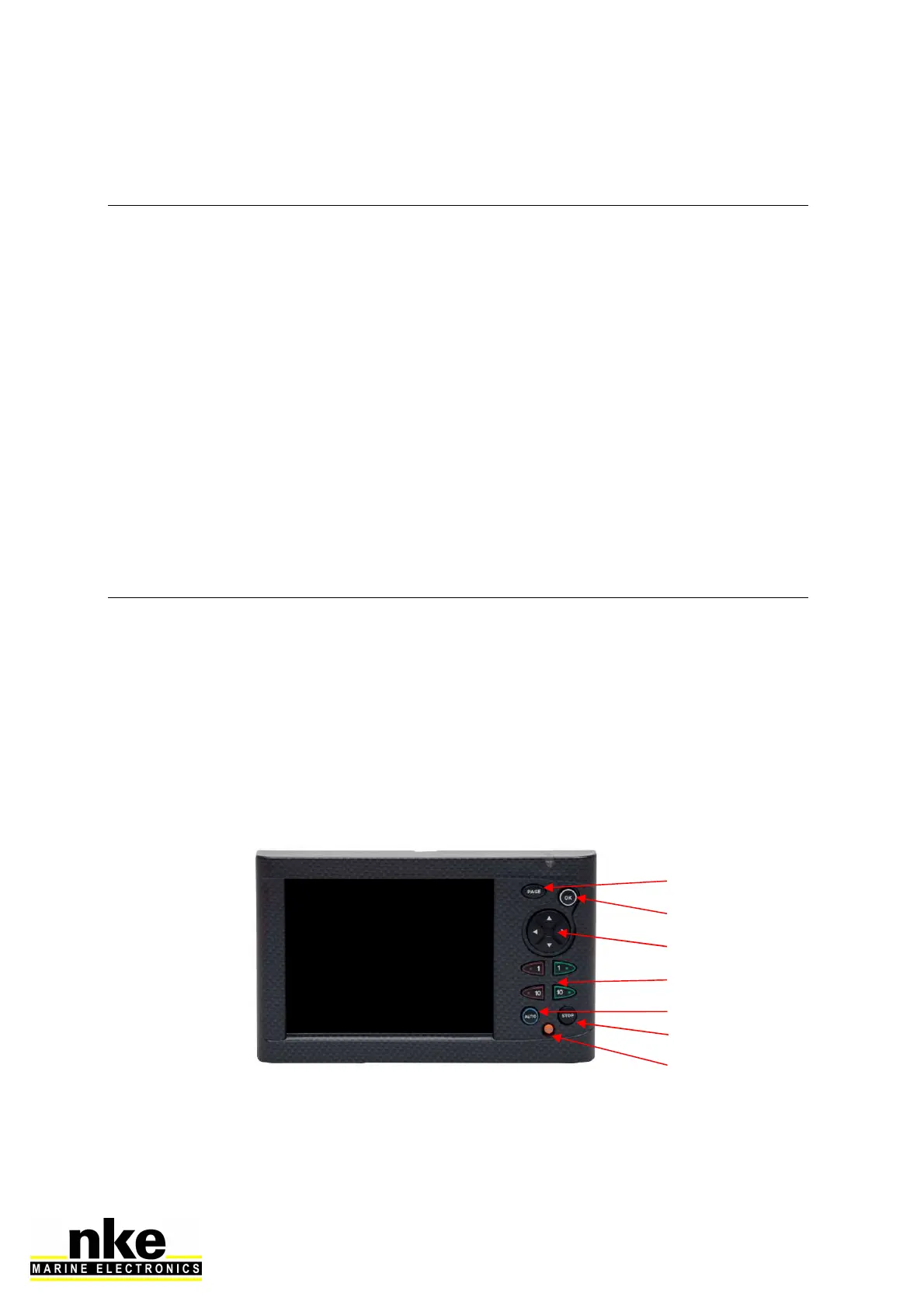

2.1 Key descriptions
OK
CURSER PAD
AUTOPILOT CONTROL
STOP
MOB
To Next Page
